Toyota COROLLA 车身镶条 — Figure 7507

Toyota COROLLA EPC diagram 7507, 车身镶条, with 1 images and 8 PNC and OE references.

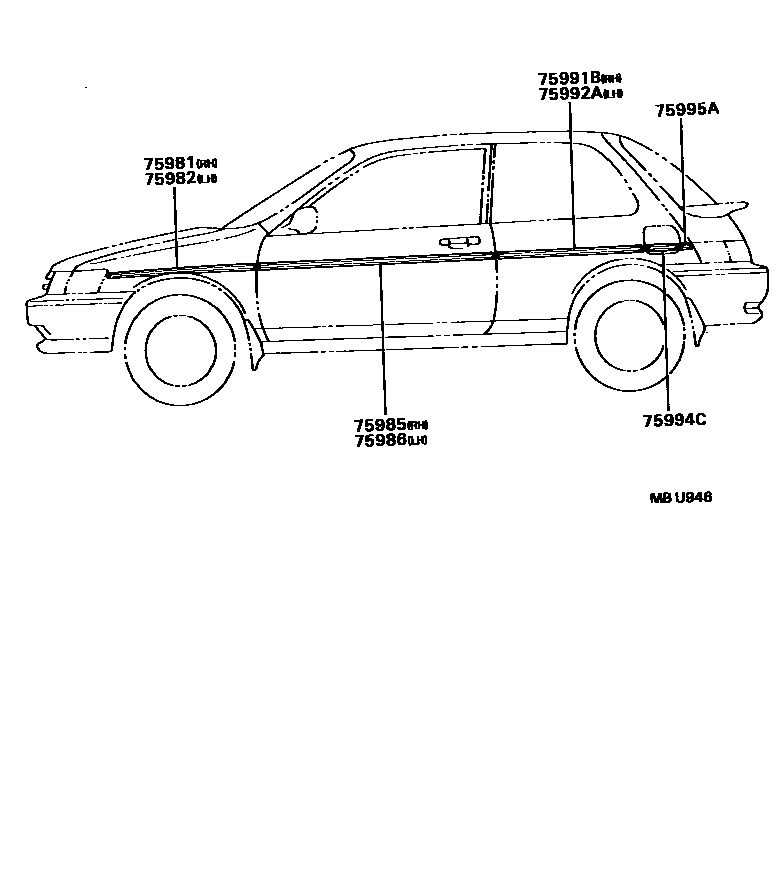

Toyota COROLLA 车身镶条 EPC diagram — MBU946
车身镶条 — MBU946 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
75981No. 1 right front fender panel75981-16330
75982No. 1 left front fender panel75982-16310
75985Right front door trim75985-16580
75986Left front door trim75986-16580
75991BRight side surround strip75991-16380 · 75991-16410
75992ALeft side surround strip75992-16350 · 75992-16380
75994Cleft rear trim75994-16120
75995ARear body center strip75995-16090
