Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.

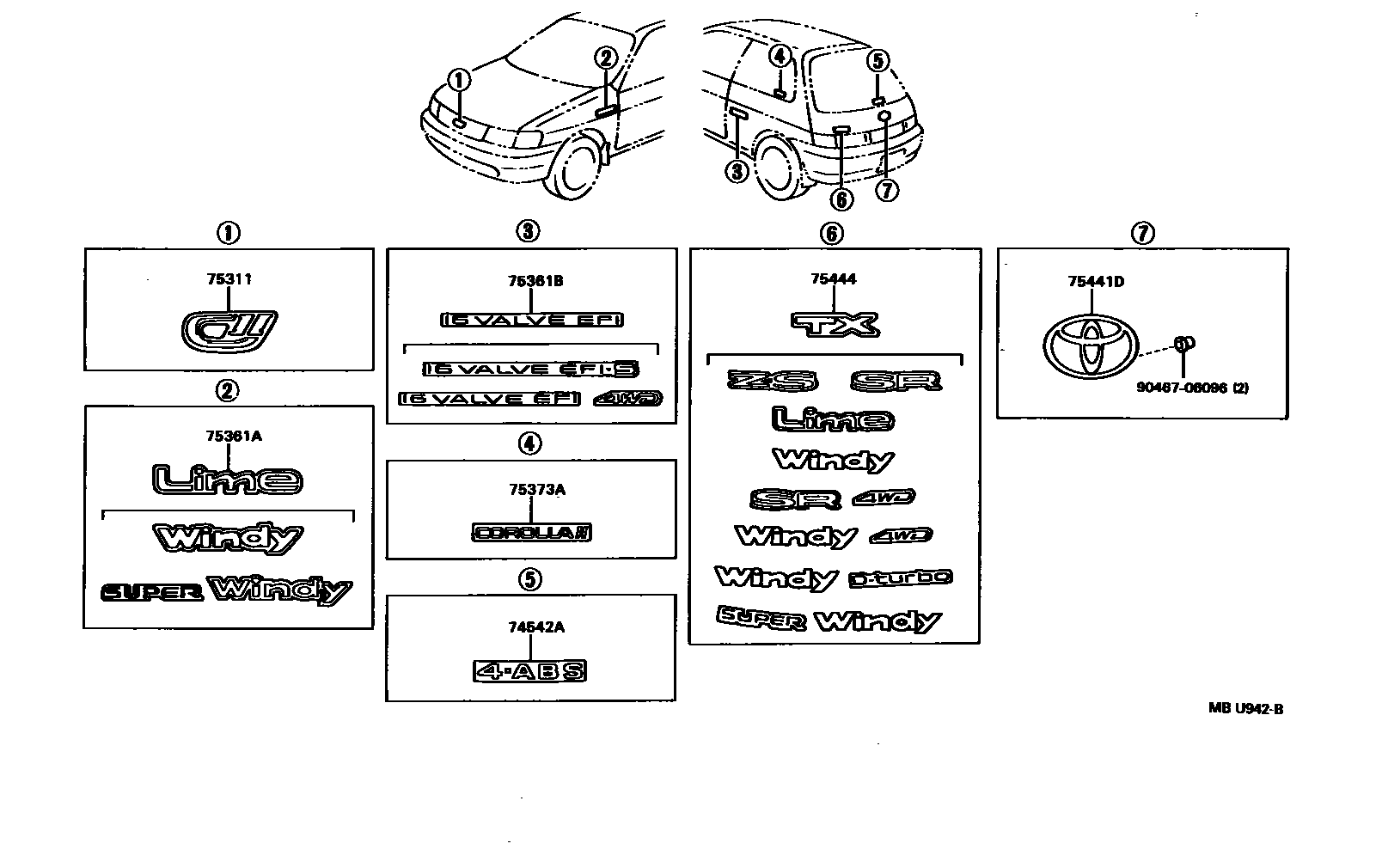

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBU942B
丰田徽标和铭牌(车外和车内) — MBU942B (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
74542ARear window marking plate74542-16110
75311Radiator grille (or front panel) plate75311-16450 · 75311-16510
75361AFront fender No. 1 nameplate75361-16160 · 75361-16190
75373Acorner window marking plate75373-16070
75441DTrunk door No. 1 name plate75441-16290
75444Trunk door No. 4 nameplate74542-16120 · 74542-16150 · 74542-16190 · 74542-16210 · 74542-16220 · 74542-16240 · 74542-16280 · 74542-16300 · 74542-16330
