Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

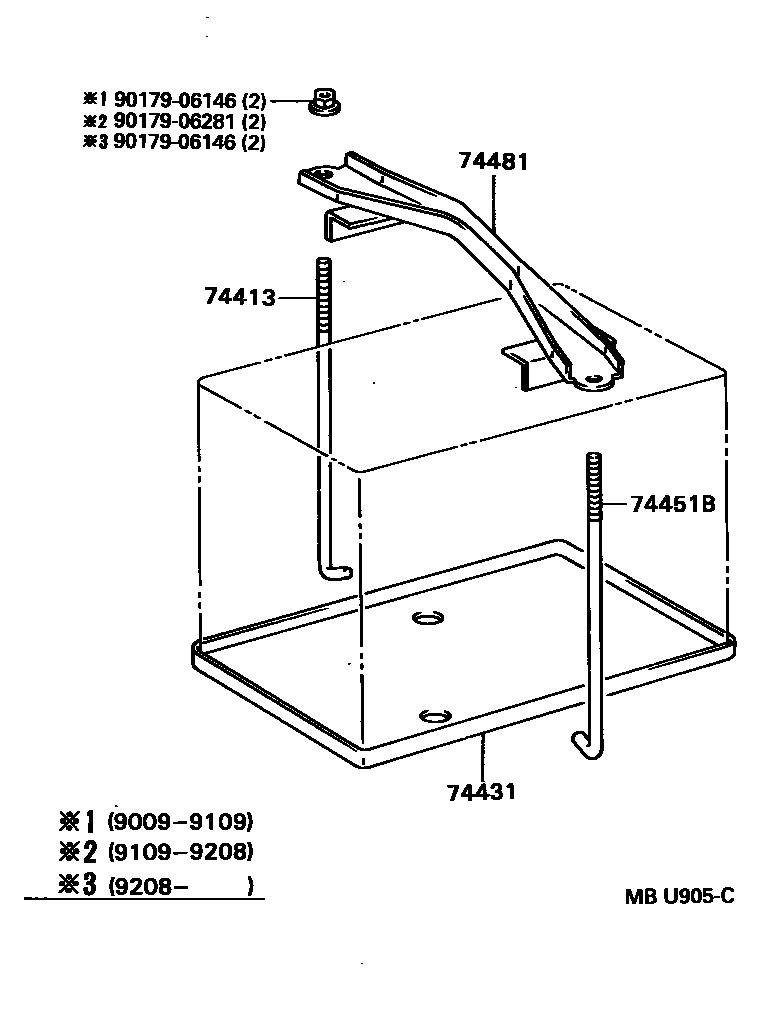

Toyota COROLLA battery holder EPC diagram — MBU905C
battery holder — MBU905C (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
74413Battery clamp bolt74451-16010 · 74451-16030 · 74451-20060
74431battery tray74431-12010 · 74431-14020 · 74431-14040
74451BBattery clamp bolt74451-16040 · 74451-20060
74481Battery fixing clip74404-16090 · 74404-16101 · 74404-16130
