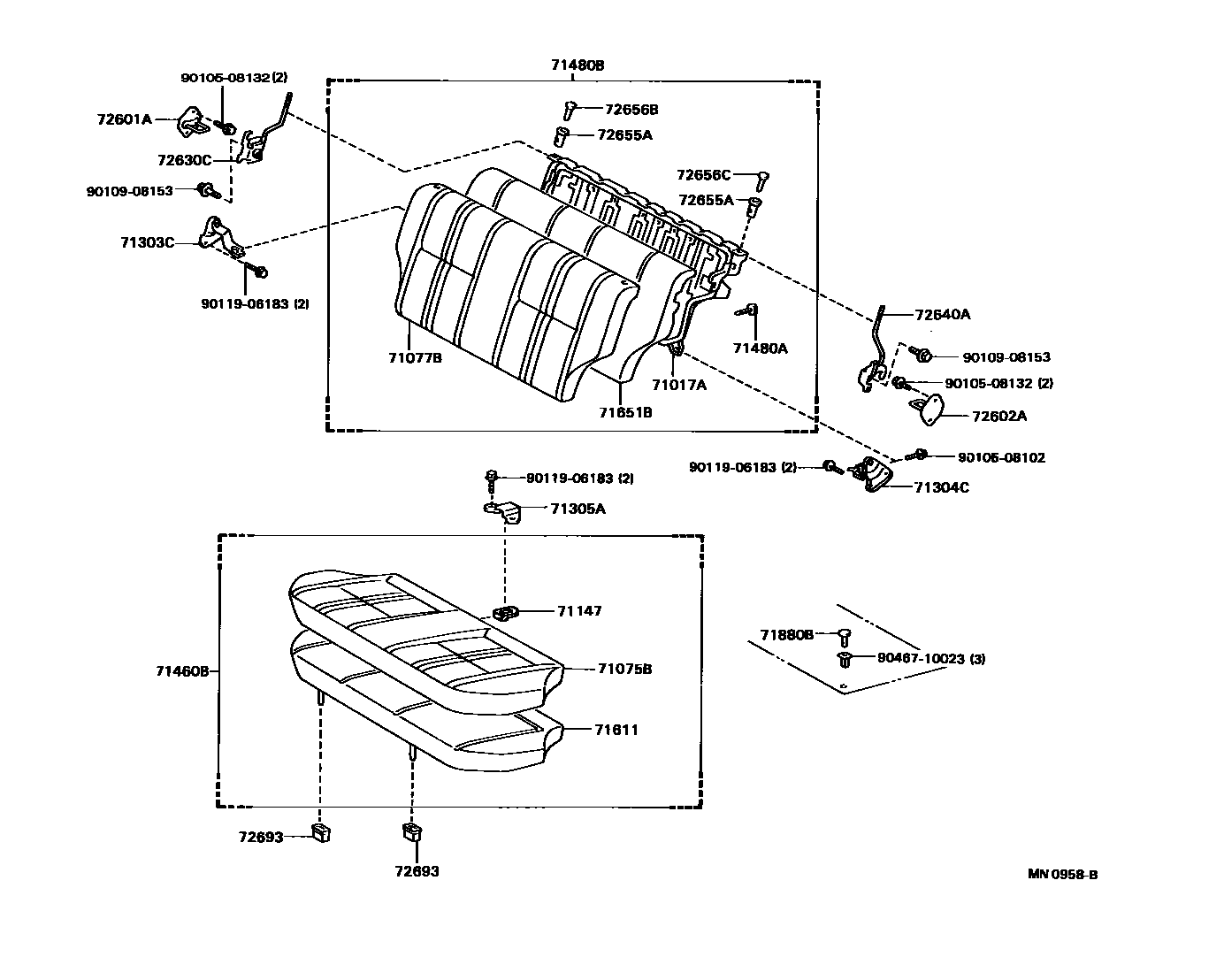

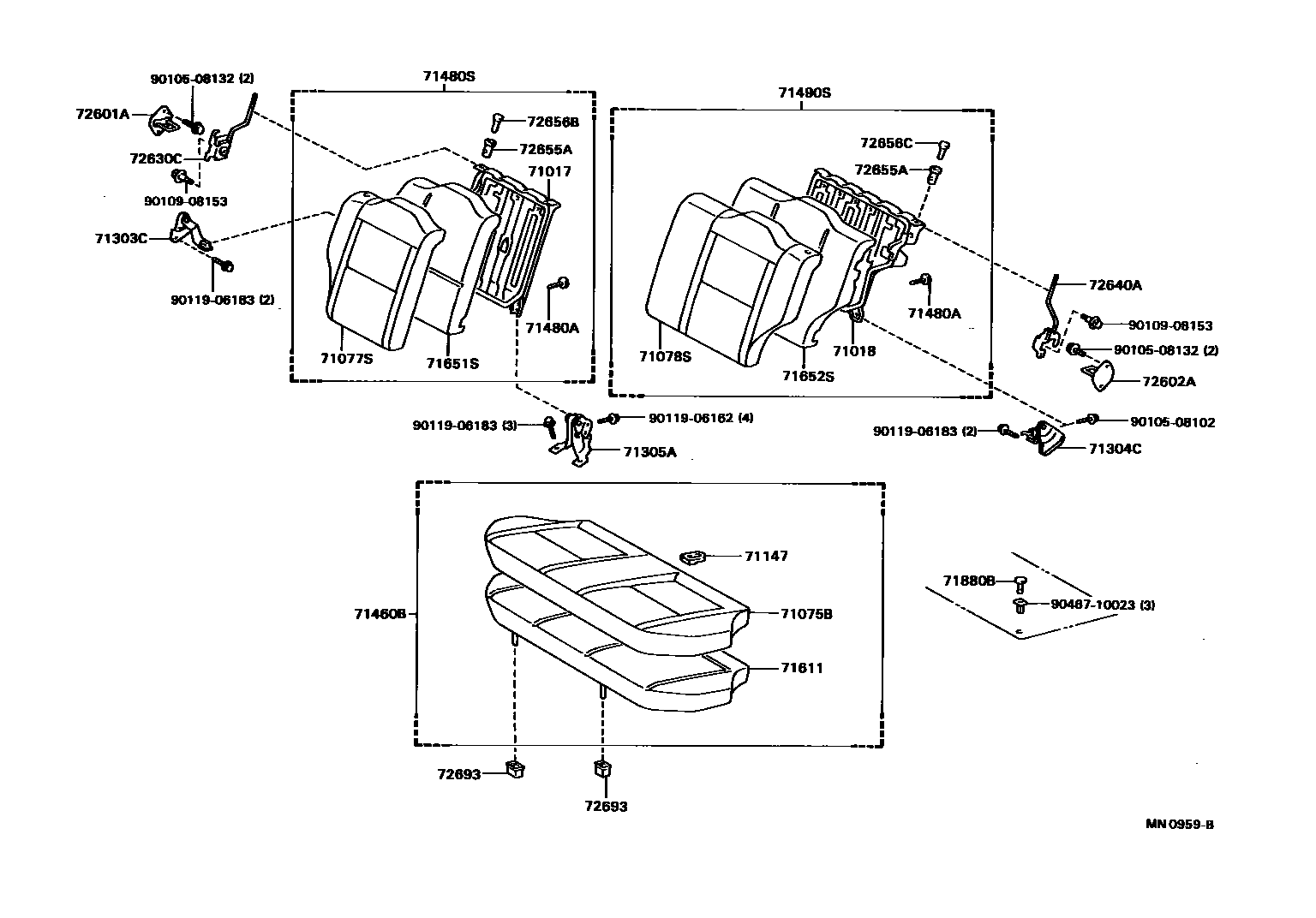

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-16150 |
| 71017A | Rear seat back frame sub-assembly | 71017-16140 |
| 71018 | Rear left seat back frame sub-assembly | 71018-16100 |
| 71147 | seat spring muffler | 71147-16020 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-16050 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-16010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-16060 · 71343-16070 |
| 71611 | Rear seat cushion cushion | 71503-16040 · 71503-16050 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-16200 · 71651-16280 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-16300 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-16150 |
| 72601A | Right rear seat back lock sub-assembly | 72601-16070 |
| 72602A | Rear left seat back lock sub-assembly | 72601-16070 |
| 72630C | Rear right seat back lock assembly | 72630-16100 |
| 72640A | Rear left seat back lock assembly | 72640-16080 |
| 72693 | Rear seat cushion hook | 72693-32020 |
