Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

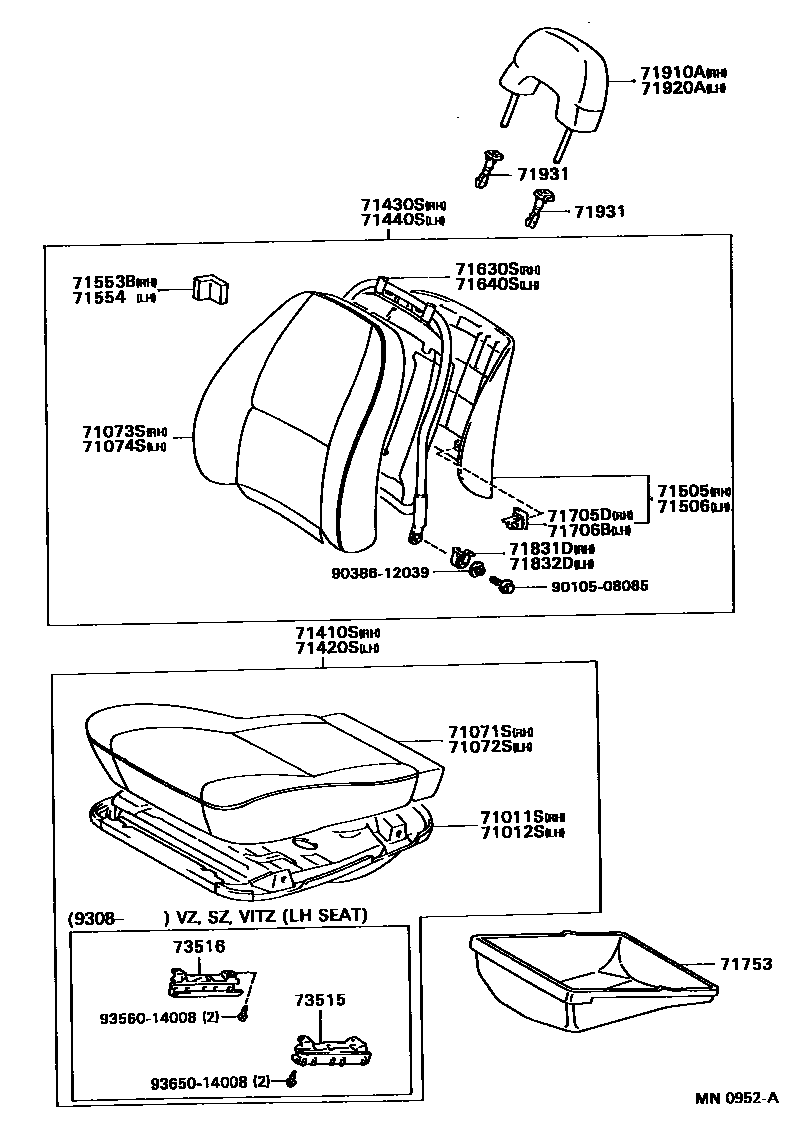

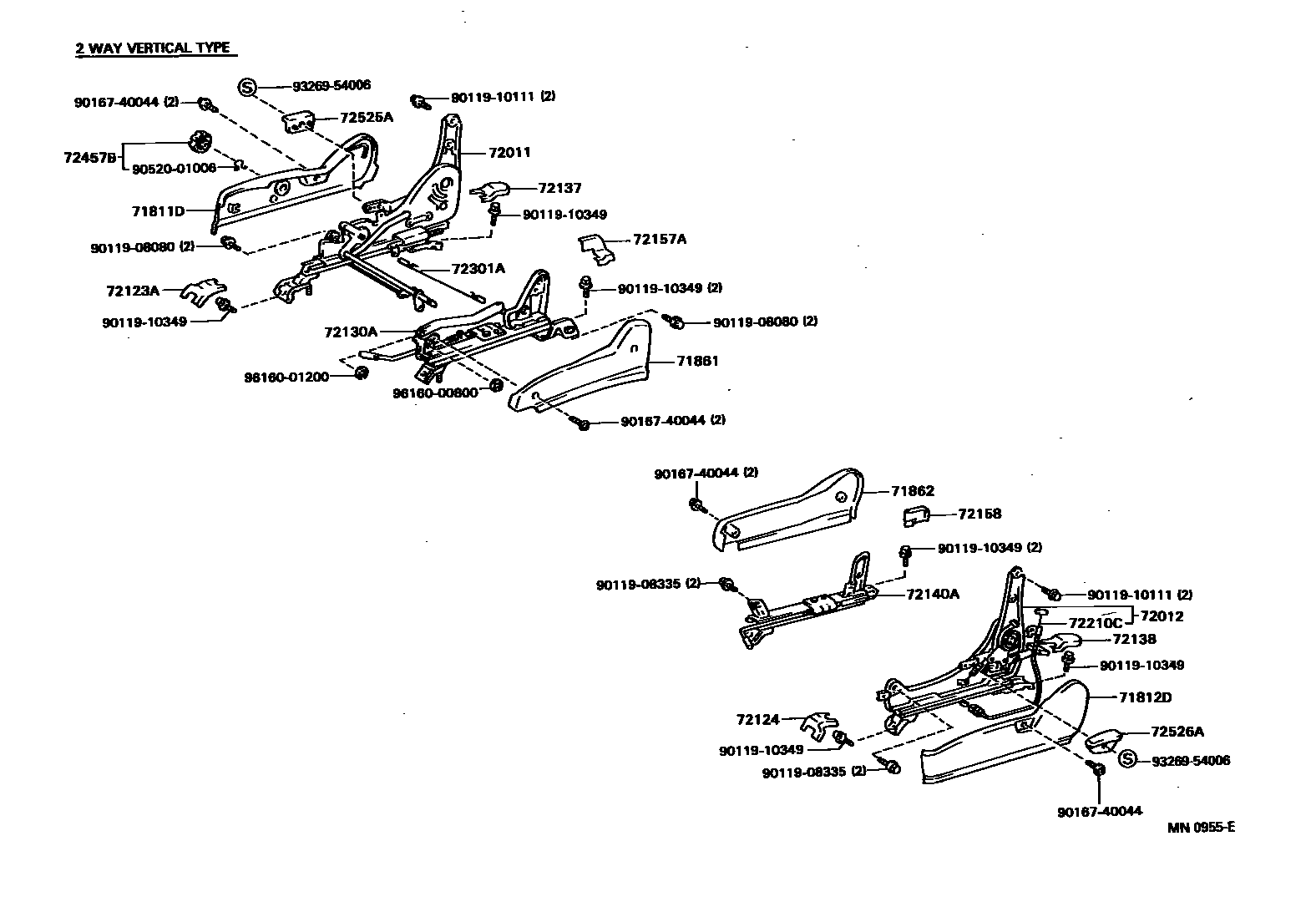

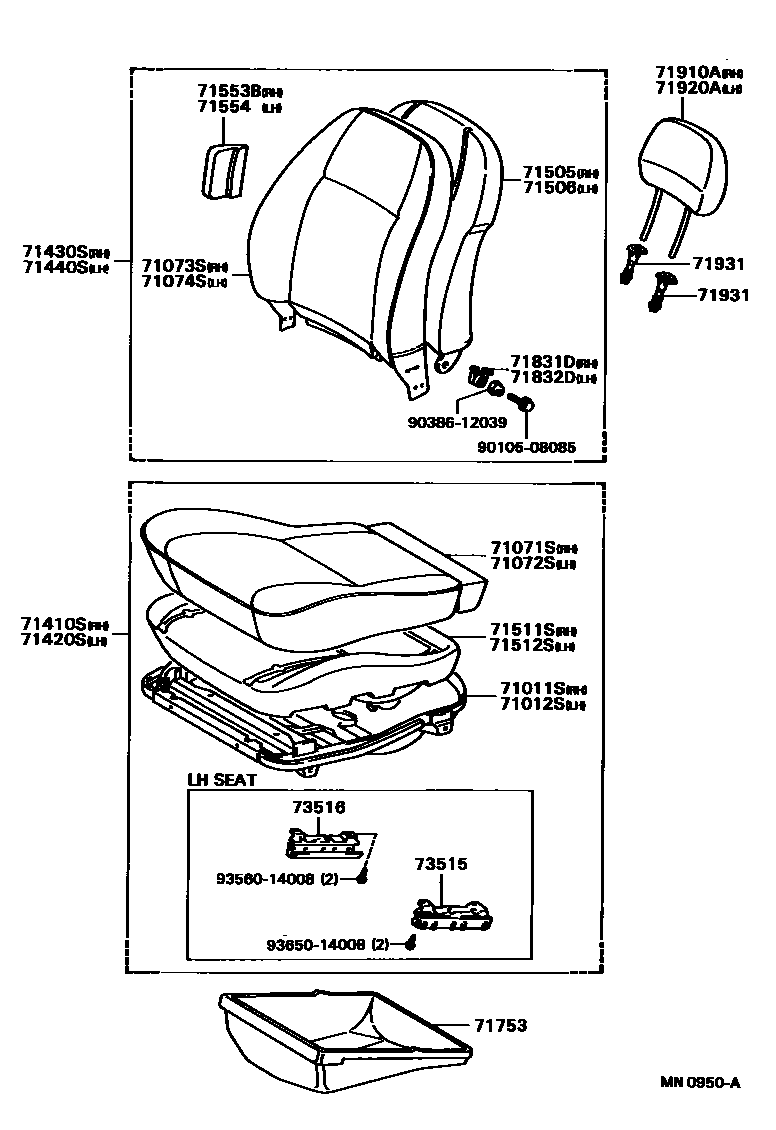

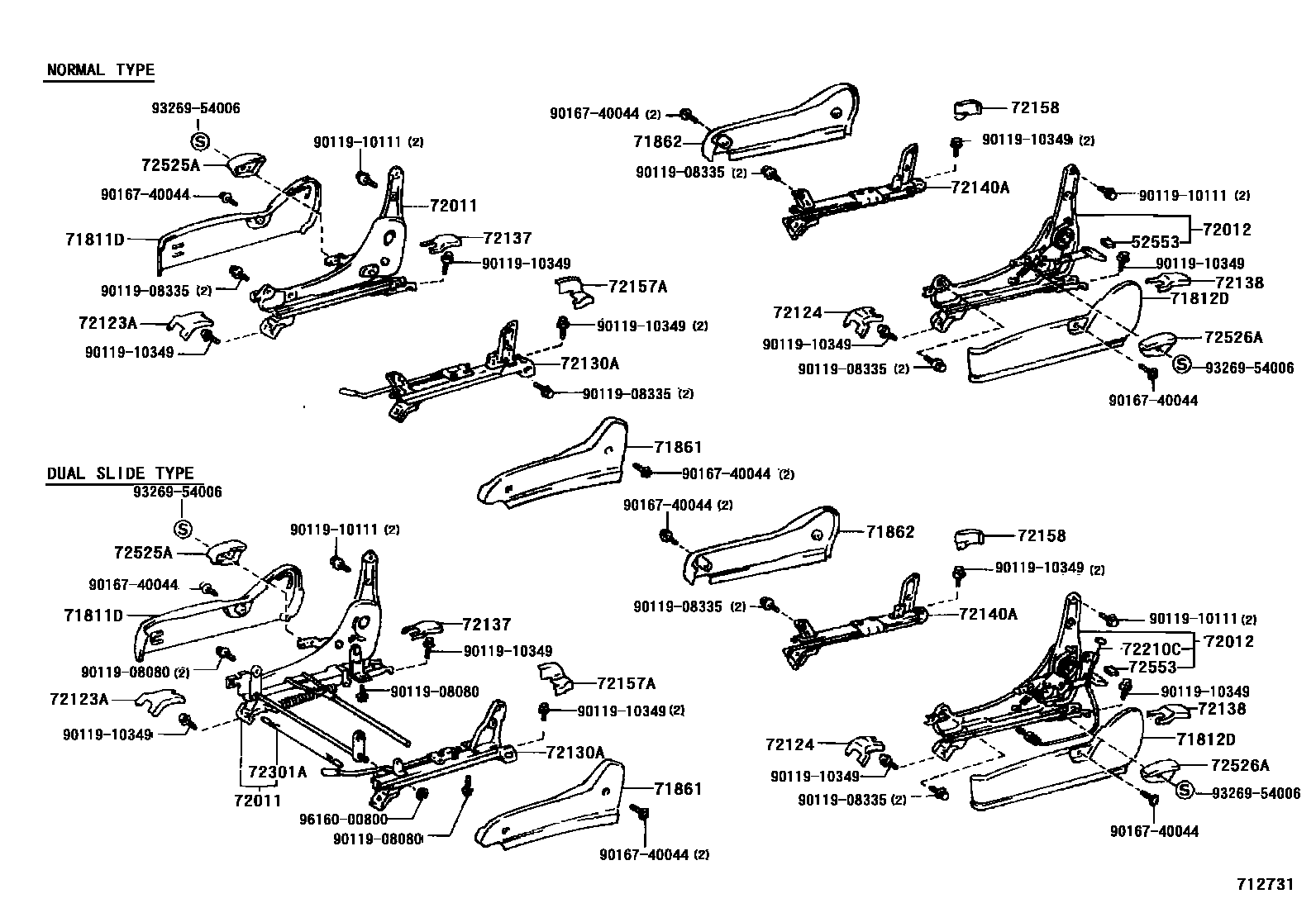

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-16060 · 71011-16070 · 71011-16090 |
| 71012S | Front left seat cushion frame sub-assembly | 71012-16030 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-16070 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-16030 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-16120 · 71511-16160 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-16120 · 71511-16160 |
| 71553B | Front B seat back cushion | 71553-16040 · 71553-16060 |
| 71554 | Front C seat back cushion | 71553-16040 · 71553-16060 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-16180 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-16100 |
| 71705D | Front seat back panel clip | 71769-16010 |
| 71706B | Front seat back panel clip | 71769-16010 |
| 71753 | Front seat bottom bracket | 71753-10010 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-16200 · 72010-16210 · 72010-16240 · 72010-16250 · 72010-16260 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-16170 · 72020-16180 · 72020-16200 · 72020-16210 · 72020-16230 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-16050 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-10060 |
| 72130A | Front right seat inner slide rail assembly | 72130-16130 · 72130-16140 · 72130-16150 · 72130-16160 · 72130-16170 · 72130-16190 · 72130-16200 · 72130-16210 · 72130-16220 · 72130-16230 |
| 72137 | Right seat outer slide rail cover | 72137-16030 |
| 72138 | Left seat outer slide rail cover | 72138-16030 |
| 72140A | Front left seat inner slide rail assembly | 72140-16140 · 72140-16150 · 72140-16160 · 72140-16170 · 72140-16190 · 72140-16200 · 72140-16210 · 72140-16220 |
| 72157A | Right seat inner slide rail bracket cover | 72157-16050 |
| 72158 | Left seat inner slide rail bracket cover | 72158-16050 |
| 72210C | Left seat slide rail control cable assembly | 72210-16200 · 72210-16220 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-16100 · 72301-16110 · 72301-16120 · 72301-16140 · 72301-16150 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 73515 | Front seat No. 1 bottom bracket guide rail | 73507-10010 |
| 73516 | Front seat No. 2 bottom bracket guide rail | 73508-10010 |
