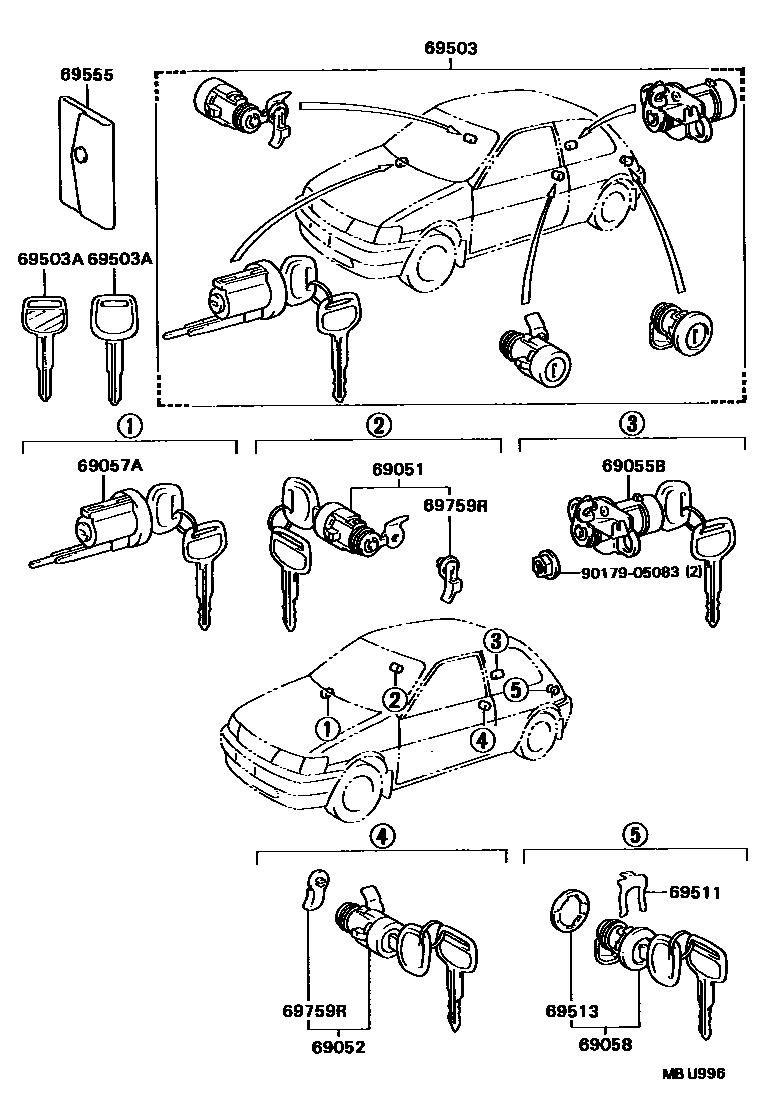

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-16190 · 69051-16200 |
| 69052 | Left door lock cylinder and key assembly | 69052-16190 |
| 69055B | Rear door lock cylinder and key assembly | 69055-16250 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-16130 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-16140 |
| 69503 | Door lock cylinder components | 69005-16640 · 69005-16650 · 69005-16660 |
| 69503A | external tooth key | 90999-00163 · 90999-00164 |
| 69511 | Front door lock cylinder fixing parts | 69511-32010 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69555 | key cover | 69555-17020 |
| 69759R | Front door lock cylinder buckle | 69759-16020 · 69759-16030 |
