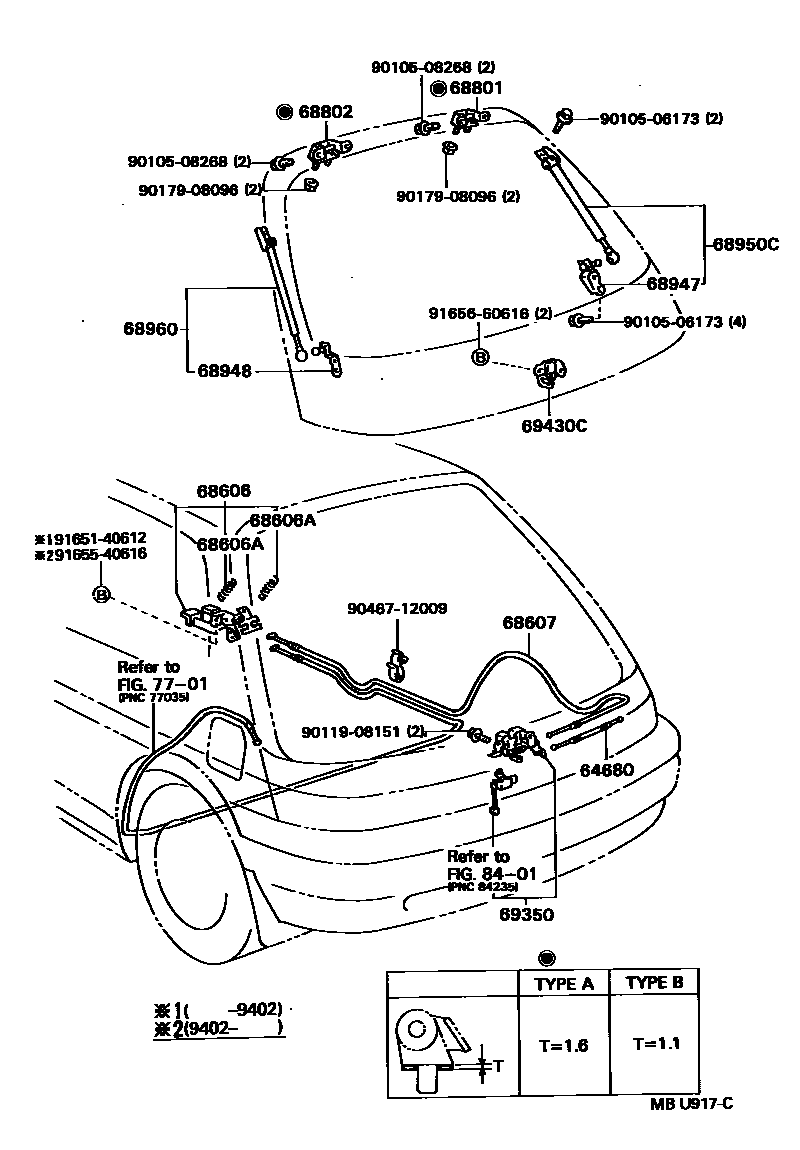

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64680 | Rear door lock control cable assembly | 64680-16060 |
| 68606 | Rear door lock opening lever sub-assembly | 64606-16040 · 64606-16050 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-16230 |
| 68801 | Back door upper right hinge sub-assembly | 68801-16040 · 68801-16050 |
| 68802 | Back door upper left hinge sub-assembly | 68801-16040 · 68801-16050 |
| 68947 | Back door right damping strut lower bracket | 68947-16020 · 68947-16021 · 68947-16022 |
| 68948 | Rear door left damping strut lower bracket | 68948-16020 · 68948-16021 · 68948-16022 |
| 68950C | Back door right support rod assembly | 68950-19745 · 68950-19746 · 68950-19755 · 68950-19756 · 68950-19765 · 68950-19766 |
| 68960 | Back door left support rod assembly | 68960-19435 · 68960-19436 · 68960-19445 · 68960-19446 · 68960-19455 · 68960-19456 |
| 69350 | Rear door lock assembly | 69350-16130 |
| 69430C | Back door lock assembly | 69430-16180 |
