Toyota COROLLA 背门板和背门玻璃 — Figure 6708

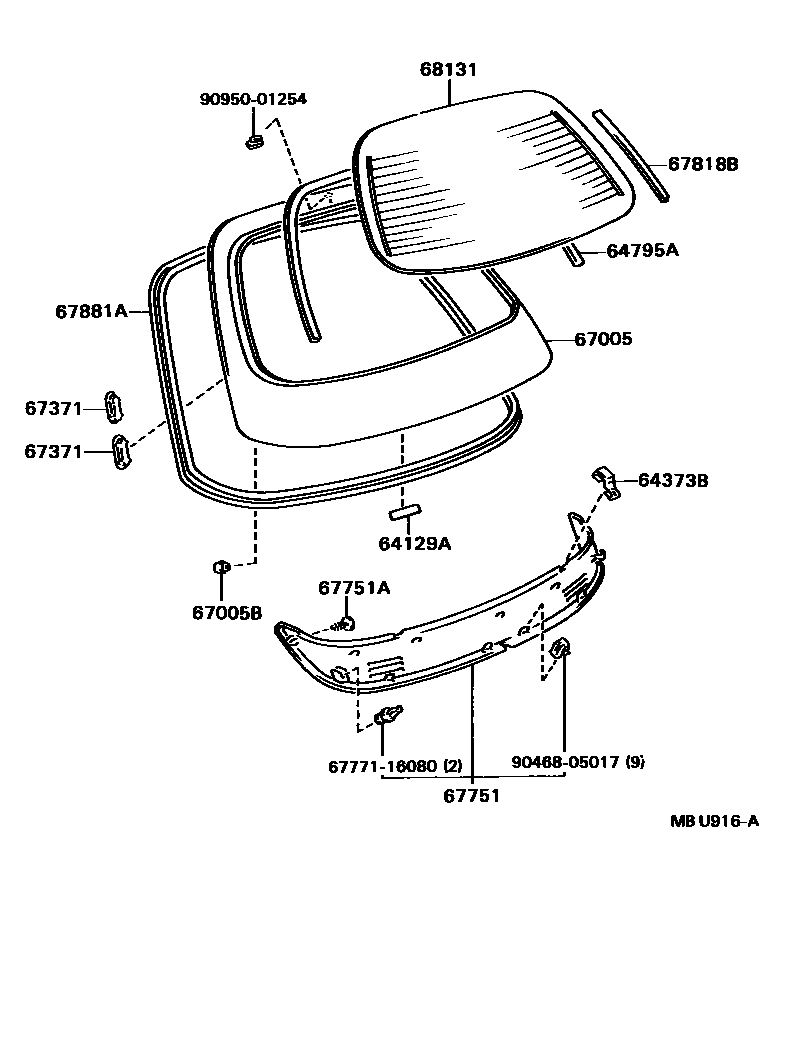

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64129A | Rear corner panel pad | 64129-17010 |
| 64373B | Glove box decorative panel stopper | 64373-16060 |
| 64795A | Rear window opening decorative strip | 64795-16010 |
| 67005 | Rear door panel sub-assembly | 67005-16350 · 67005-16370 · 67005-16380 · 67005-16410 |
| 67005B | Cushion pad (for back door panel) | 90541-09029 |
| 67371 | Rear door ventilation duct | 67371-16010 |
| 67818B | Back window glass spacer | 64818-16010 |
| 67881A | Back door seal | 67881-16120 |
| 68131 | back door glass | 68131-16340 · 68131-16380 · 68131-16390 |
