Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

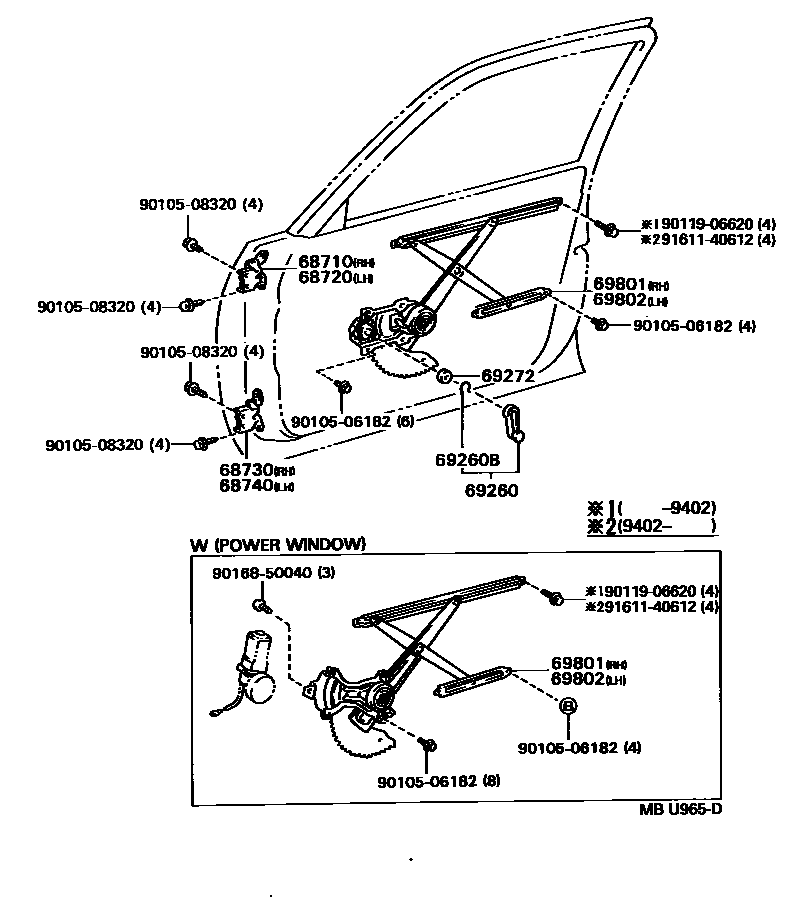

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-16030 · 68710-16050 |
| 68720 | Left front door upper hinge assembly | 68720-16030 · 68720-16050 |
| 68730 | Right front door lower hinge assembly | 68730-16030 · 68730-16040 · 68730-16060 |
| 68740 | Left front door lower hinge assembly | 68740-16030 · 68740-16040 · 68740-16060 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69272 | Front door window lift inner handle plate | 69268-20020 |
| 69801 | Right front door window lifter sub-assembly | 69801-16030 · 69801-16031 · 69810-16080 · 69810-16081 |
| 69802 | Left front door window lifter sub-assembly | 69802-16030 · 69802-16031 · 69820-16080 · 69820-16081 |
