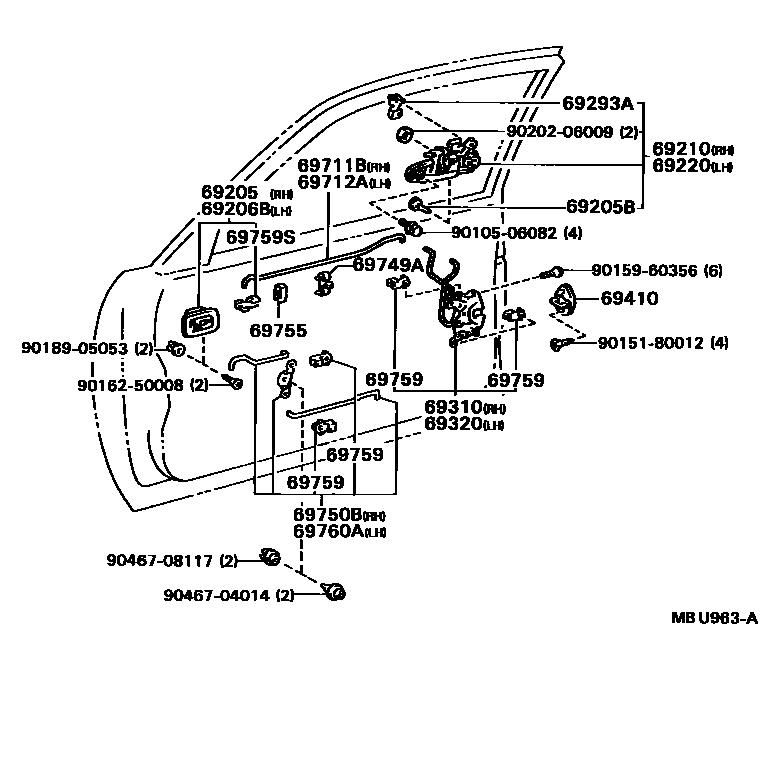

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-16070 |
| 69220 | Left front door outer handle assembly | 69220-16070 |
| 69293A | Front door outer handle buckle | 69293-12050 · 69293-12060 · 69293-16070 · 69293-16080 |
| 69310 | Right front door lock assembly | 69030-16050 · 69030-16100 · 69310-16220 · 69310-16280 |
| 69320 | Left front door lock assembly | 69040-16050 · 69040-16100 · 69320-16220 · 69320-16280 |
| 69410 | Front door lock plate assembly | 69410-16010 |
| 69711B | Right front door lock remote control lever | 69711-16070 |
| 69712A | Left front door lock remote control lever | 69712-16070 |
| 69749A | Front door lock No. 1 link clamp | 69749-12040 |
| 69750B | Right front door inner locking link assembly | 69750-16020 |
| 69755 | Front door lock link silencer | 69759-30021 · 69759-95110 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20020 · 69759-20030 · 69759-20040 · 69759-20050 · 69759-20080 · 69759-20090 · 69759-20100 · 69759-20110 |
| 69759S | Front door inner handle buckle | 69759-20030 · 69759-22040 · 69759-22050 |
| 69760A | Left front door inner locking link assembly | 69760-16020 |
