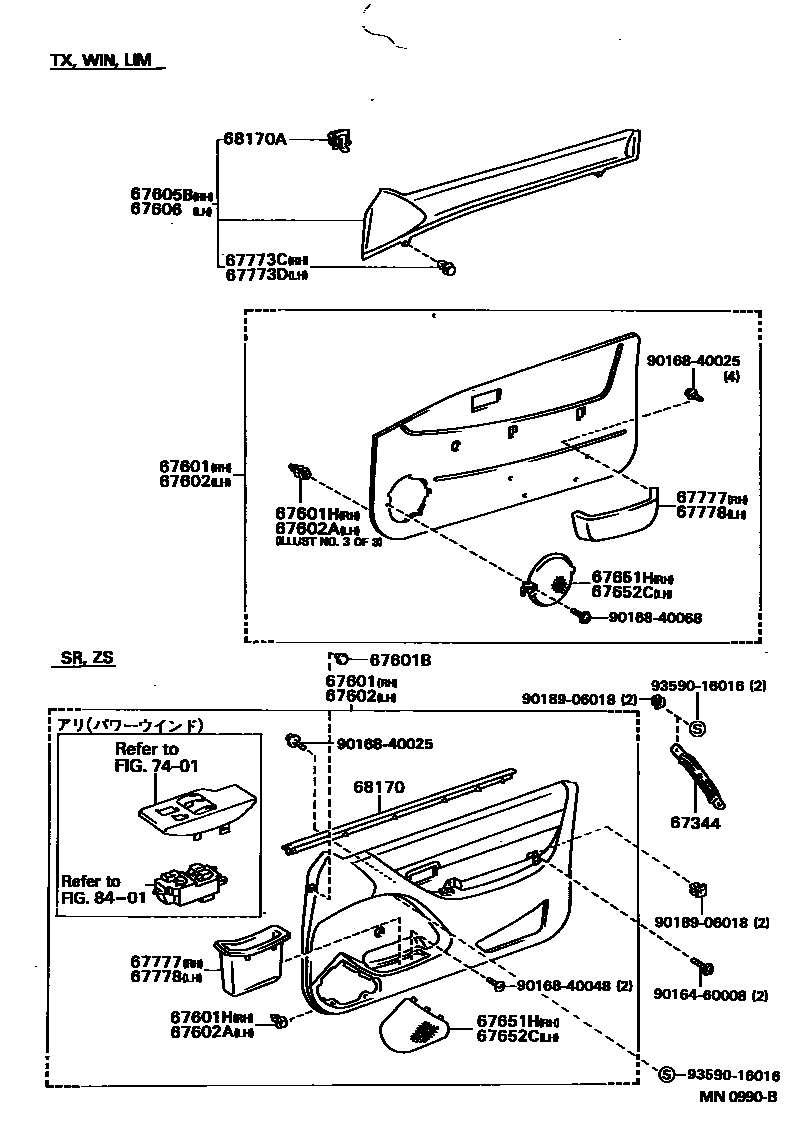

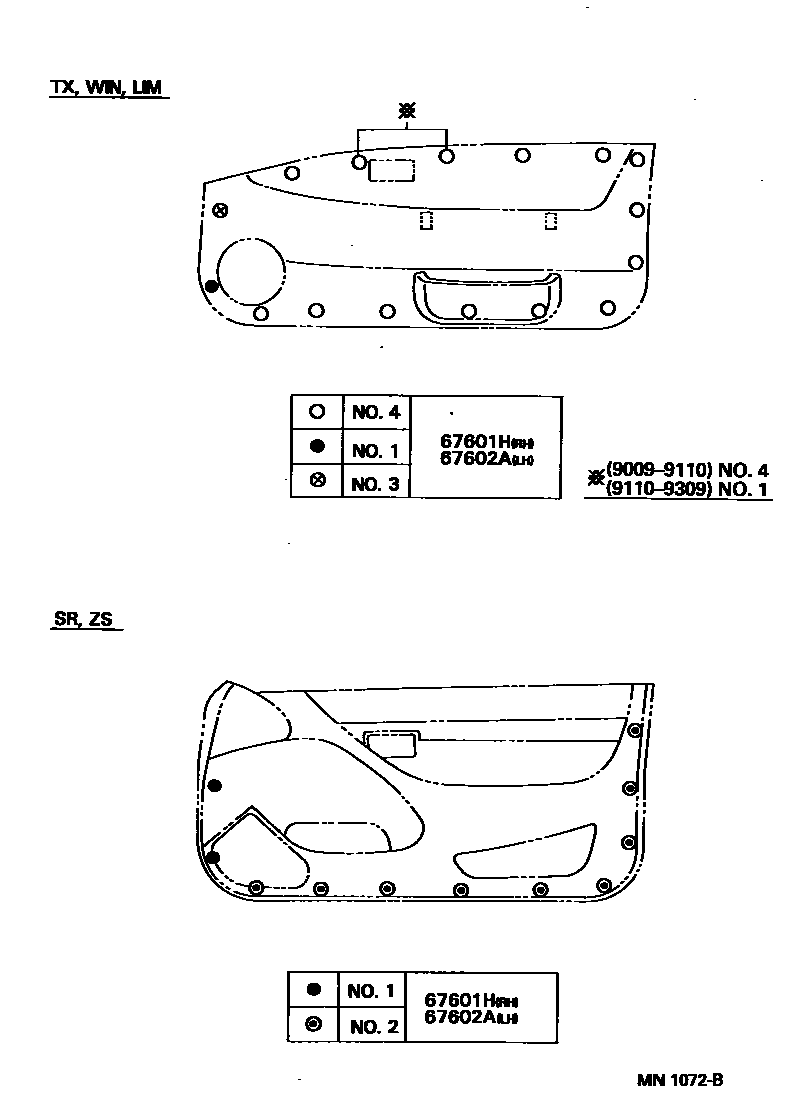

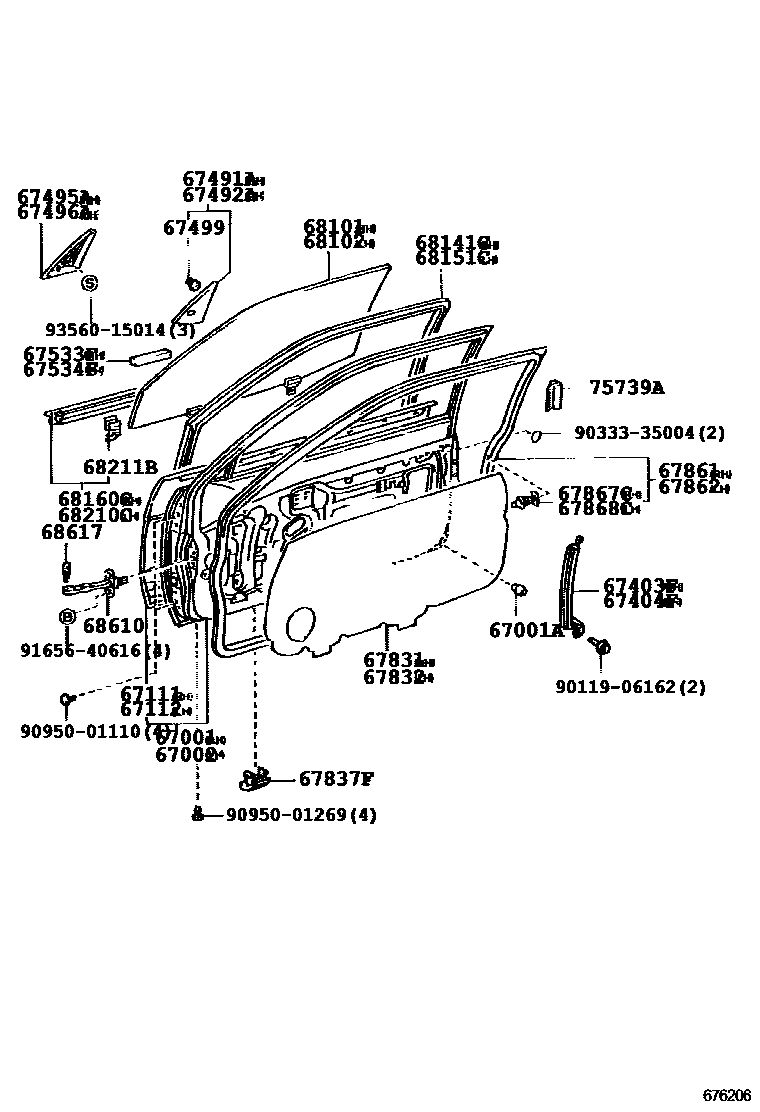

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-16381 · 67001-16400 · 67001-16401 · 67001-16410 · 67001-16420 · 67001-16440 · 67001-16441 |
| 67001A | Front door panel cushion | 90541-09031 |
| 67002 | Left front door panel sub-assembly | 67002-16341 · 67002-16350 · 67002-16370 · 67002-16371 · 67002-16380 · 67002-16381 · 67002-16390 |
| 67111 | Outer right front door panel | 67111-16200 · 67111-16201 · 67111-16210 |
| 67112 | Outer left front door panel | 67112-16180 · 67112-16181 · 67112-16190 |
| 67344 | Front door armrest rear fixed bracket | 67344-16010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-16080 · 67403-16081 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-16080 · 67404-16081 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-16120 · 67491-16170 · 67491-16220 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-16120 · 67492-16170 · 67492-16220 |
| 67495A | Right front door front lower door frame upper cover | 67495-16070 · 67495-16090 |
| 67496A | Left front door front lower door frame upper cover | 67496-16070 · 67496-16090 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-16010 · 67499-32010 |
| 67533F | Right front door lower door frame decorative pad | 67533-16050 |
| 67534F | Left front door lower door frame decorative pad | 67533-16050 |
| 67601H | Right door trim panel fixing | 67771-16090 · 67771-16120 · 67771-16160 · 67771-16170 |
| 67602A | Left door trim panel fixing | 67771-16090 · 67771-16120 · 67771-16160 · 67771-16170 |
| 67773C | Door No. 1 decorative panel fixing clip | 67773-16050 |
| 67773D | Door No. 2 decorative panel fixing clip | 67773-16050 |
| 67831 | Right front door access hole cover | 67831-16320 · 67831-16370 |
| 67832 | Left front door access hole cover | 67832-16180 · 67832-16190 · 67832-16240 · 67832-16250 |
| 67837F | Door dust seal retainer | 67837-16030 |
| 67861 | Right front door seal | 67861-16260 |
| 67862 | Left front door seal | 67862-16260 |
| 67867C | Right front door seal strip fixing | 67868-12050 |
| 67868C | Left front door seal strip fixing | 67868-12050 |
| 68101 | Right front door glass sub-assembly | 68110-16010 · 68110-16020 |
| 68102 | Left front door glass sub-assembly | 68120-16010 · 68120-16020 |
| 68141C | Right front door glass lift channel | 68141-16180 |
| 68151C | Left front door glass lift channel | 68151-16010 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-16090 |
| 68170 | Front door glass inner sealing strip assembly | 68172-16090 |
| 68170A | Catch (for front door glass inner sealing strip assembly) | 68211-16030 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-16080 |
| 68211B | Catch (for front door glass seal strip) | 68212-16030 |
| 68610 | Front door opening limiter assembly | 68610-16060 · 68610-16080 |
| 68617 | Front door opening limiter pin | 68617-12030 |
| 75739A | Door edge protection strip | 75739-30030 |
