Toyota COROLLA 底板和底板装饰罩 — Figure 6404

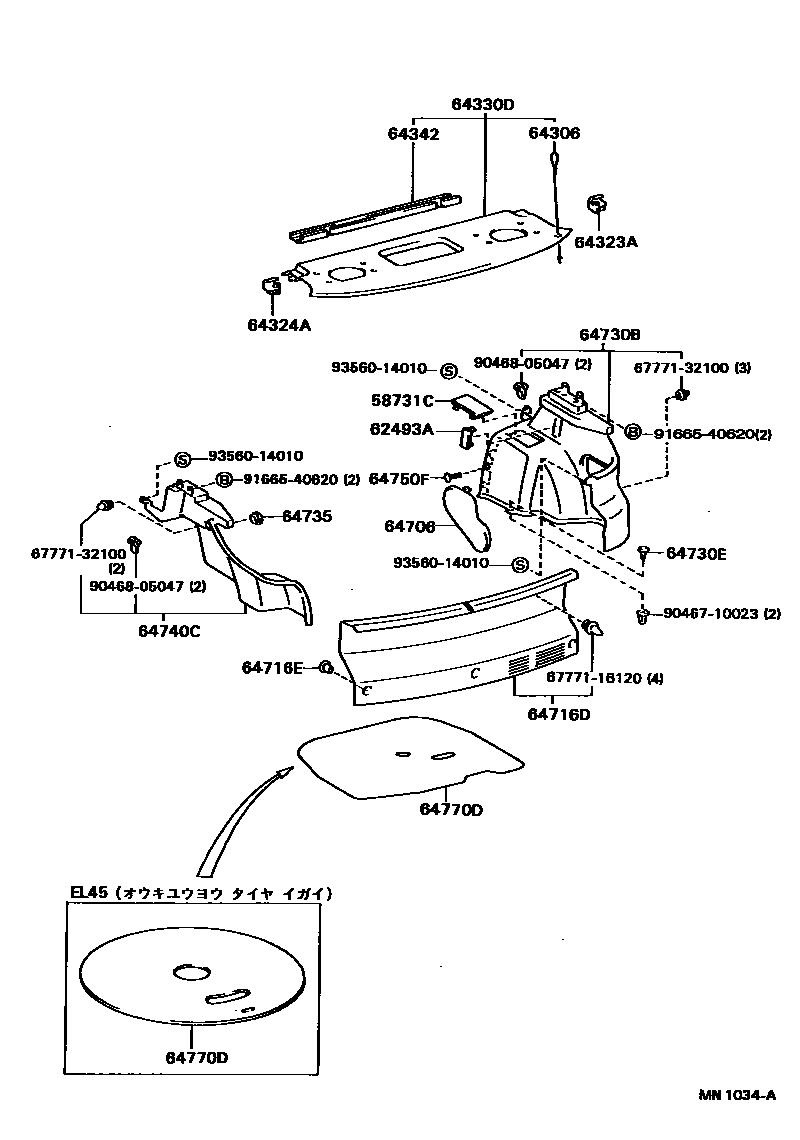

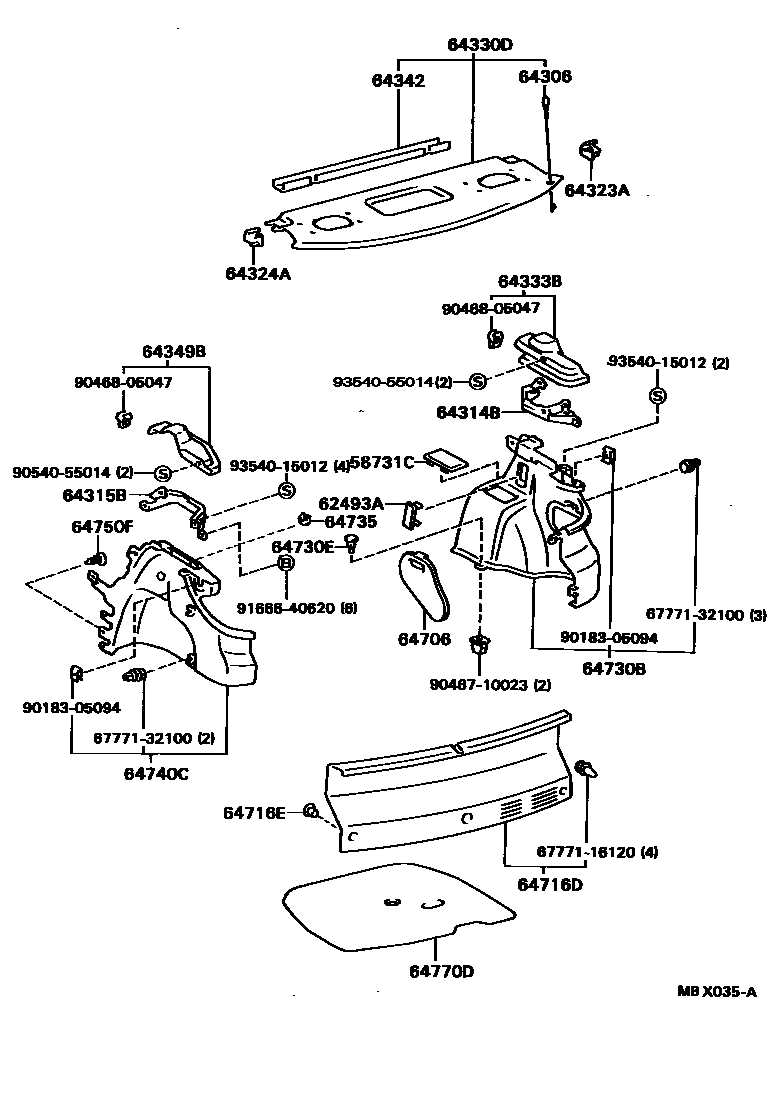

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12030 |
| 64314B | Glove box bracket right reinforcement | 64314-16061 |
| 64315B | Glove box bracket left reinforcement | 64315-16061 |
| 64342 | Decorative bottom cover for glove box | 64342-16010 |
| 64770D | Spare tire cover assembly | 64770-10060 · 64770-16130 · 64770-16150 · 64770-16210 · 64770-16211 |
