Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

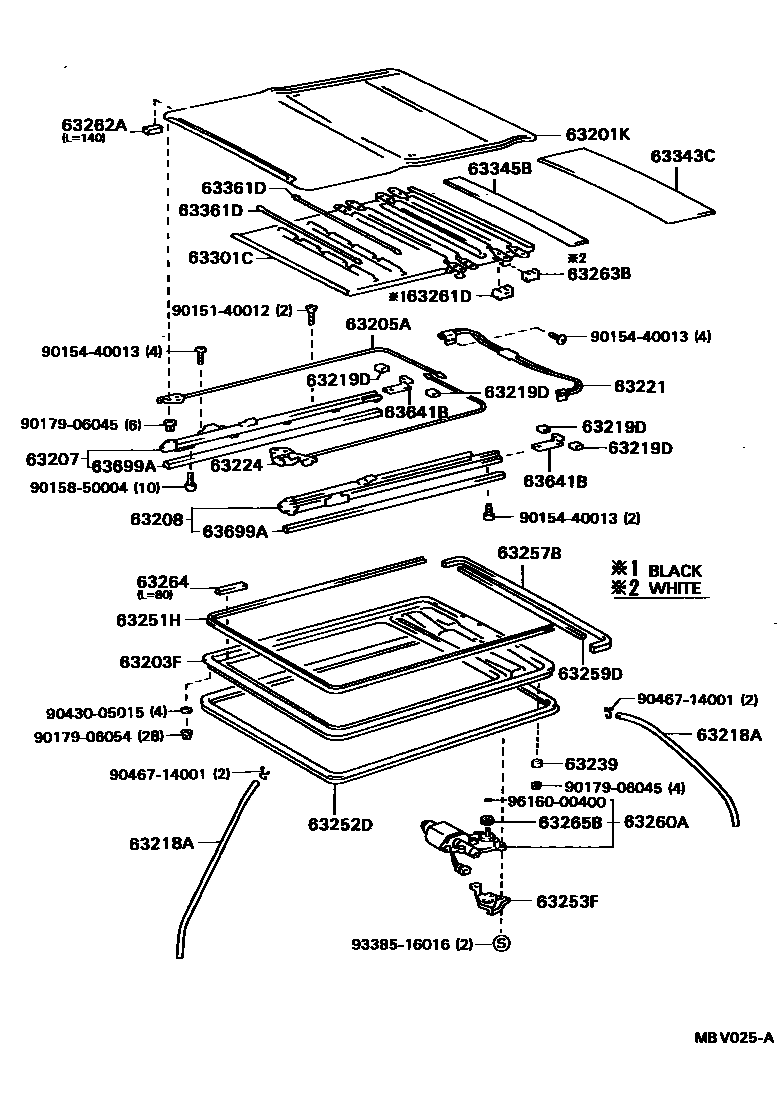

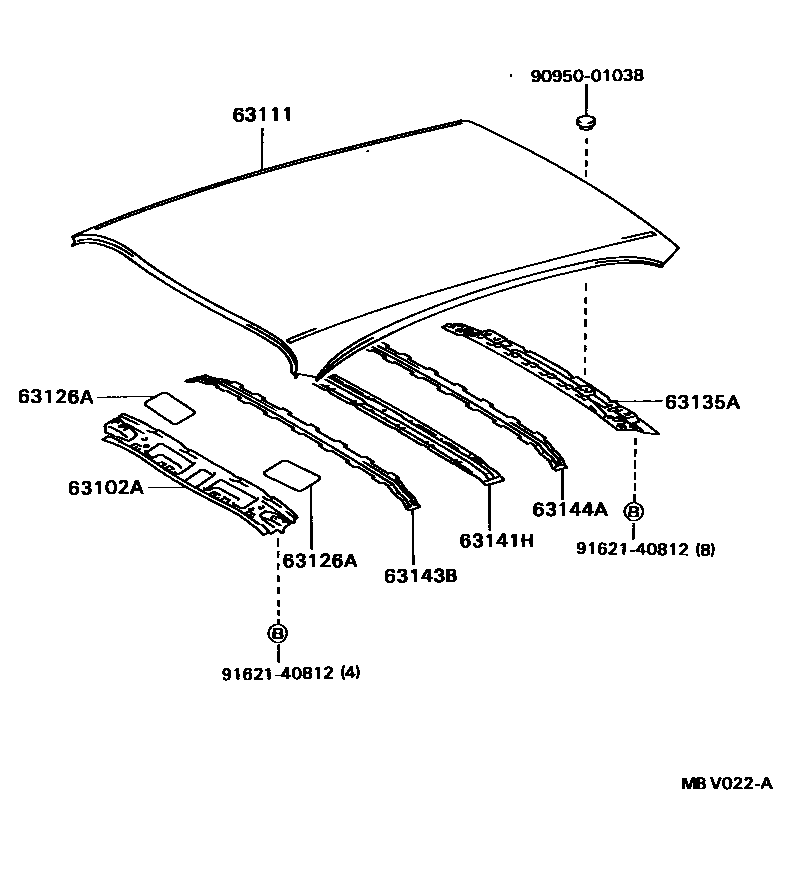

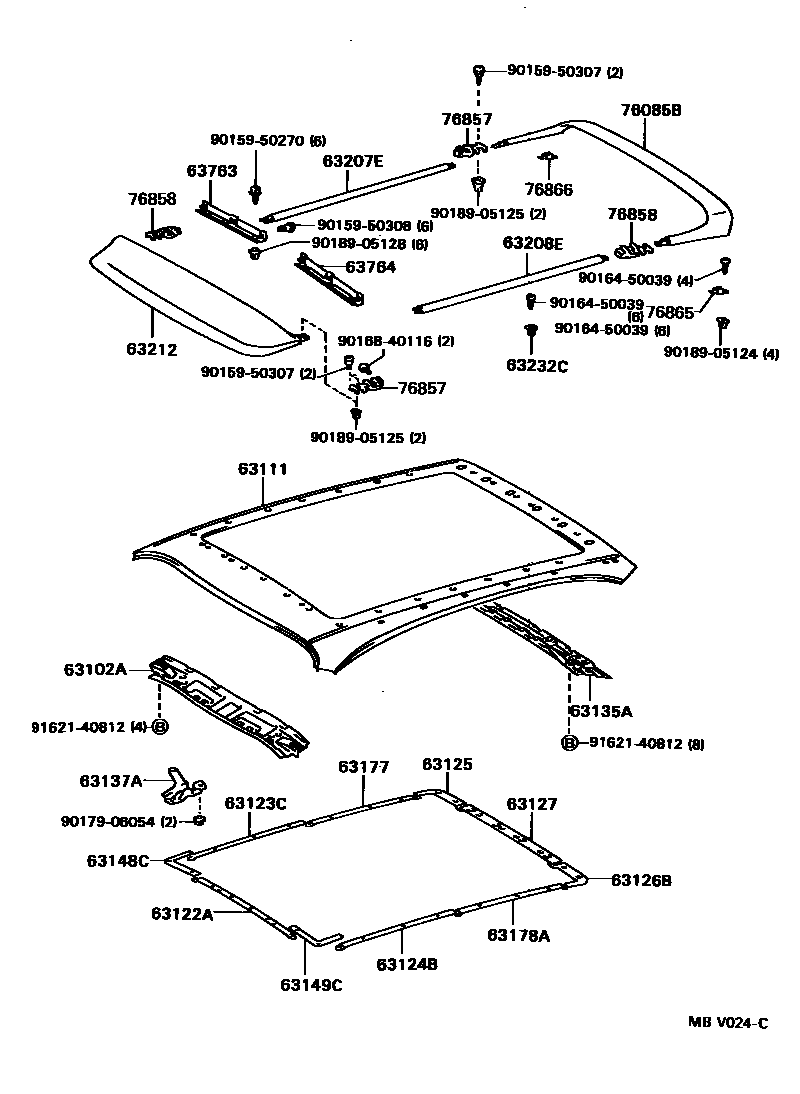

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63132-16060 |
| 63111 | roof panel | 63111-16180 · 63111-16190 |
| 63122A | Front roof panel reinforcement | 63122-16010 |
| 63123C | Roof panel reinforcement | 63123-16010 |
| 63124B | Left front roof panel reinforcement | 63124-16010 |
| 63125 | No. 2 roof panel reinforcement | 63125-16010 |
| 63126A | Windshield roof shock absorber | 63126-16010 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-16020 |
| 63127 | No. 5 roof panel reinforcement | 63127-16010 |
| 63135A | Opening frame under rear door | 63135-16070 |
| 63137A | No. 1 ceiling light bracket | 63137-16040 |
| 63141H | Center roof panel reinforcement | 63141-16070 |
| 63143B | No. 3 roof panel reinforcement | 63143-16030 |
| 63144A | No. 4 roof panel reinforcement | 63144-16020 |
| 63148C | Right roof panel reinforcement | 63148-16010 |
| 63149C | Left roof panel reinforcement | 63149-16010 |
| 63177 | No. 9 roof panel reinforcement | 63177-16010 |
| 63178A | No. 10 roof panel reinforcement | 63178-16010 |
| 63201K | Sliding sunroof hood sub-assembly | 63201-16060 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-16050 · 63203-16080 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-16040 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-16050 |
| 63207E | Removable sunroof right front protective strip sub-assembly | 63207-16031 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-16050 |
| 63208E | Left front removable sunroof protection strip sub-assembly | 63208-16031 |
| 63212 | Roof deflector panel | 63212-16021 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-16090 · 63249-16100 |
| 63219D | Sliding sunroof guide cushion | 63219-10020 |
| 63221 | Sliding sunroof cable duct | 63209-10040 |
| 63224 | Left sliding sunroof transmission cable | 63206-16010 |
| 63232C | Removable skylight fixings | 63232-16030 |
| 63239 | Sliding roof panel stop | 63239-10010 · 63239-16010 · 63239-16020 · 63239-16030 · 63239-16040 |
| 63251H | Sliding skylight seal | 63251-10040 |
| 63252D | Sliding skylight frame sealing strip | 63252-16020 |
| 63253F | Sliding sunroof motor cover bracket | 63253-16020 |
| 63257B | Sliding sunroof seal | 63257-10010 |
| 63259D | Sliding sunroof seal No. 2 | 63259-10020 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-10060 · 63260-16010 · 63260-16050 |
| 63261D | Sliding skylight slider | 63261-10020 |
| 63262A | No. 1 front sliding sunroof seal | 63262-10010 |
| 63263B | Sliding skylight slider | 63263-10010 |
| 63264 | No. 3 front sliding sunroof seal | 63264-10020 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63343C | Rear roof silencer pad | 63343-16020 |
| 63345B | Center roof muffler pad | 63345-16010 |
| 63361D | Sliding headliner bracket | 63361-10080 |
| 63641B | Sliding sunroof guide rail stop | 63641-10010 |
| 63699A | Sliding sunroof guide seals | 63699-10010 |
| 63763 | Right front roof air deflector bracket | 63763-16020 |
| 63764 | Left front roof air deflector bracket | 63764-16020 |
| 76085B | Rear spoiler sub-assembly | 76085-16061 |
| 76857 | Right front spoiler fixing | 76857-16010 |
| 76858 | Left front spoiler fixing | 76858-16010 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-16050 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-16040 |
