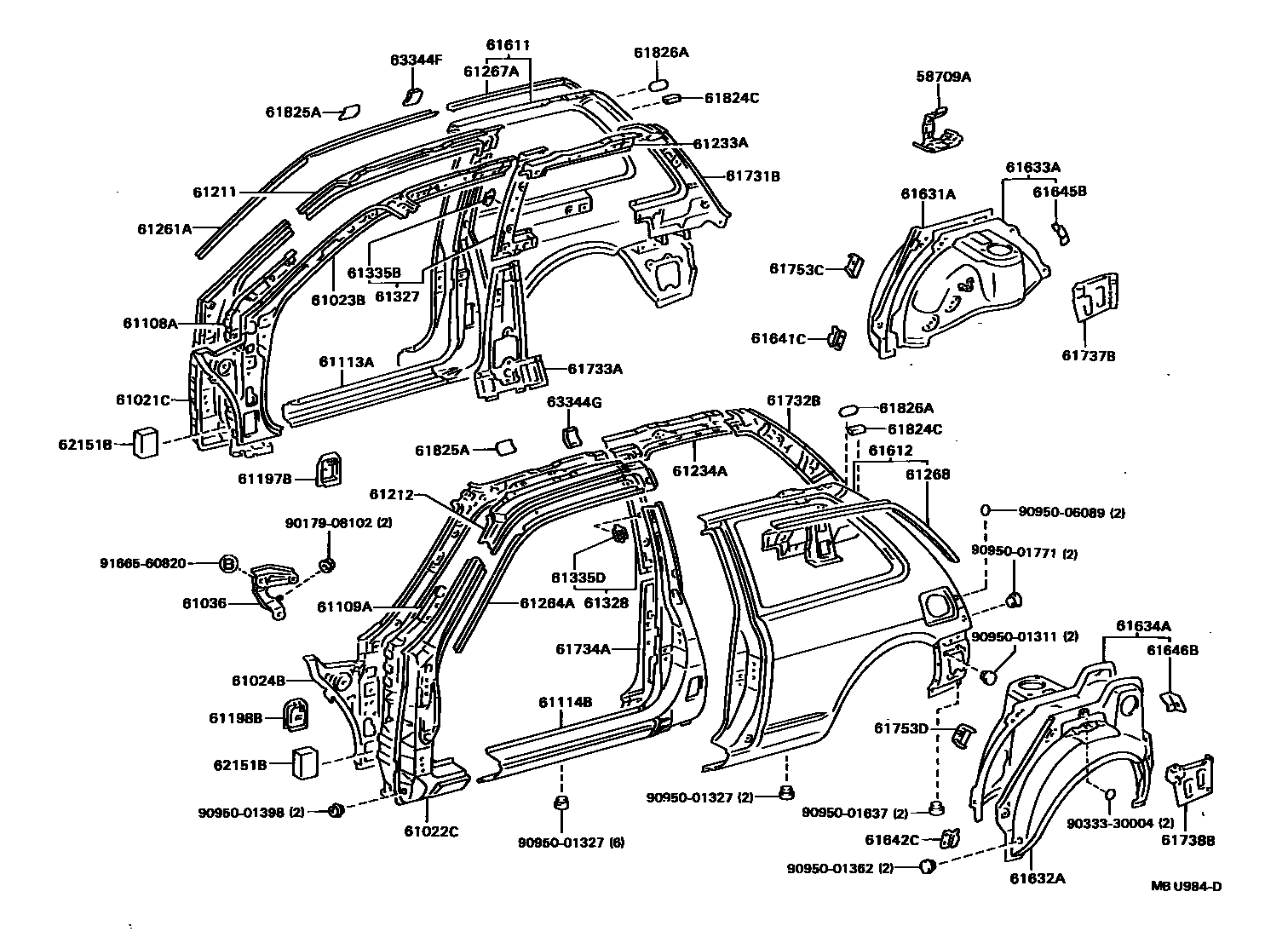

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-16030 |
| 61021C | Right body front pillar sub-assembly | 61027-16020 |
| 61022C | Left body front pillar sub-assembly | 61028-16020 |
| 61023B | Right body inner front pillar sub-assembly | 61023-16040 |
| 61024B | Left body inner front pillar sub-assembly | 61024-16040 · 61024-16041 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-16020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-16900 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-16900 |
| 61113A | No. 2 right outer panel | 61113-16030 |
| 61114B | No. 2 left outer panel | 61114-16030 |
| 61197B | Right front pillar No. 2 manhole cover | 61197-16010 · 61197-16011 |
| 61198B | Left front pillar No. 2 manhole cover | 61198-16010 · 61198-16011 |
| 61211 | Roof right outer longitudinal beam | 61201-16120 |
| 61212 | Roof left outer longitudinal beam | 61212-16110 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-16020 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-16020 |
| 61261A | Front drain channel on the right side of the roof | 61263-16060 |
| 61264A | Roof left front drain channel | 61264-16060 |
| 61267A | Roof right rear gutter | 61267-16100 |
| 61268 | Roof left rear gutter | 61268-16100 |
| 61327 | Right body outer center pillar reinforcement | 61327-16070 |
| 61328 | Left body outer center pillar reinforcement | 61328-16070 |
| 61335B | Seat belt anchor fasteners | 61335-16010 |
| 61335D | Seat belt anchor fasteners | 61335-16010 |
| 61611 | Right side hoarding | 61601-16780 · 61601-16790 · 61601-16800 · 61601-16810 · 61601-16840 · 61601-1G020 · 61601-1G030 · 61601-1G040 |
| 61612 | left side panel | 61602-1G230 · 61602-1G240 · 61602-1G250 · 61602-1G260 · 61602-1G290 · 61602-1G360 · 61602-1G370 · 61602-1G380 |
| 61631A | Right wheel cover outer panel | 61631-16150 |
| 61632A | Left side wheel cover outer panel | 61632-16150 |
| 61633A | Right wheel housing lining panel | 61607-16190 |
| 61634A | Left side wheel housing lining panel | 61608-16210 |
| 61641C | Right front side wheel housing corner panel | 61641-16040 |
| 61642C | Left front side wheel housing corner panel | 61642-16060 |
| 61645B | Right rear side wheel housing corner panel | 61645-16050 |
| 61646B | Left rear side wheel housing corner panel | 61646-16070 |
| 61731B | Roof right inner panel | 61731-16901 · 61731-16904 |
| 61732B | Roof left inner panel | 61732-16901 · 61732-16904 |
| 61733A | Right front roof inner panel | 61733-16050 |
| 61734A | Left front roof inner panel | 61734-16050 |
| 61737B | Right inner lower panel of the roof | 61737-16070 |
| 61738B | Roof left inner lower panel | 61738-16070 |
| 61753C | Side panel lower fixings | 61753-16020 |
| 61753D | Side panel lower fixings | 61753-16020 |
| 61824C | No. 1 silencer panel gasket | 61824-16010 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61826A | Noise Control Panel No. 3 | 61826-16020 |
| 62151B | Front cowl side silencer pads | 62151-12100 |
| 63344F | No. 4 roof silencer mat | 63344-16010 |
| 63344G | No. 4 roof silencer mat | 63344-16010 |
