Toyota COROLLA 中央扶手箱和支架 — Figure 5806

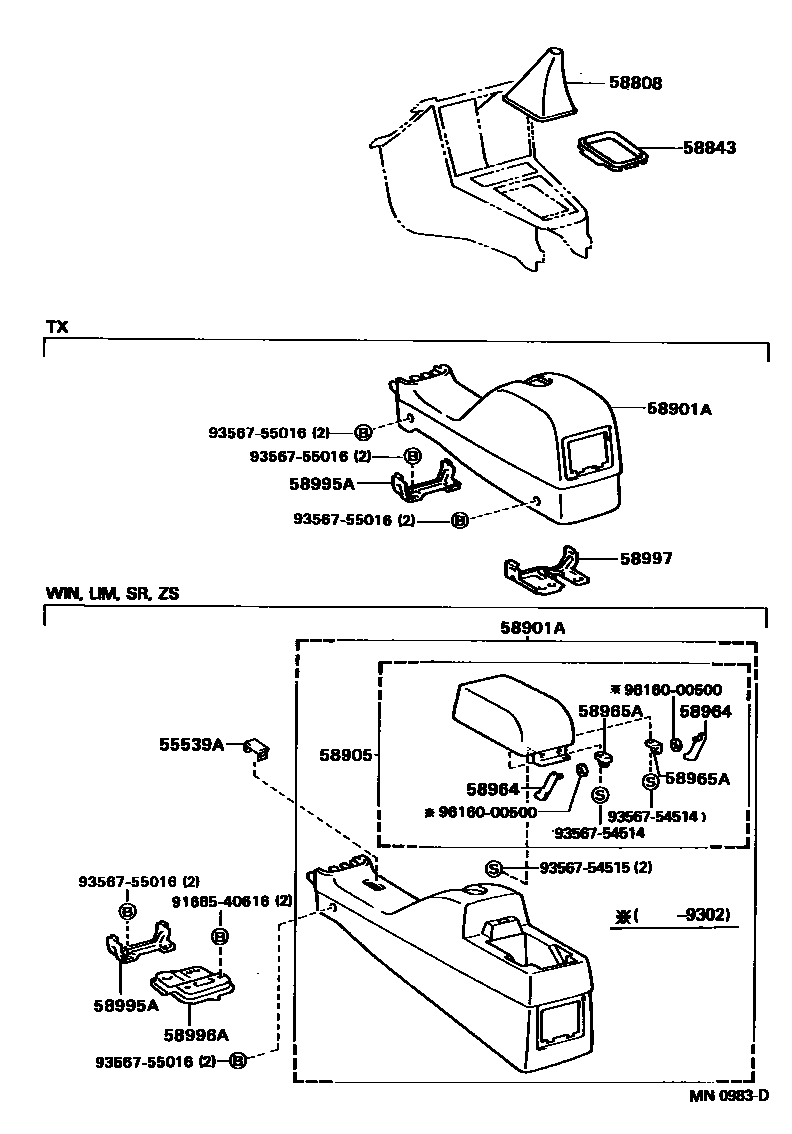

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58964 | Armrest box cover No. 1 stop | 58964-12040 · 58964-16010 · 58964-30040 · 58964-32040 · 58965-12040 · 58965-16010 |
| 58965A | Armrest box cover No. 2 stopper | 58965-12010 · 58965-20020 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-16060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-16060 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-16070 |
