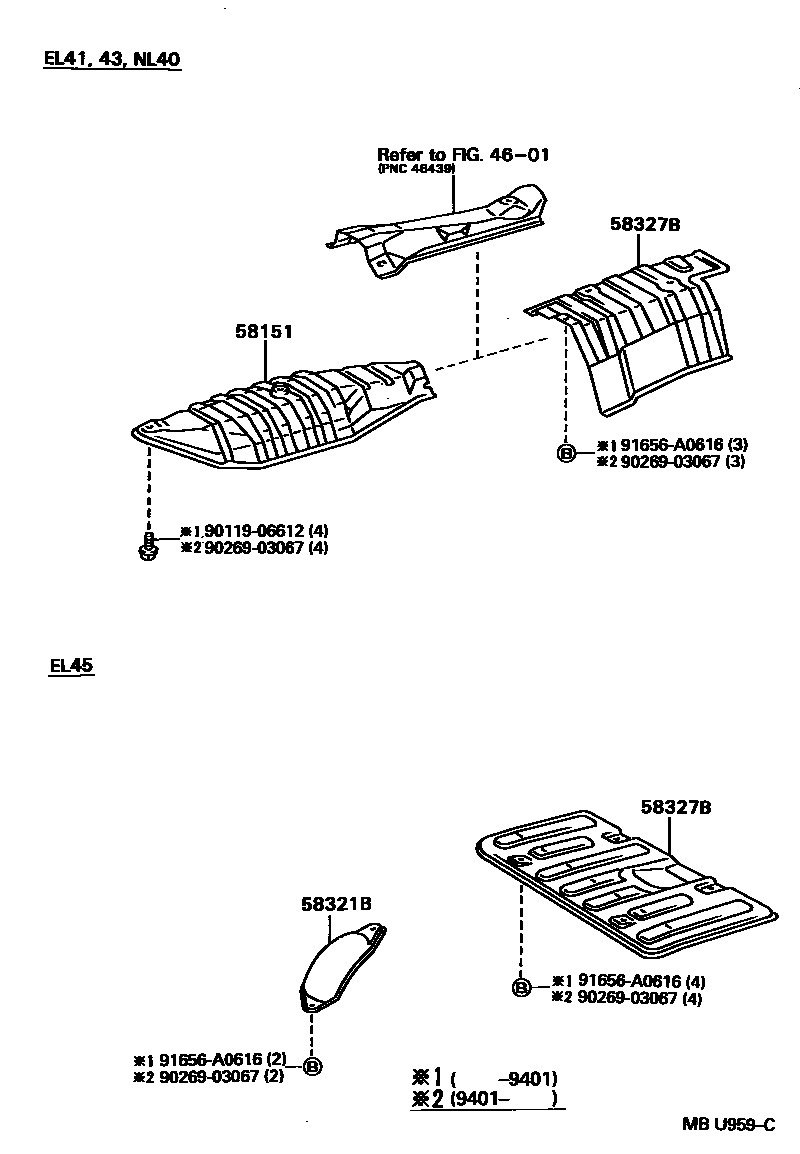

Toyota COROLLA 地板隔热垫 — Figure 5802
Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-10030 · 58151-10031 |
| 58321B | Rear Floor Insulating Mat No. 1 | 58321-10030 · 58321-10031 |
| 58327B | Main muffler heat insulation pad | 58327-10040 · 58327-10041 · 58327-10050 · 58327-10051 |
