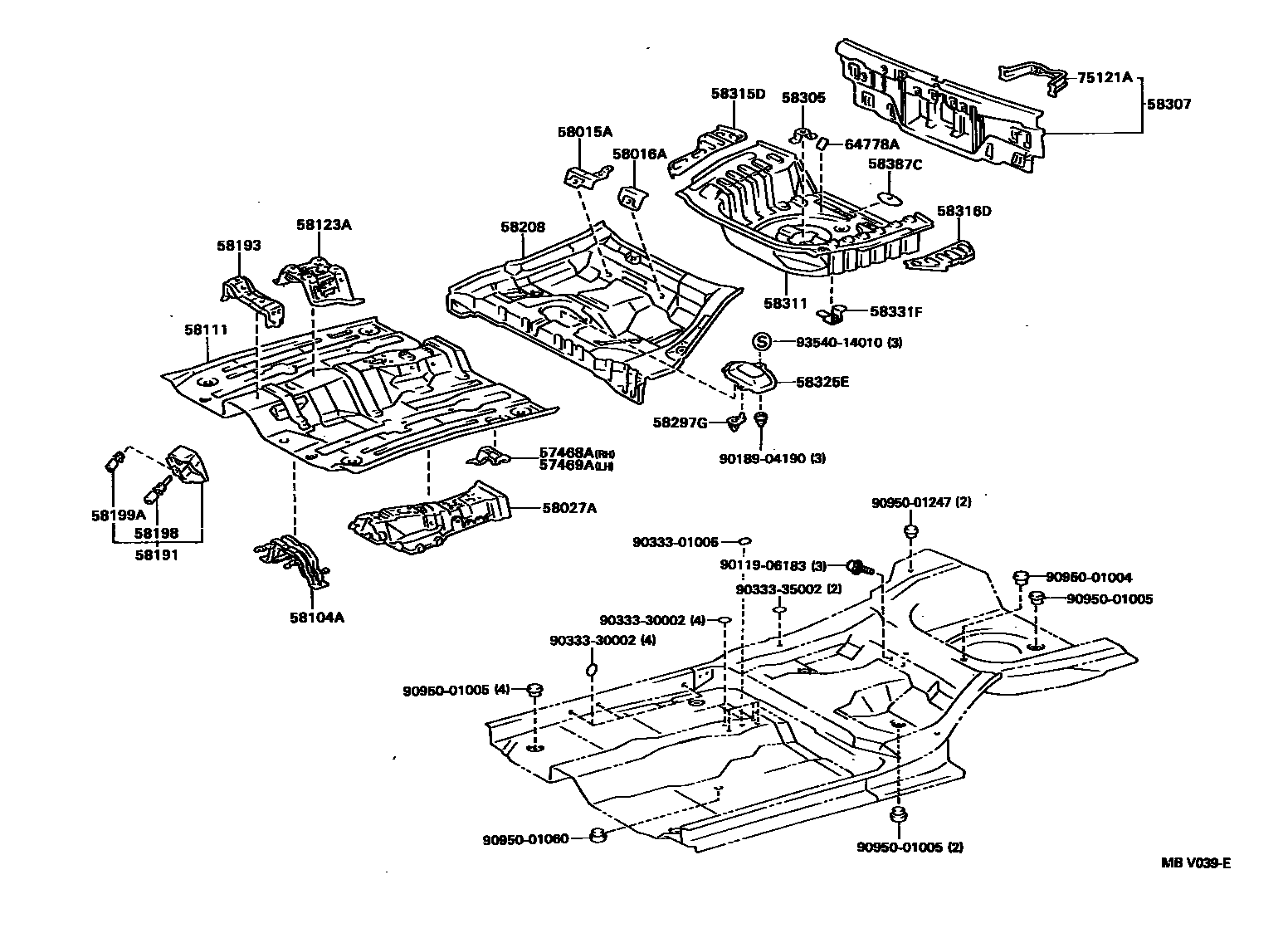

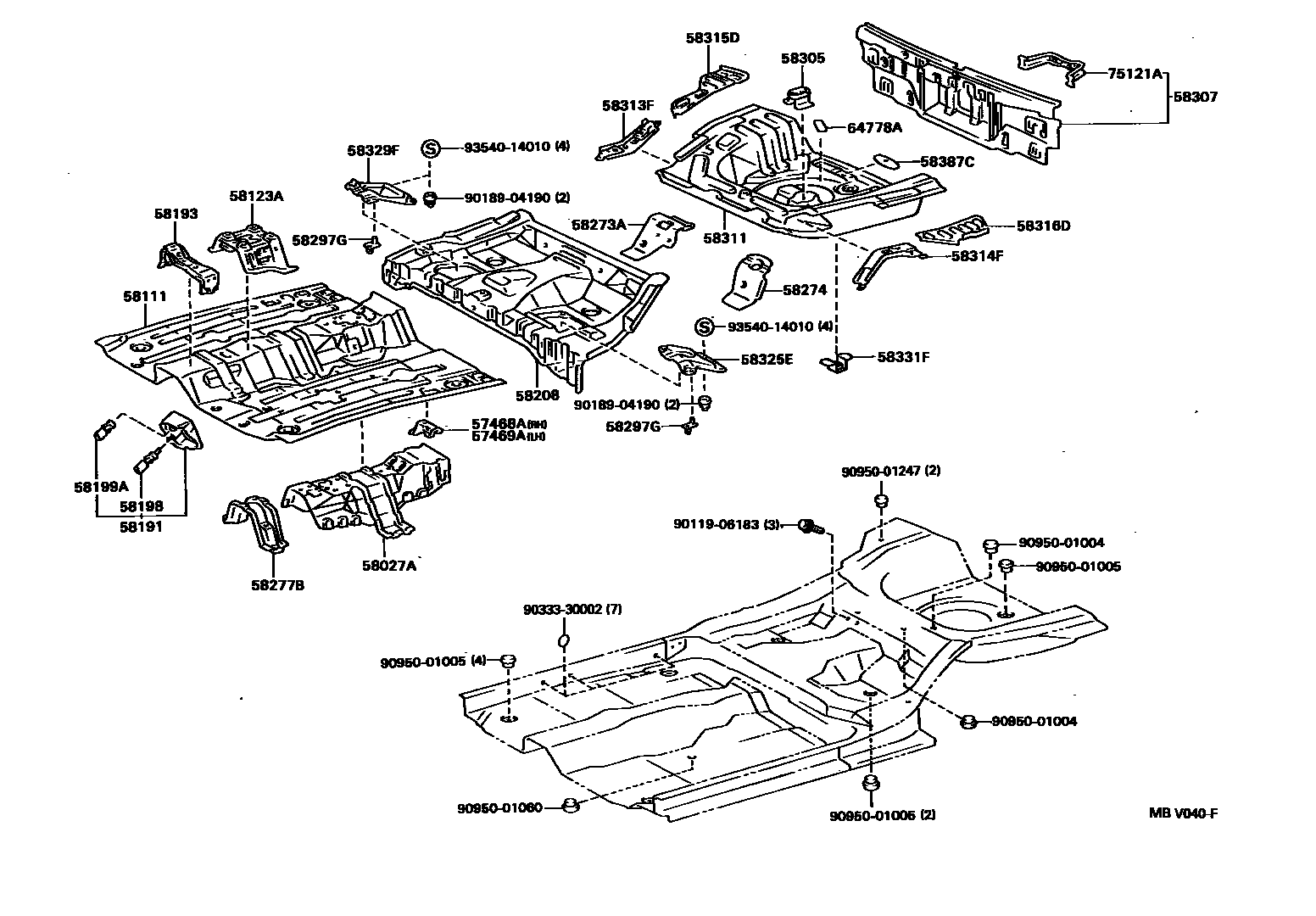

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57468A | Front right seat outer rear bracket | 57468-10030 |
| 57469A | Front left seat outer rear bracket | 57469-10030 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-10020 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-10020 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-16030 · 58027-16050 · 58027-16060 · 58027-16061 · 58027-16080 · 58027-16081 |
| 58104A | Three-way catalytic converter bracket sub-assembly | 58104-10040 · 58104-16010 · 58104-16011 |
| 58111 | front floor pan | 58111-16040 · 58111-16070 · 58111-16080 · 58111-16100 · 58111-16101 |
| 58123A | shift lever bracket | 58123-10040 · 58123-10050 |
| 58191 | Front floor footrest | 58191-16070 |
| 58193 | Dashboard bracket mounting bracket | 58193-10030 · 58193-16040 |
| 58198 | Footrest clip | 58198-16030 |
| 58199A | Footrest clip No. 2 | 58199-16020 |
| 58208 | central floor base | 58211-10140 · 58211-10150 · 58211-10151 |
| 58273A | Right seat belt anchor to center pillar reinforcement | 58273-10030 · 58273-10031 |
| 58274 | Seat belt anchor No. 1 to center floor reinforcement | 58274-10010 |
| 58277B | Drive shaft center bracket reinforcement | 58277-10020 |
| 58297G | Floor clip fasteners | 58297-10010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 · 58351-10030 |
| 58307 | Body lower back panel sub-assembly | 58307-16330 |
| 58311 | rear floor pan | 58311-10190 · 58311-10200 · 58311-16150 · 58311-16151 |
| 58313F | Rear floor pan to right side apron extension | 58313-10030 |
| 58314F | Rear floor pan to left side apron extension | 58314-10030 |
| 58315D | Rear floor pan right extension | 58315-16010 |
| 58316D | Rear floor pan left extension | 58316-16060 |
| 58325E | Rear floor access hole cover | 58325-10020 · 58325-10040 |
| 58329F | Rear floor manhole cover No. 2 | 58329-10010 |
| 58331F | Rear floor insulation pad bracket No. 3 | 58331-10010 · 58331-10011 |
| 58387C | Rear floor decorative panel | 58387-10010 |
| 64778A | Spare tire protection device | 64778-10020 · 64778-16020 |
| 75121A | Rear license plate bracket | 75121-16030 |
