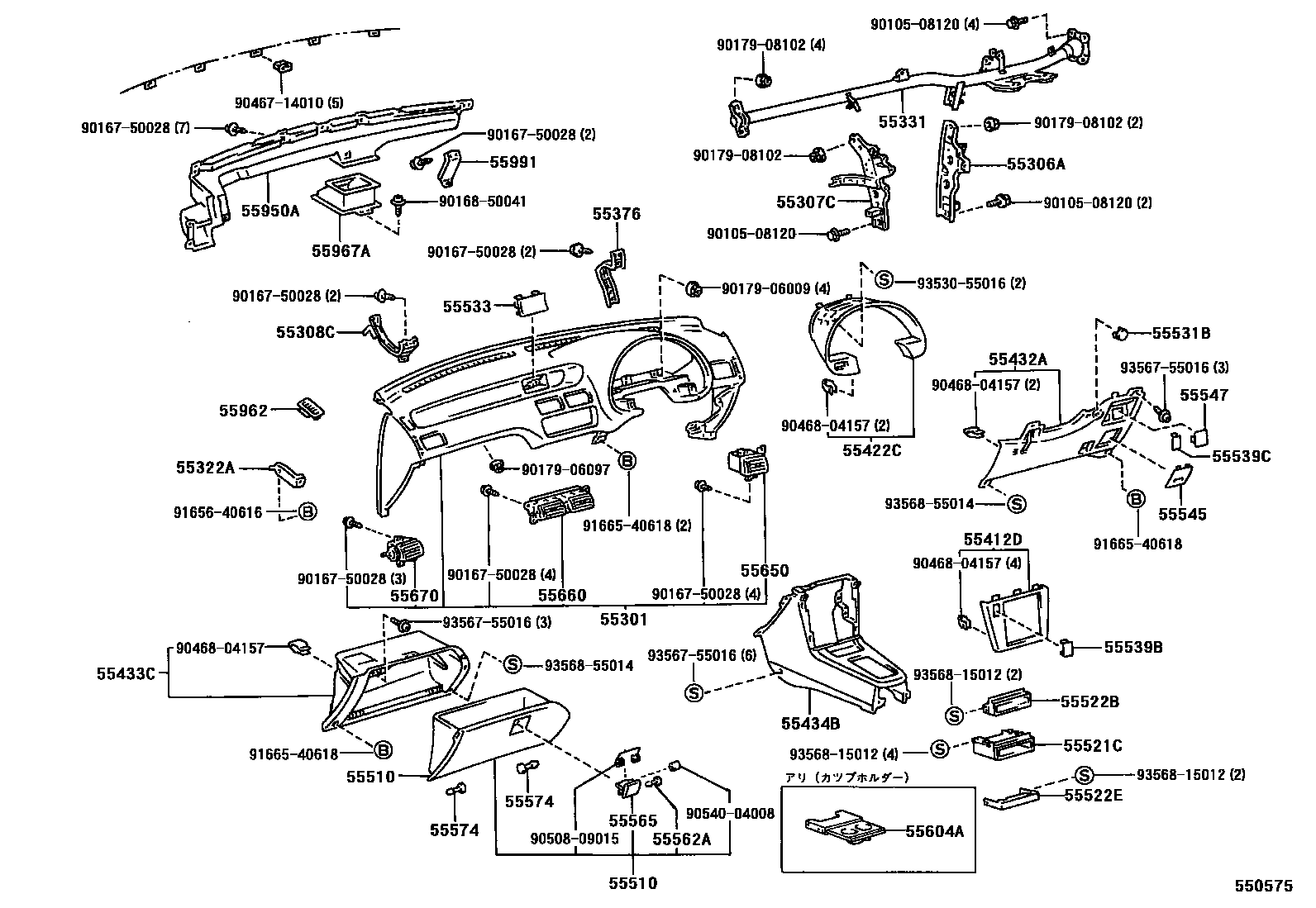

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-16080 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-16080 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-16040 |
| 55322A | Instrument panel bracket No. 2 | 55322-16040 |
| 55331 | Dashboard reinforcement | 55330-16070 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-16040 |
| 55422C | Center instrument cluster upper decorative panel | 55422-16020 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55522E | Coaster opening cover | 55522-16030 |
| 55562A | Glove box lid lock link | 55562-10010 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55604A | Dashboard cup holder sub-assembly | 55604-16030 · 55604-16031 · 55604-16032 |
| 55950A | Defroster nozzle assembly | 55950-16040 |
| 55967A | Lower defroster nozzle | 55967-16030 |
| 55991 | Defroster No. 1 air duct bracket | 55991-16010 |
