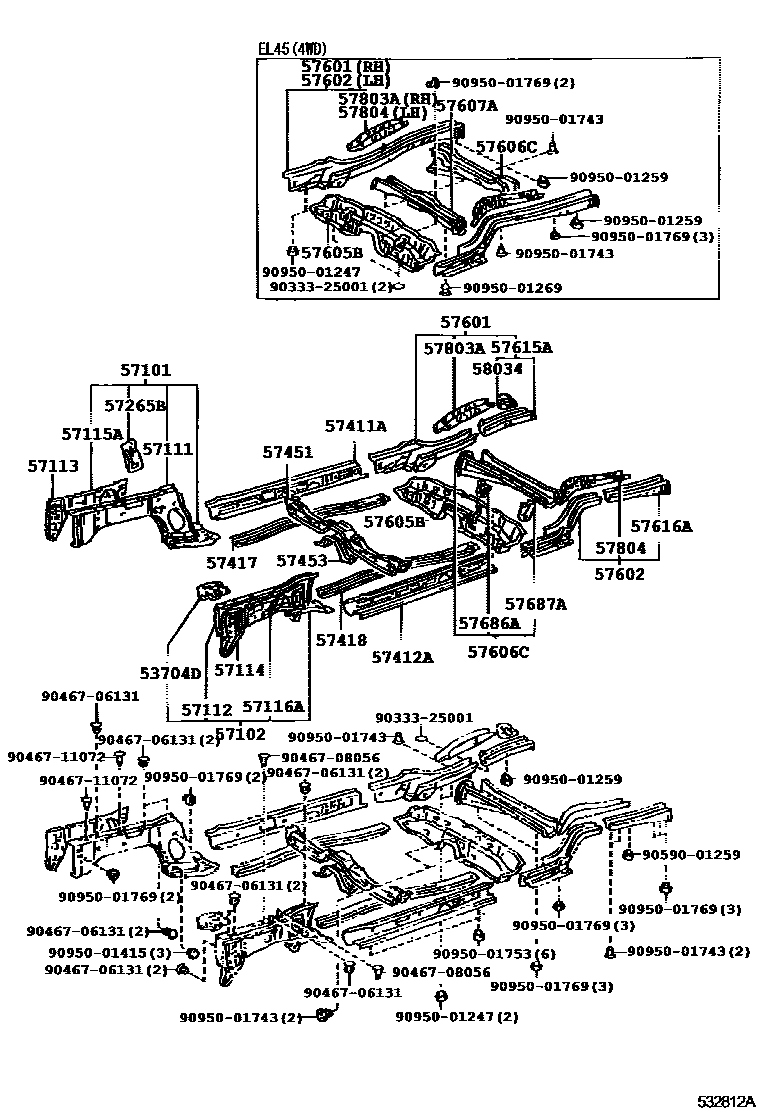

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53704D | Battery left side bracket sub-assembly | 53704-16020 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-16190 · 57101-16210 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-16170 · 57102-16280 |
| 57111 | Right front longitudinal beam | 57111-16140 · 57111-16160 |
| 57112 | Left front longitudinal beam | 57112-16120 · 57112-16140 |
| 57113 | Right front longitudinal beam extension | 57113-16070 |
| 57114 | Left front longitudinal beam extension | 57114-16070 |
| 57115A | Right front longitudinal beam outer panel | 57115-10050 |
| 57116A | Left front longitudinal beam outer panel | 57116-10050 |
| 57265B | Engine right side mounting bracket | 57265-16030 |
| 57411A | Floor right inner longitudinal beam | 57401-16160 |
| 57412A | Floor left inner longitudinal beam | 57402-16160 |
| 57417 | Front floor lower right reinforcement | 57417-16010 |
| 57418 | Front floor lower left reinforcement | 57417-16010 |
| 57451 | front floor cross member | 57408-16030 |
| 57453 | Front floor beam No. 3 | 57453-10020 · 57453-10021 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-16160 · 57601-16190 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-16160 · 57602-16190 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-10110 · 57605-16050 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-10100 · 57606-16090 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-10030 |
| 57615A | Rear floor right rear longitudinal member | 57615-16909 |
| 57616A | Rear floor left rear longitudinal member | 57616-16906 |
| 57686A | Fuel tank right rear mounting bracket | 57686-16030 |
| 57687A | Fuel tank left rear mounting bracket | 57687-16020 |
| 57803A | Rear floor right rear longitudinal beam reinforcement sub-assembly | 57803-16020 |
| 57804 | Rear floor left rear longitudinal beam reinforcement sub-assembly | 57804-16040 |
| 58034 | Rear exhaust pipe bracket sub-assembly | 58034-10010 |
