Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

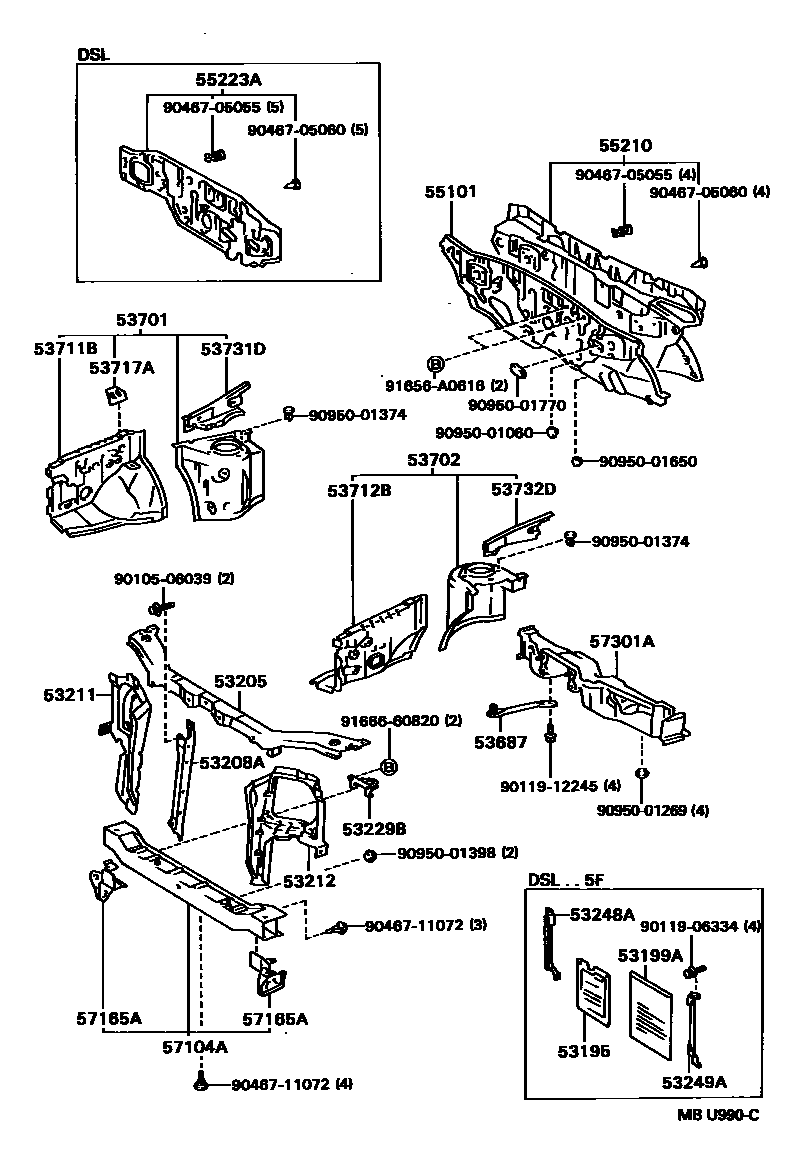

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53195 | Radiator louvers | 53195-16020 |
| 53199A | Radiator louver bag | 53199-16020 |
| 53205 | Radiator upper bracket sub-assembly | 53205-16090 · 53205-16110 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-16070 |
| 53211 | Radiator right side support | 53211-16090 |
| 53212 | Radiator left support | 53212-16090 |
| 53229B | Radiator No. 2 lower mounting bracket | 53229-16040 |
| 53248A | Radiator shutter right bracket | 53248-16040 |
| 53249A | Radiator shutter left bracket | 53249-16020 |
| 53687 | Right side bracket (underside of front suspension to steering beam) | 53687-10030 |
| 53701 | Right front fender fender sub-assembly | 53701-16170 · 53701-16190 · 53701-16191 |
| 53702 | Left front fender fender sub-assembly | 53702-16100 · 53702-16120 · 53702-16121 |
| 53711B | Right front fender front fender | 53711-16130 · 53711-16140 · 53711-16141 |
| 53712B | Left front fender front fender | 53712-16060 · 53712-16070 · 53712-16071 |
| 53717A | fender fender | 53717-10040 |
| 53731D | Right front fender to cowl side upper beam | 53731-16030 |
| 53732D | Left front fender to cowl side upper beam | 53732-16030 |
| 55101 | Front apron sub-assembly | 55101-16370 · 55101-16380 · 55101-16410 · 55101-16411 · 55101-16420 · 55101-16421 |
| 55210 | Front wall insulation pad assembly | 55210-16100 |
| 55223A | Front wall outer heat insulation pad | 55223-10040 · 55223-10041 |
| 57104A | Front cross member sub-assembly | 57104-16900 · 57104-16901 |
| 57165A | No. 2 front cross member reinforcement | 57165-16030 · 57166-16020 |
| 57301A | Steering housing support beam sub-assembly | 57301-10060 · 57301-10061 · 57301-10070 · 57301-10071 · 57301-10080 · 57301-10081 |
