Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 2 PNC and OE references.

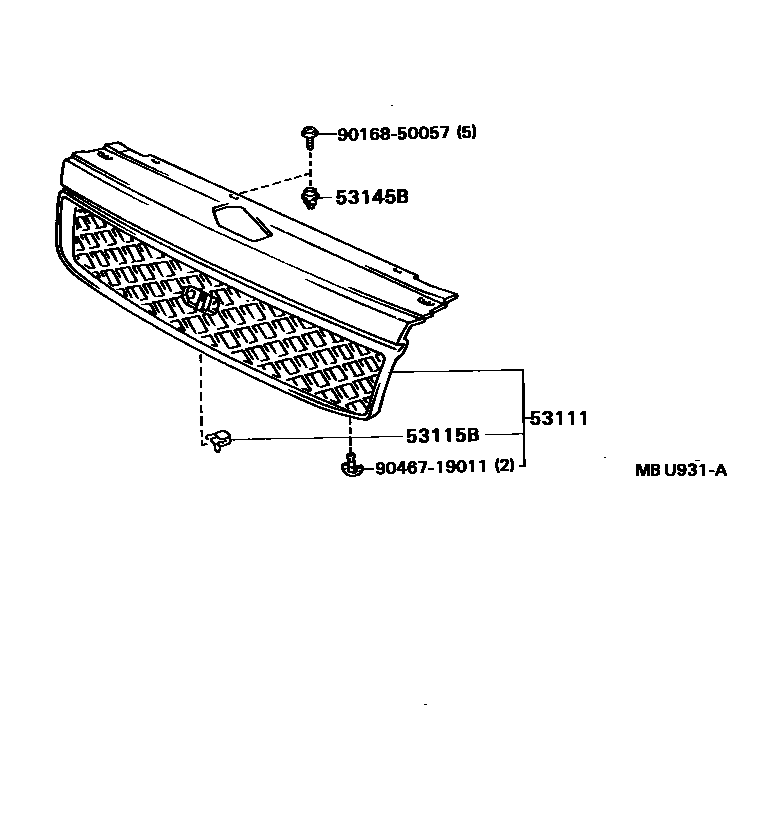

Toyota COROLLA radiator grille EPC diagram — MBU931A
radiator grille — MBU931A (199009 – 199208)
Toyota COROLLA radiator grille EPC diagram — MBX039
radiator grille — MBX039 (199208 – 999999)

PNC and OE references

PNCPart nameOE numbers
53115BRadiator grille bracket53115-16010
53145BRadiator grille trim clip53145-16010
