Toyota COROLLA 后保险杠及附件 — Figure 5202

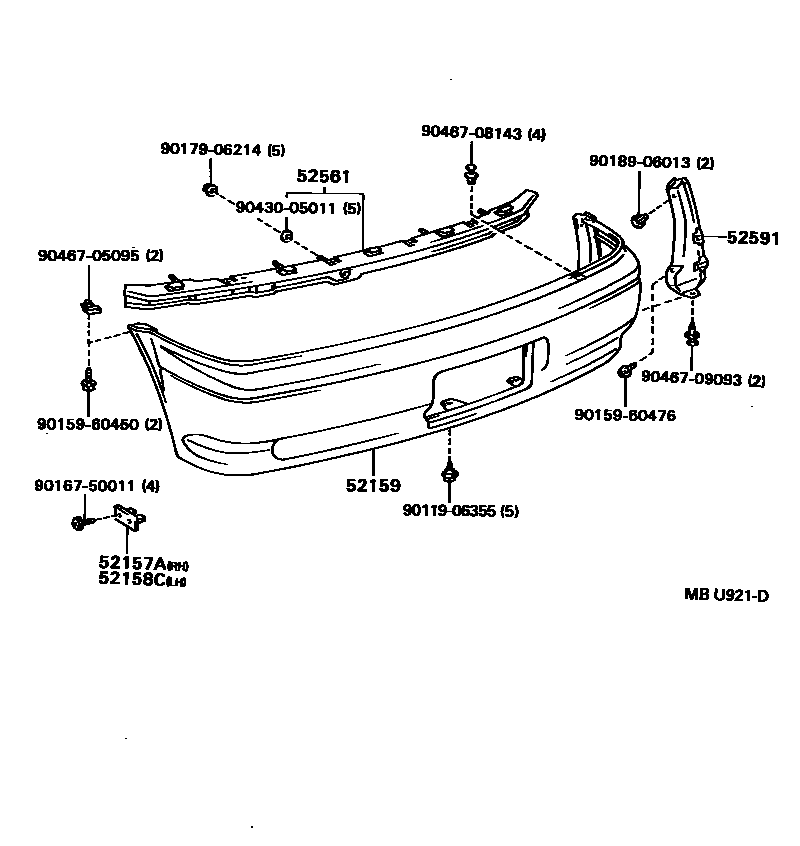

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52157A | Rear bumper No. 2 right side bracket | 52157-16100 |
| 52158C | Rear bumper No. 2 left side bracket | 52157-16100 |
| 52561 | Rear bumper upper center fixing bracket | 52561-16040 |
| 52591 | Rear bumper right seal | 52591-16060 |
