Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

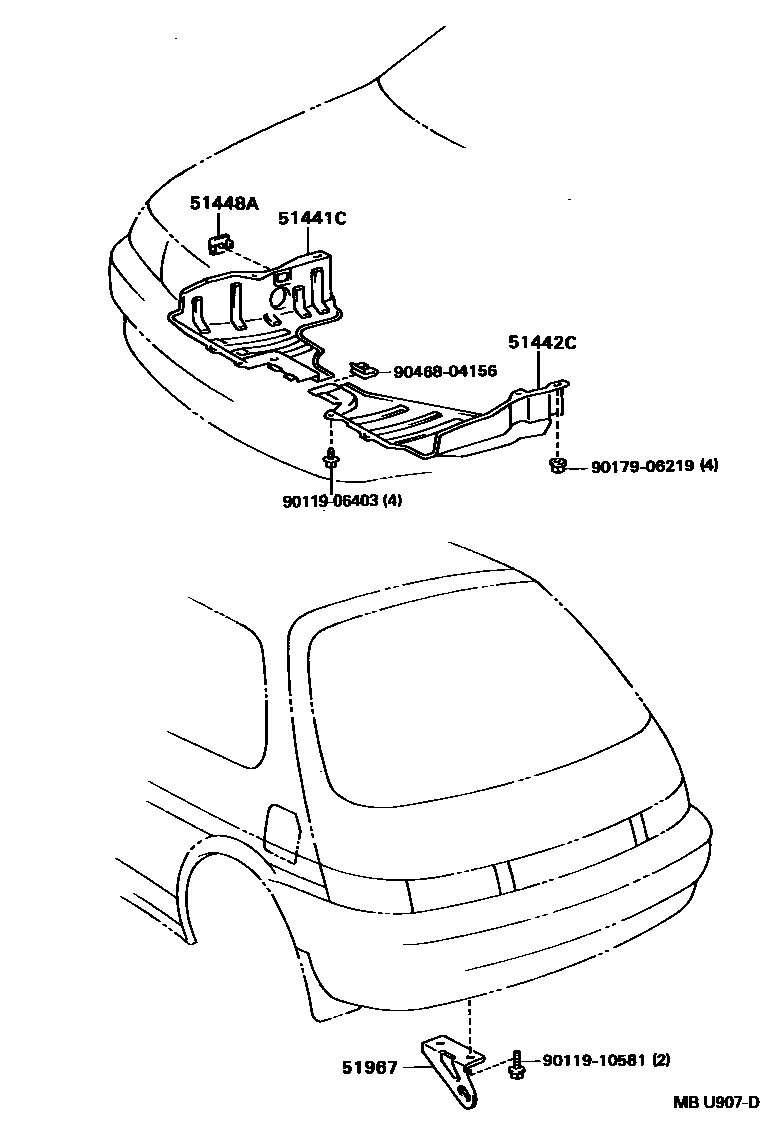

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51441C | Engine right bottom cover | 51441-10100 · 51441-10130 |
| 51442C | Engine left bottom cover | 51442-10050 · 51442-10051 · 51442-10060 · 51442-10061 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51967 | Rear transport hook | 51968-16110 |
