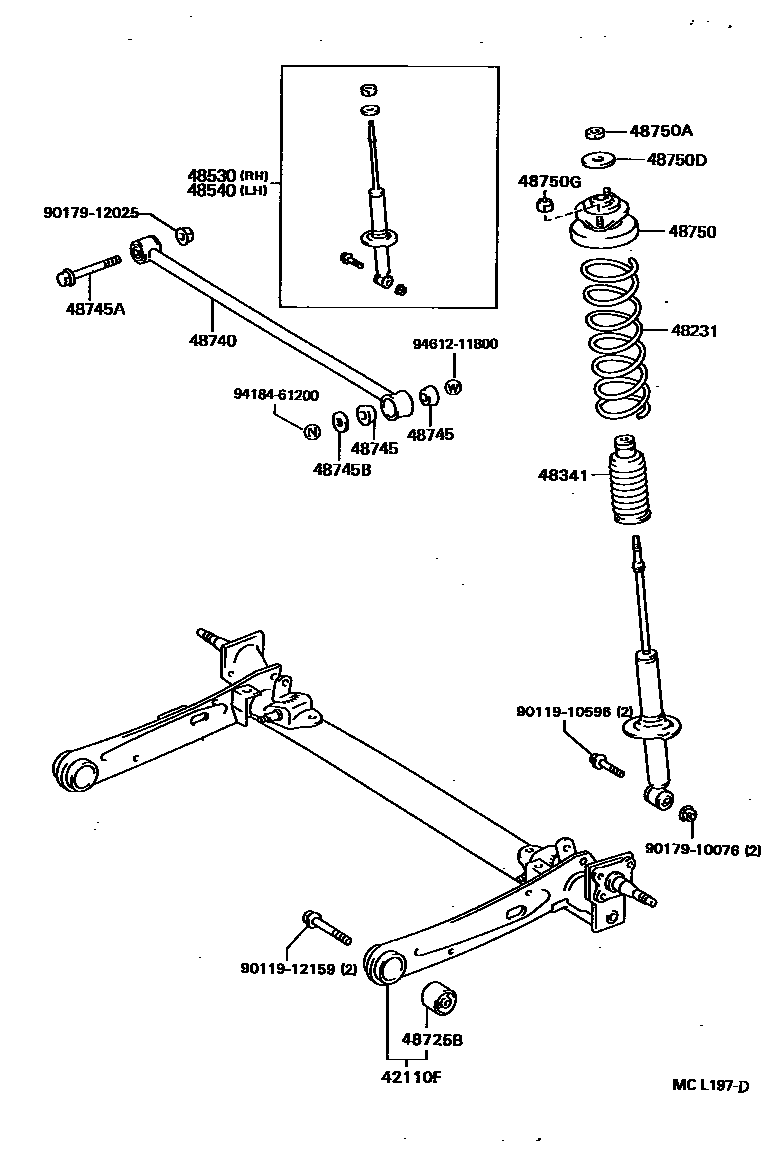

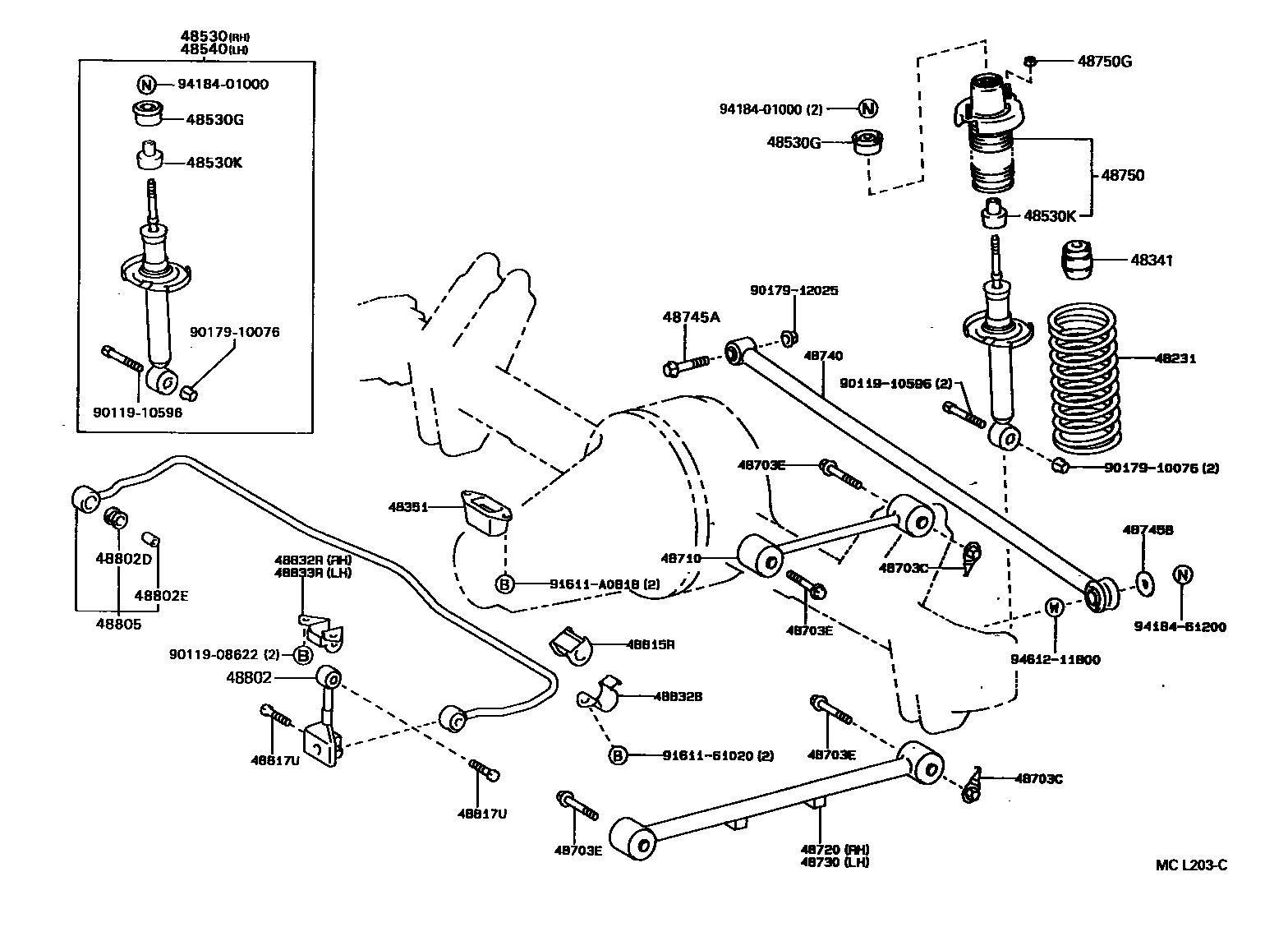

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-16100 · 42110-16110 · 42110-16120 · 42110-16130 |
| 48231 | rear coil spring | 48231-10240 · 48231-16420 · 48231-16430 · 48231-16460 · 48231-16470 · 48231-16510 · 48231-16680 · 48231-16690 |
| 48341 | Rear spring buffer block | 48341-10111 · 48341-16060 |
| 48351 | Differential case buffer block | 48351-12020 |
| 48530 | Right rear shock absorber assembly | 48530-19265 · 48530-19275 · 48530-19305 · 48530-19315 · 48530-19325 · 48530-19445 · 48530-19465 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01051 |
| 48530K | Rear shock absorber No.2 cushion | 90948-01052 |
| 48540 | Left rear shock absorber assembly | 48530-19265 · 48530-19275 · 48530-19305 · 48530-19315 · 48530-19325 · 48530-19445 · 48530-19465 |
| 48703C | Nut (for rear suspension arm) | 90179-12092 |
| 48703E | Bolts (for rear suspension arms) | 90119-12213 |
| 48710 | Upper control arm assembly | 48710-16060 · 48710-16070 · 48710-16090 · 48710-16100 |
| 48720 | Right lower control arm assembly | 48720-16050 · 48720-16060 |
| 48725B | Rear suspension No. 1 arm bushing | 48725-10031 |
| 48730 | Left lower control arm assembly | 48720-16050 · 48720-16060 |
| 48740 | Rear transverse control rod assembly | 48740-10020 · 48740-16041 · 48740-16070 |
| 48745 | Lateral control rod bushing | 90385-18015 |
| 48745A | Hexagonal bolt (for lateral control lever) | 90105-12070 |
| 48745B | Lateral control lever bumper washer | 90201-12037 |
| 48750 | Rear suspension support assembly | 48750-16051 · 48750-16060 · 48750-16070 · 48750-16080 |
| 48750A | Nut (for rear mount to rear shock absorber) | 90179-12061 · 94184-01000 |
| 48750D | Block (for rear mount to rear shock absorber) | 90948-02100 |
| 48750G | Nut (for rear suspension mount) | 90179-08206 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-16010 · 48803-16010 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11014 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-10010 · 48805-16131 · 48805-16150 · 48805-16160 |
| 48815R | Rear stabilizer bar bushing | 48815-14050 · 48815-20020 · 48815-22010 · 48815-30070 |
| 48817U | Bolt (for rear stabilizer bar) | 91111-41040 · 91112-41040 |
| 48832B | Rear stabilizer bar bracket No. 2 | 48832-22020 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-16030 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-16010 |
