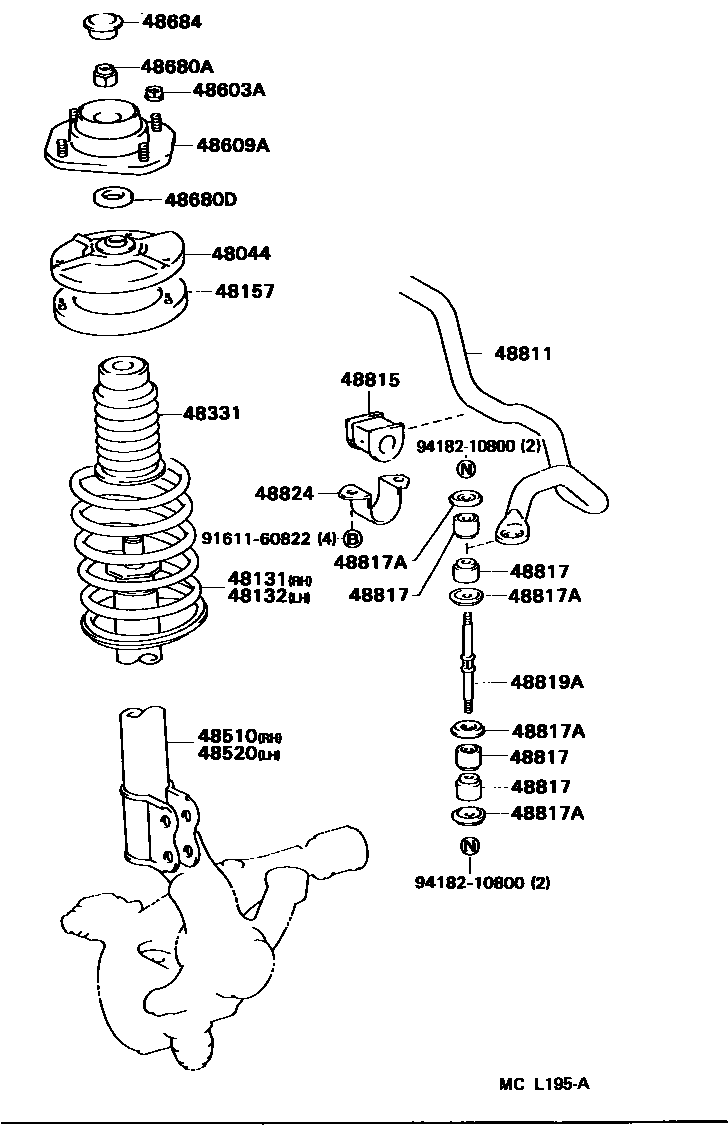

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48044 | No. 1 front spring seat sub-assembly | 48044-10030 |
| 48131 | Right front coil spring | 48131-16530 · 48131-16620 · 48131-16640 · 48131-16650 · 48131-16660 · 48131-16760 · 48131-16830 · 48131-16850 · 48131-1G010 · 48131-1G030 · 48131-1G140 · 48131-1G150 · 48131-1G250 · 48131-1G260 · 48131-1G261 · 48131-1G270 · 48131-1G271 · 48131-1G500 · 48131-1G550 |
| 48132 | Left front coil spring | 48131-16530 · 48131-16620 · 48131-16640 · 48131-16650 · 48131-16660 · 48131-16760 · 48131-16830 · 48131-16850 · 48131-1G010 · 48131-1G030 · 48131-1G140 · 48131-1G150 · 48131-1G250 · 48131-1G260 · 48131-1G261 · 48131-1G270 · 48131-1G271 · 48131-1G500 · 48131-1G550 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-16040 |
| 48331 | No. 1 front spring buffer block | 48331-16060 |
| 48510 | Right front shock absorber assembly | 48510-16210 · 48510-16300 · 48510-16301 · 48510-16310 · 48510-16330 · 48510-16340 · 48510-16350 · 48510-16351 |
| 48520 | Left front shock absorber assembly | 48520-16050 · 48520-16080 · 48520-16081 · 48520-16090 · 48520-16110 · 48520-16120 · 48520-16130 · 48520-16131 |
| 48603A | Nut (for front suspension mount) | 90179-08206 |
| 48609A | Front suspension support sub-assembly | 48609-16140 · 48609-16150 · 48609-16160 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-10010 |
| 48811 | front stabilizer bar | 48811-10290 · 48811-16200 · 48811-16201 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-10080 · 48815-14130 · 48815-16160 |
| 48817 | Front stabilizer bar cushion | 48817-10020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48819A | front stabilizer bar bolt | 48819-10010 |
| 48824 | front stabilizer bar bracket | 48824-20040 |
