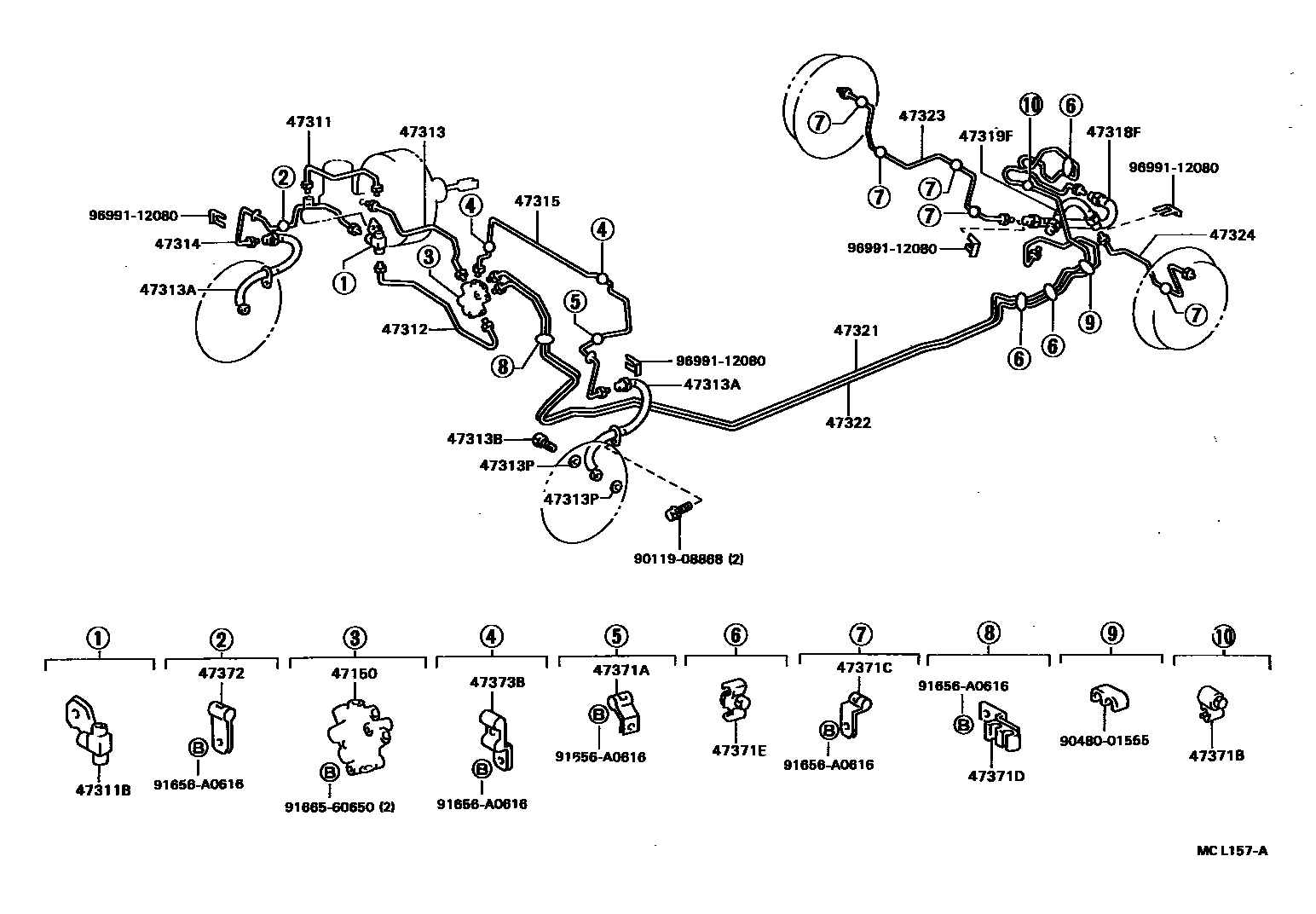

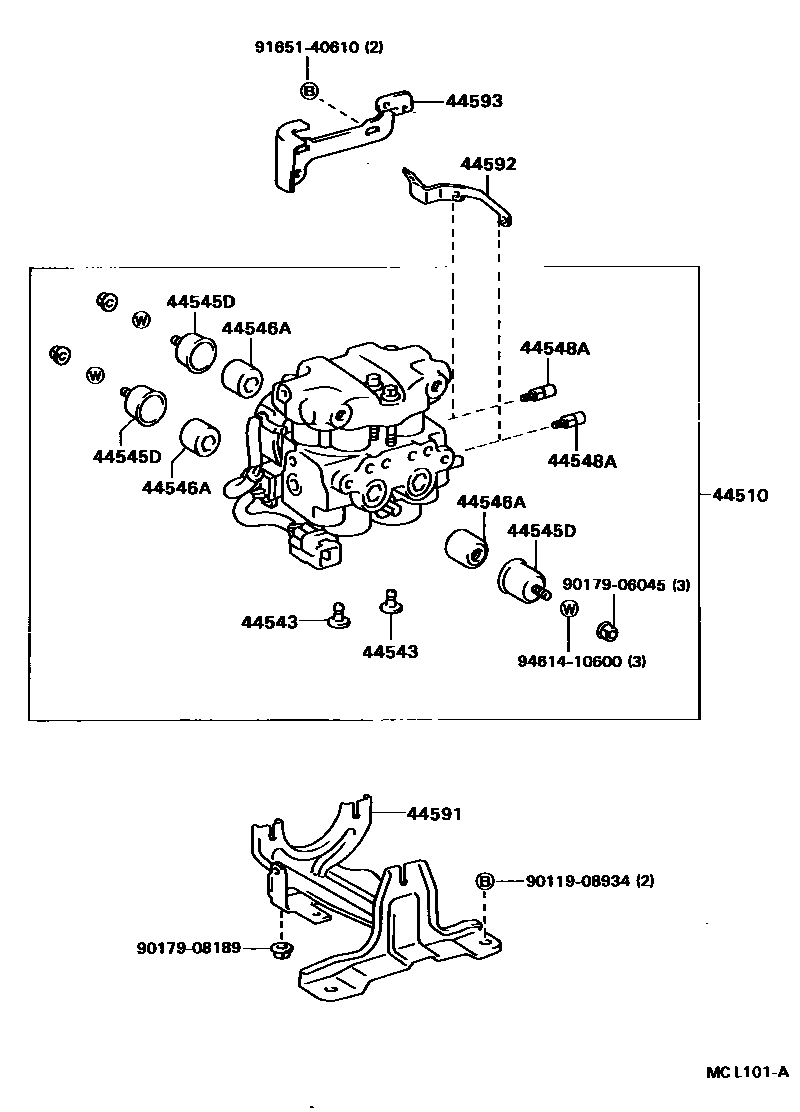

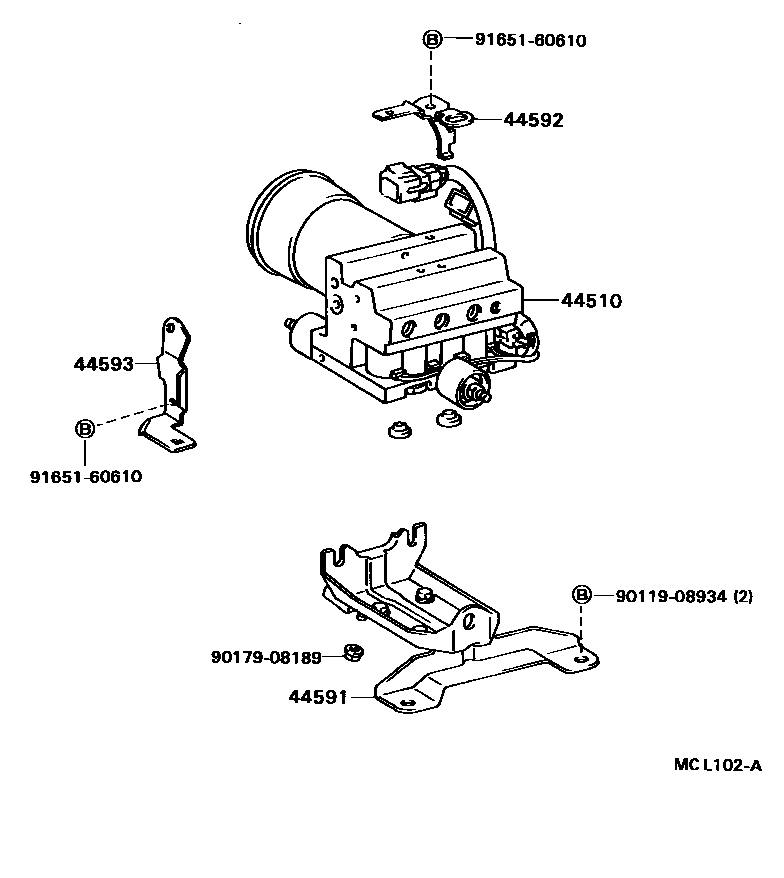

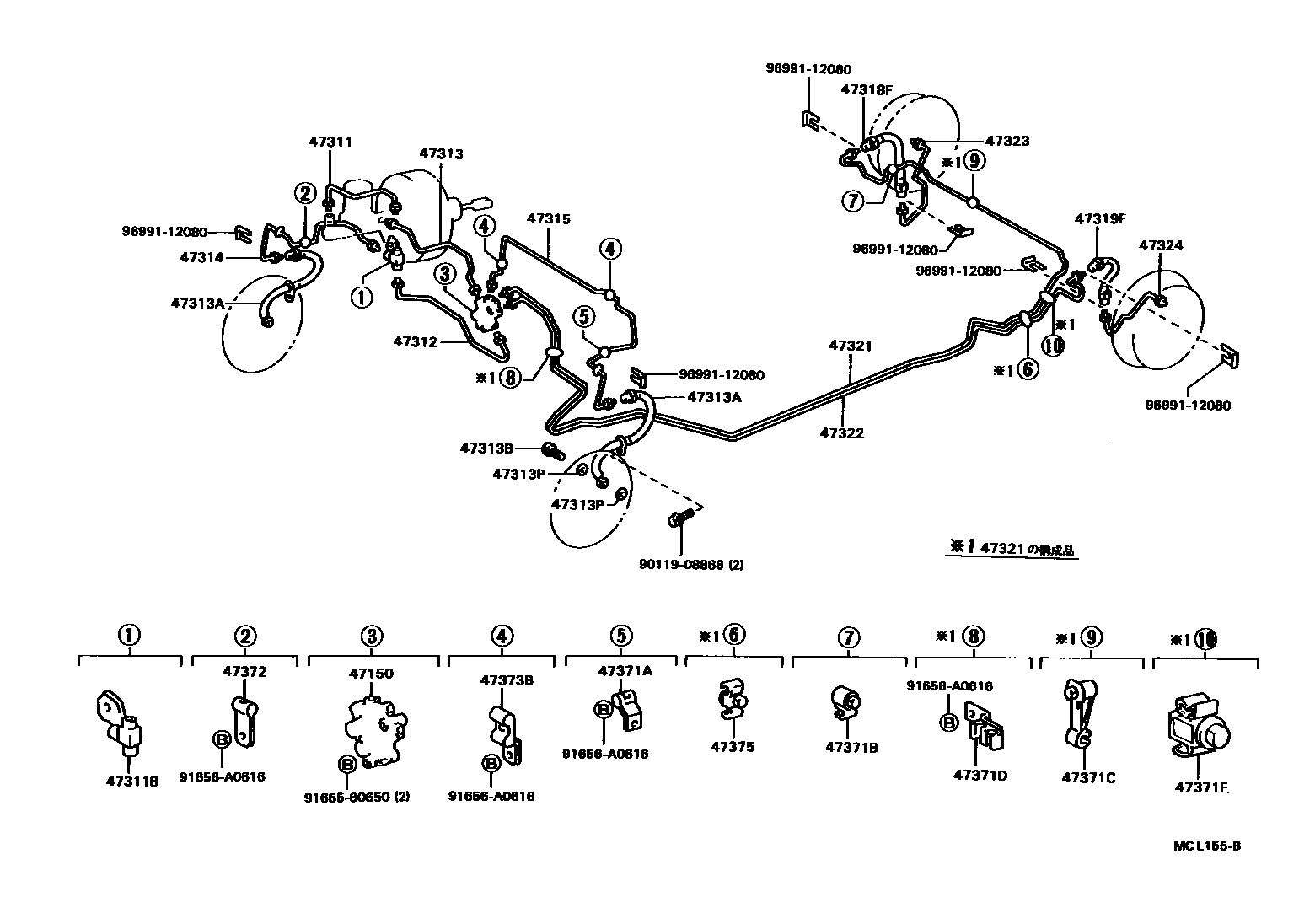

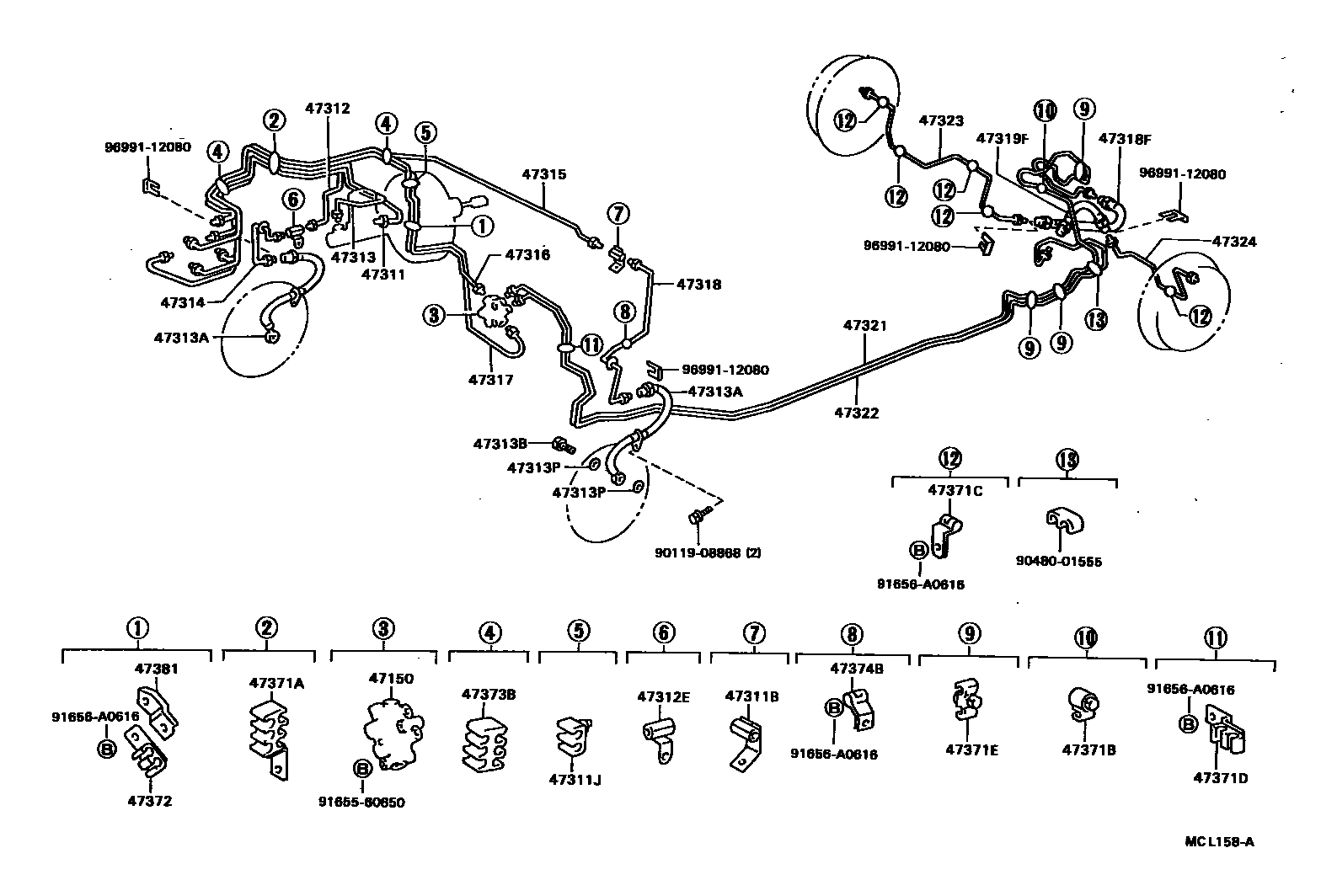

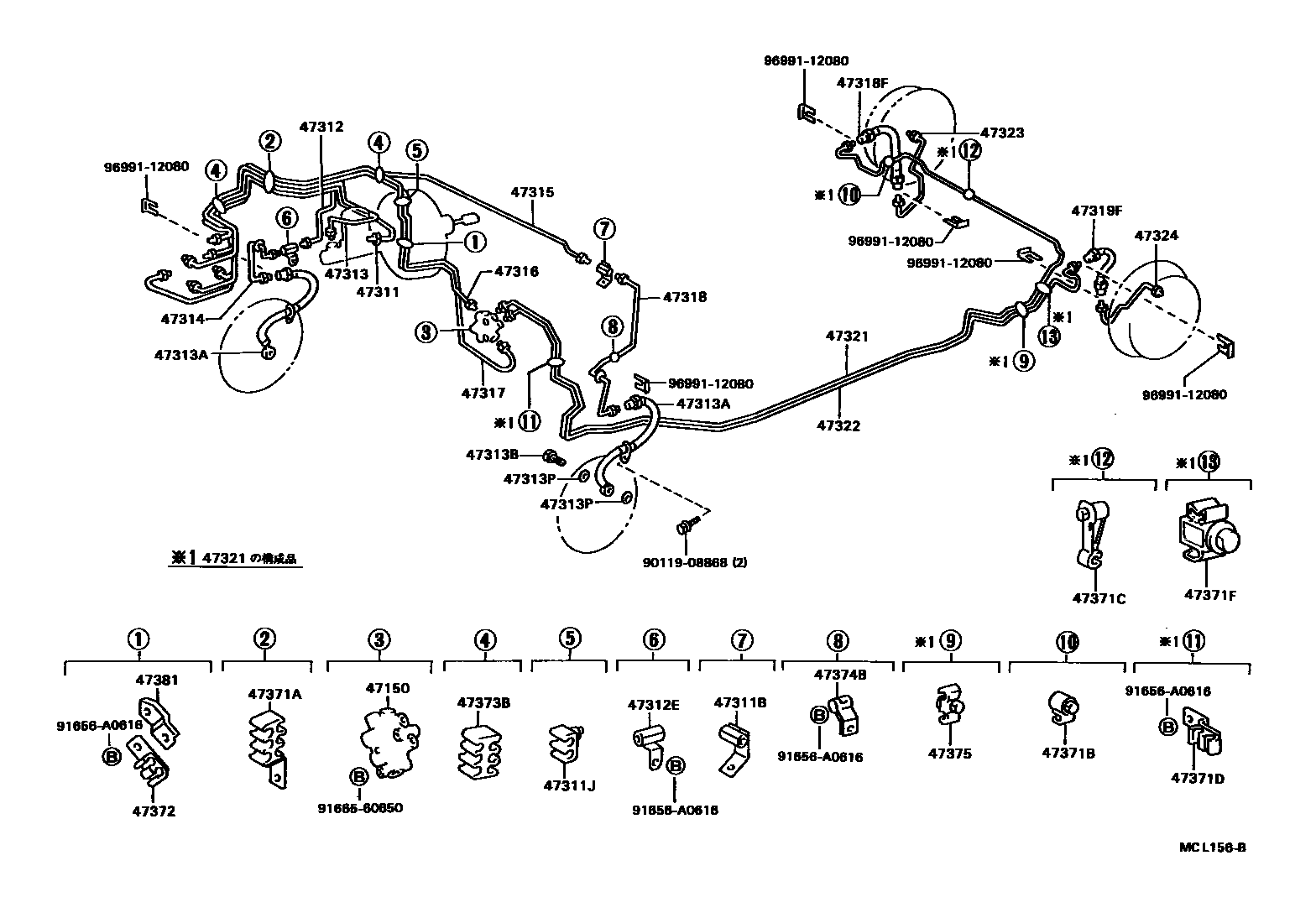

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-10040 · 44510-16010 · 44510-16060 |
| 44543 | rubber cap | 44543-10010 |
| 44545D | Brake actuator bolt mount | 44545-10010 |
| 44546A | Brake actuator bolt cushion | 44546-10010 · 44546-16010 |
| 44548A | Brake actuator guard bolt | 44548-10010 · 44548-16010 |
| 44591 | No. 1 brake actuator bracket | 44591-10010 · 44591-10011 · 44591-16010 · 44591-16011 |
| 44592 | No. 2 brake actuator bracket | 44592-10010 · 44592-16010 |
| 44593 | No. 3 brake actuator bracket | 44593-10010 · 44593-16010 |
| 47150 | Proportional valve assembly | 47150-12050 · 47150-12060 · 47150-20130 · 47150-20240 · 47150-20250 |
| 47311 | No. 1 front brake pipe | 47311-10180 · 47311-16120 · 47311-16130 · 47311-16140 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10168 · 90413-10259 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-01573 |
| 47312 | No. 2 front brake pipe | 47312-16100 · 47312-16110 · 47312-16120 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10169 |
| 47313 | No. 3 front brake pipe | 47313-16120 · 47313-16130 · 47313-16140 |
| 47313A | No. 1 front flexible hose | 90947-02644 · 90947-02645 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-10230 · 47314-16090 |
| 47315 | No. 5 front brake pipe | 47315-16080 · 47315-16090 · 47315-16100 |
| 47316 | No. 6 front brake pipe | 47316-16010 · 47316-16020 |
| 47317 | No. 7 front brake pipe | 47317-16010 · 47317-16020 |
| 47318 | No. 8 front brake pipe | 47318-18010 |
| 47318F | Right rear flexible hose | 90947-02603 · 90947-02643 |
| 47319F | Left rear flexible hose | 90947-02603 · 90947-02638 |
| 47321 | No. 1 rear brake pipe | 47321-16060 · 47321-16070 · 47321-16090 |
| 47322 | No. 2 rear brake pipe | 47322-16050 · 47322-16060 · 47322-16080 |
| 47323 | No. 3 rear brake pipe | 47323-16120 · 47323-16130 · 47323-16140 |
| 47324 | No. 4 rear brake pipe | 47324-16110 · 47324-16120 · 47324-16130 |
| 47371A | No. 1 brake pipe clamp | 47371-10020 · 90461-06055 |
| 47371B | No. 6 brake pipe clamp | 47371-10100 |
| 47371C | No. 7 brake pipe clamp | 47371-10110 · 90461-10763 |
| 47371D | No. 8 brake pipe clamp | 47371-16030 · 47371-30010 |
| 47371E | No. 9 brake pipe clamp | 47371-10050 |
| 47371F | No. 10 brake pipe clamp | 47371-16010 |
| 47372 | No. 2 brake pipe clamp | 47371-10150 · 90461-10738 |
| 47373B | No. 3 brake pipe clamp | 90464-00478 · 90949-01207 |
| 47374B | No. 4 brake pipe clamp | 90461-06055 |
| 47375 | No. 5 brake pipe clamp | 47371-10080 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-10070 |
