Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

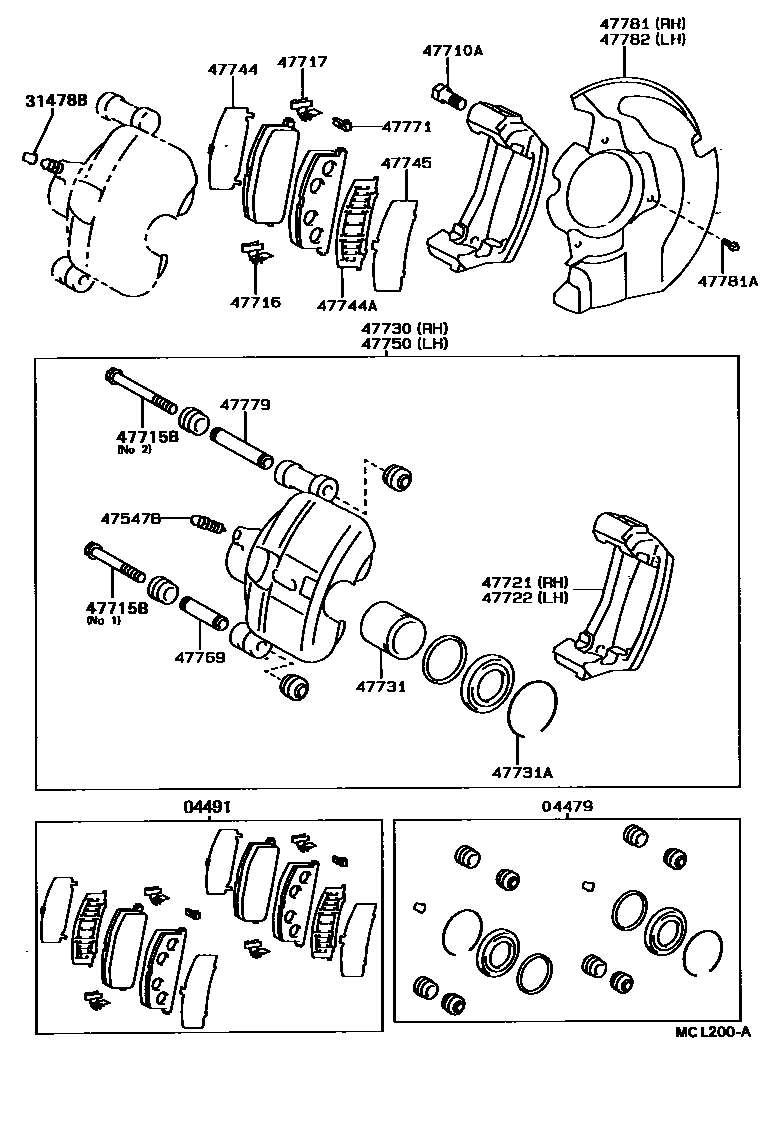

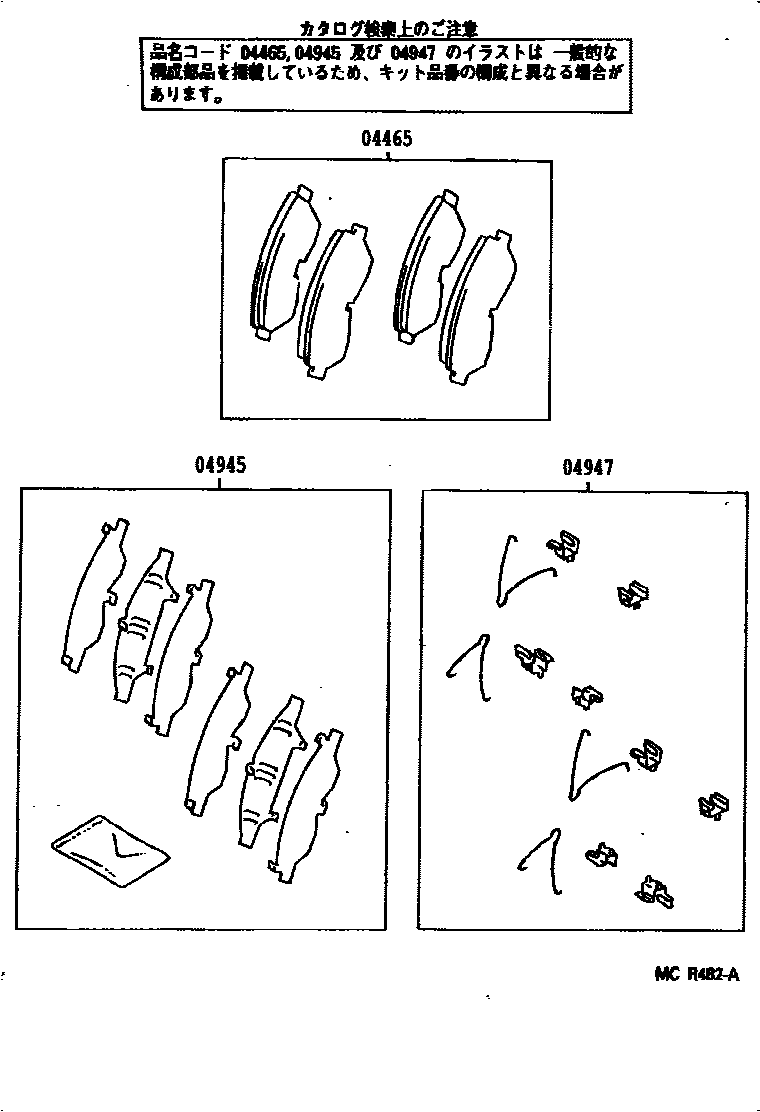

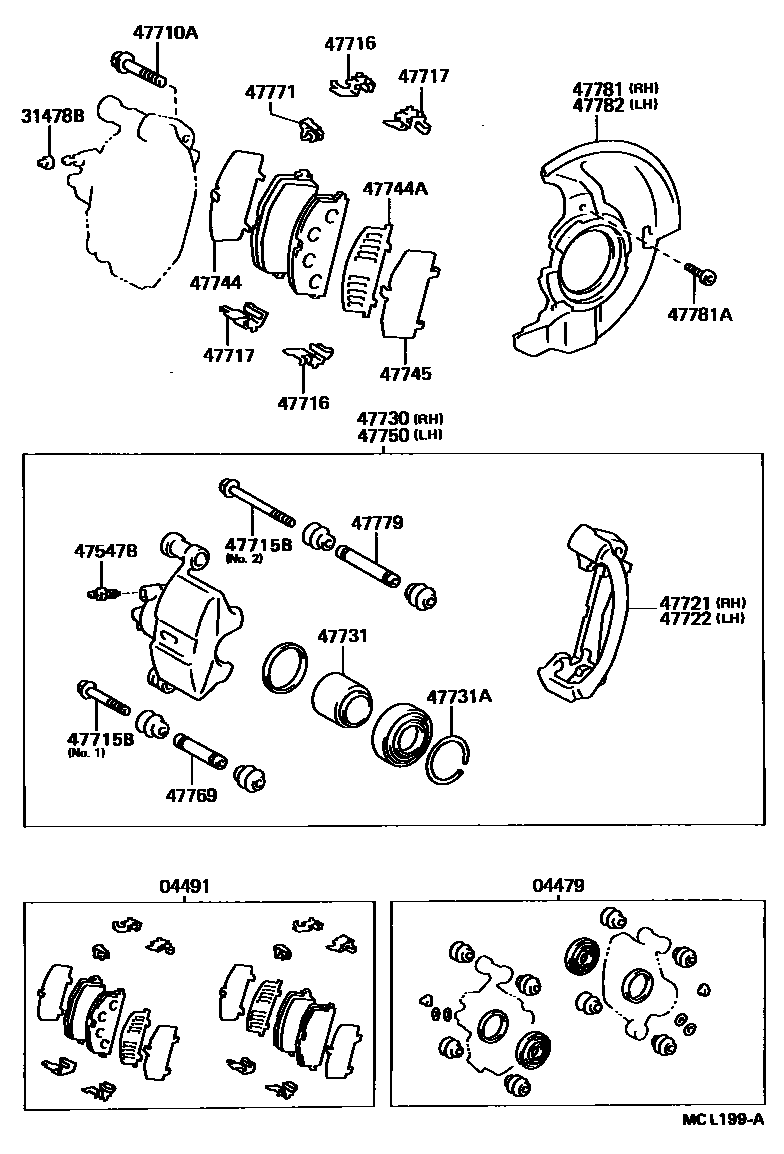

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-10040 · 04465-20060 · 04465-21010 |
| 04479 | Front disc brake cylinder assembly | 04479-10070 · 04479-12091 · 04479-16021 |
| 04491 | Front disc brake pad assembly | 04491-10180 · 04491-10210 · 04491-10211 · 04491-10230 · 04491-10231 · 04491-10240 · 04491-10241 |
| 04945 | Front silencer gasket assembly | 04945-20040 · 04945-32110 · 04945-32120 |
| 04947 | Front disc brake mounting kit | 04947-20060 · 04947-32010 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90119-12040 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90119-09003 · 90119-09004 · 90119-09007 · 90119-09008 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-20140 · 47716-32031 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-20140 · 47717-32031 |
| 47721 | Right front disc brake cylinder retainer | 47721-10010 · 47721-12120 · 47721-16010 · 47721-16040 |
| 47722 | Left front disc brake cylinder retainer | 47721-10010 · 47721-12120 · 47721-16010 · 47721-16040 |
| 47730 | Right front disc brake cylinder assembly | 47730-10100 · 47730-10110 · 47730-16080 · 47730-16090 |
| 47731 | Front disc brake piston | 47731-12150 · 47731-16020 · 47731-16040 |
| 47731A | retaining ring (for front disc brake piston) | 90522-61001 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-16011 · 47744-20050 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47742-20050 · 47742-32040 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-20050 · 47745-32040 |
| 47750 | Left disc brake cylinder assembly | 47750-10100 · 47750-10110 · 47750-16080 · 47750-16090 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-12030 · 47769-20010 |
| 47771 | No. 1 pad wear indicator plate | 47771-12050 · 47771-20030 · 47771-32010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-16010 · 47779-20010 |
| 47781 | Right front disc brake dust cover | 47781-10060 · 47781-10070 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90109-06134 |
| 47782 | Left front disc brake dust cover | 47782-10060 · 47782-10070 |
