Toyota COROLLA 制动助力器和真空管 — Figure 4703

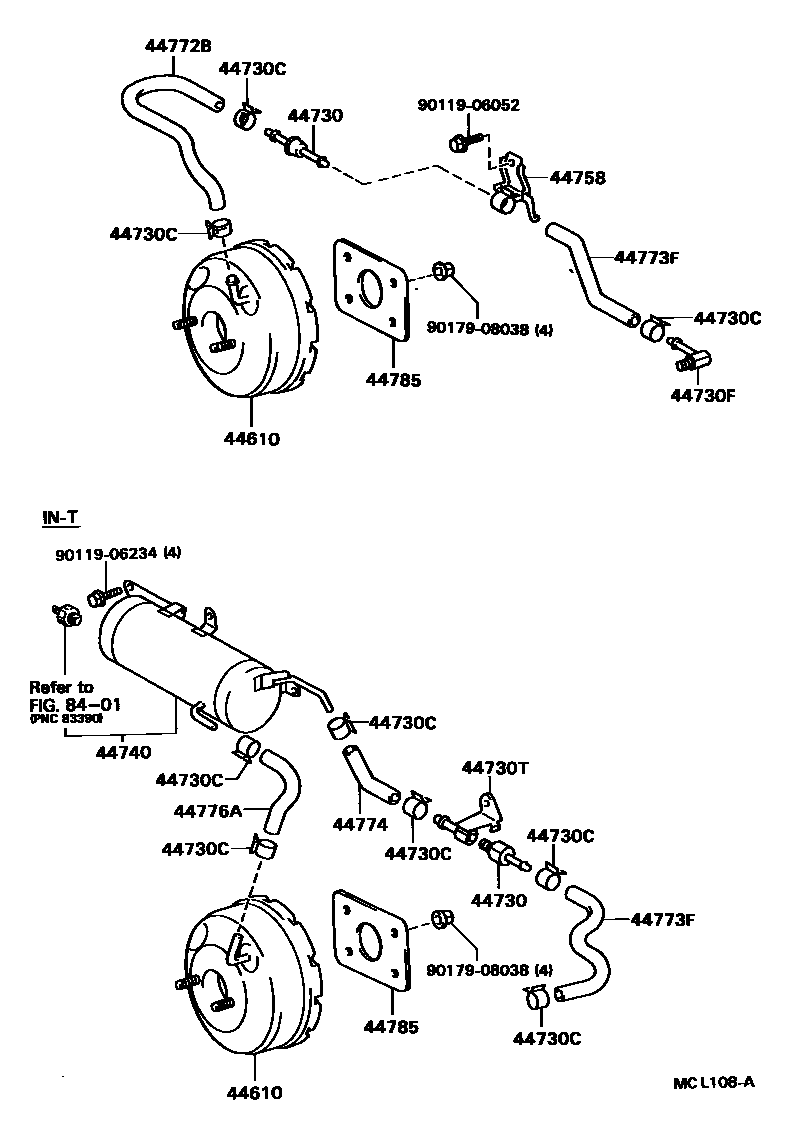

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-16251 · 44610-16260 · 44610-16280 · 44610-16290 · 44610-16440 · 44610-16460 · 44610-16470 · 44610-16490 · 44610-16500 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-60050 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90407-51002 |
| 44730T | Connector (for vacuum check valve) | 90404-52032 |
| 44740 | Vacuum liquid tank assembly | 44740-16020 |
| 44758 | Vacuum check valve bracket | 44758-16070 |
| 44772B | Hoses (check valve to brake booster) | 44772-16100 |
| 44773F | Hoses (connector to check valve) | 44773-16090 · 44773-16100 · 44773-16110 |
| 44774 | Hoses (joints to connector tubes) | 44774-16030 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-16020 |
| 44785 | brake booster pad | 44785-10020 |
