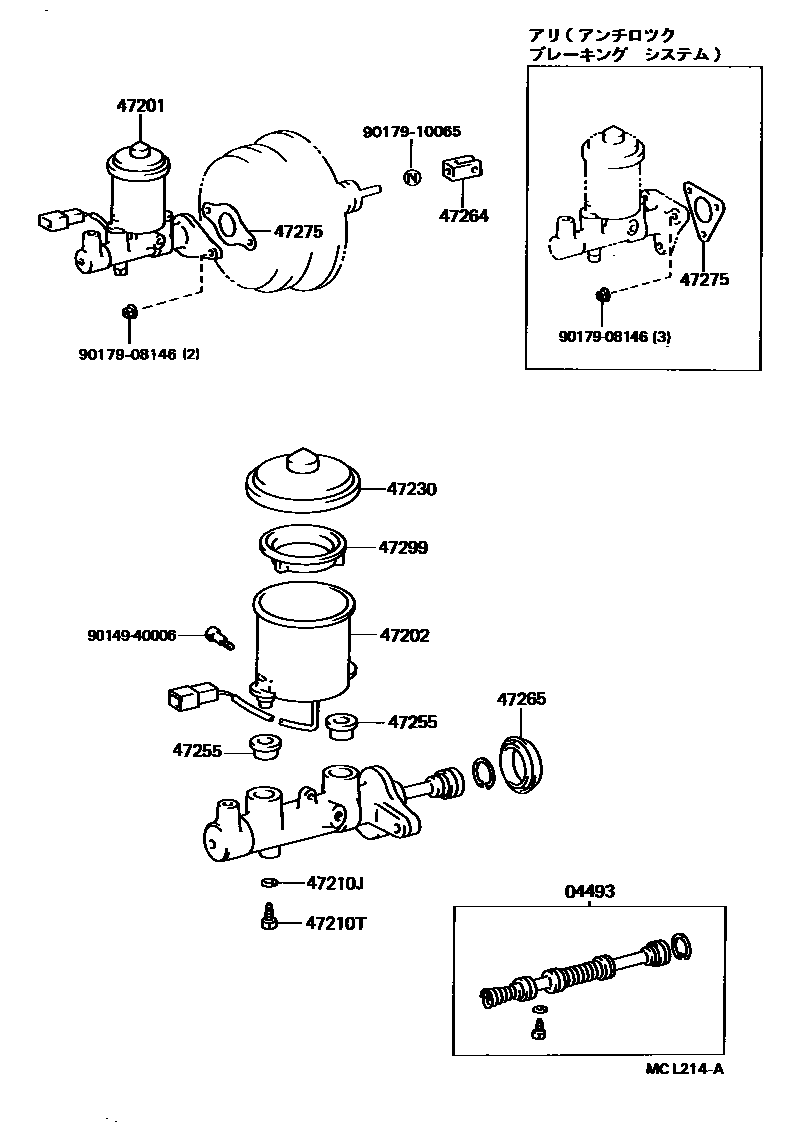

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-10130 · 04493-12180 · 04493-16030 · 04493-20210 |
| 47201 | Brake master cylinder sub-assembly | 47201-10160 · 47201-16190 · 47201-18010 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47203-10010 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-16010 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-16020 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-12020 · 47275-14010 · 47275-32010 |
| 47299 | Brake master cylinder reservoir filter | 47299-16010 |
