Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

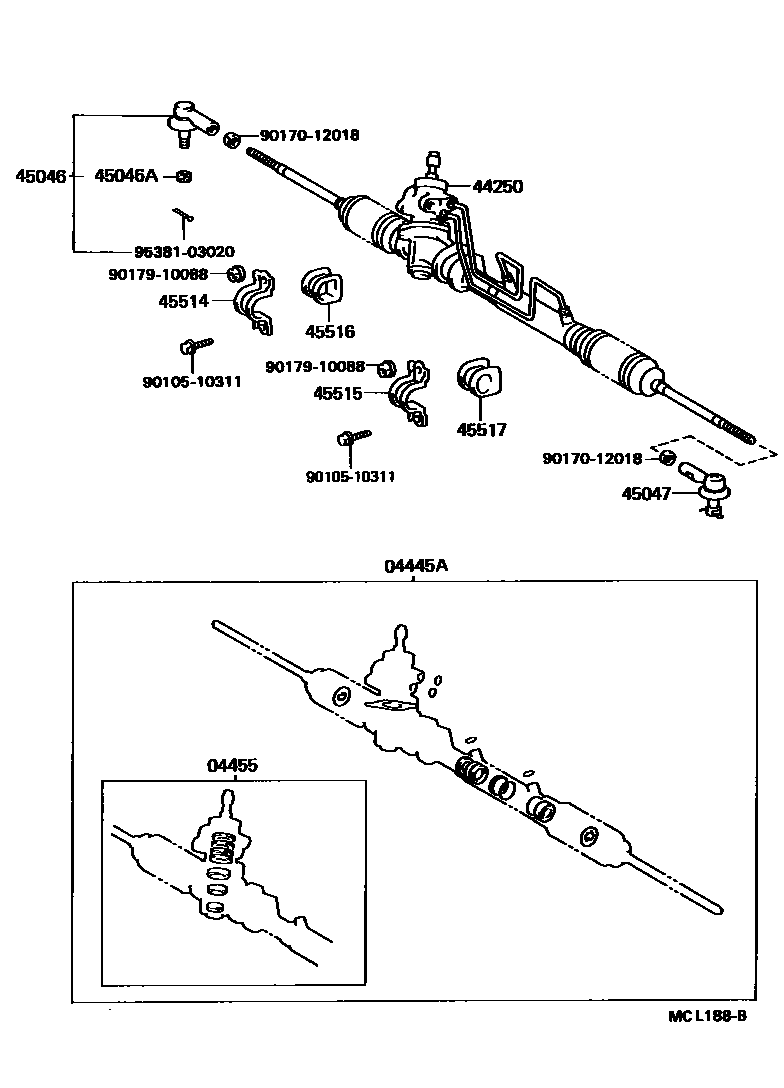

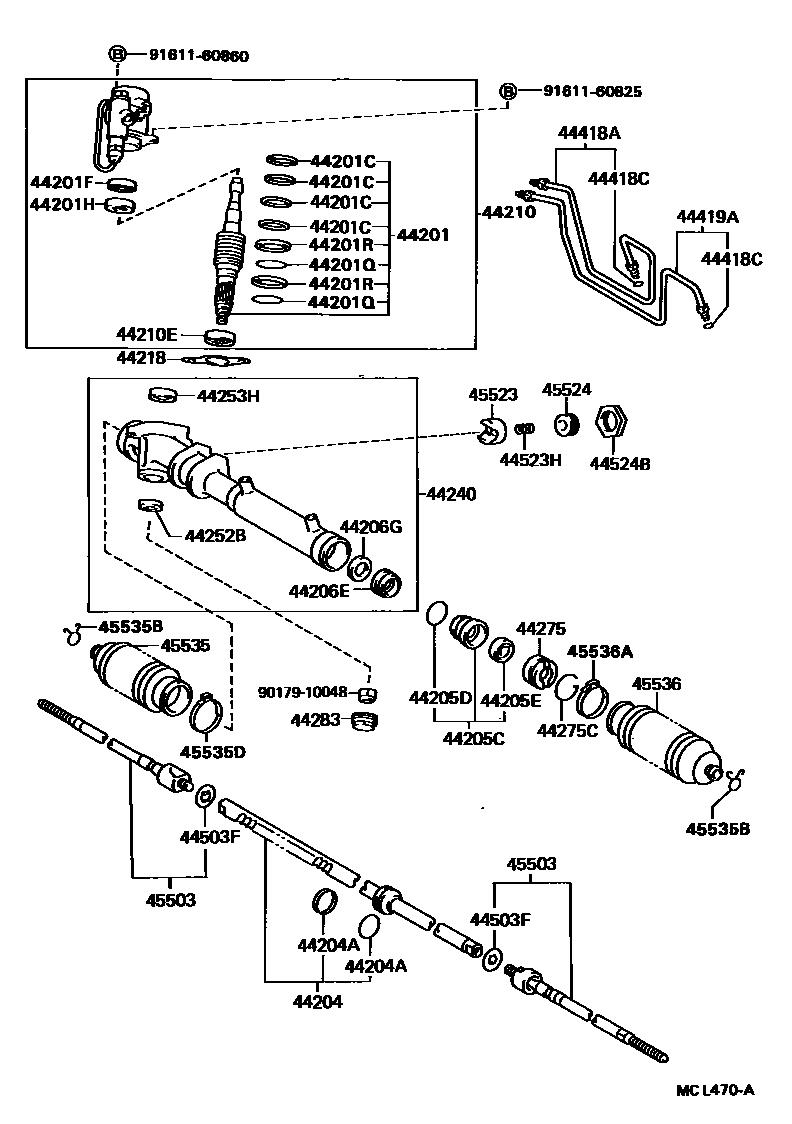

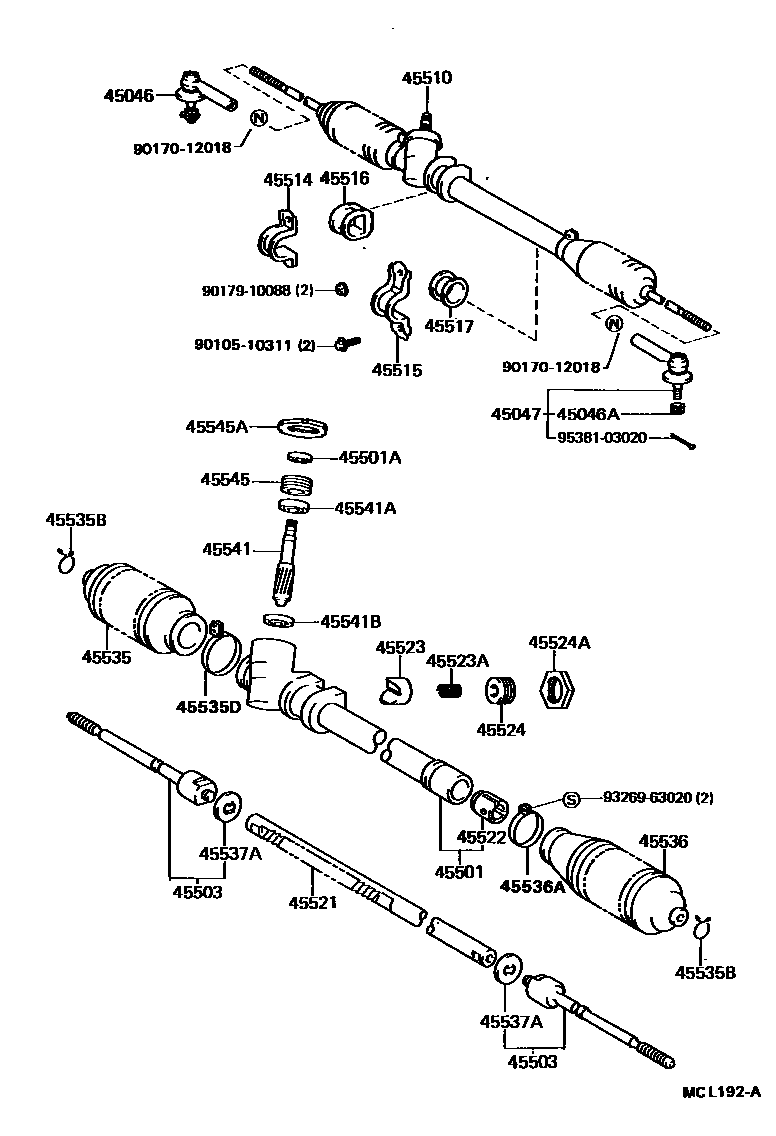

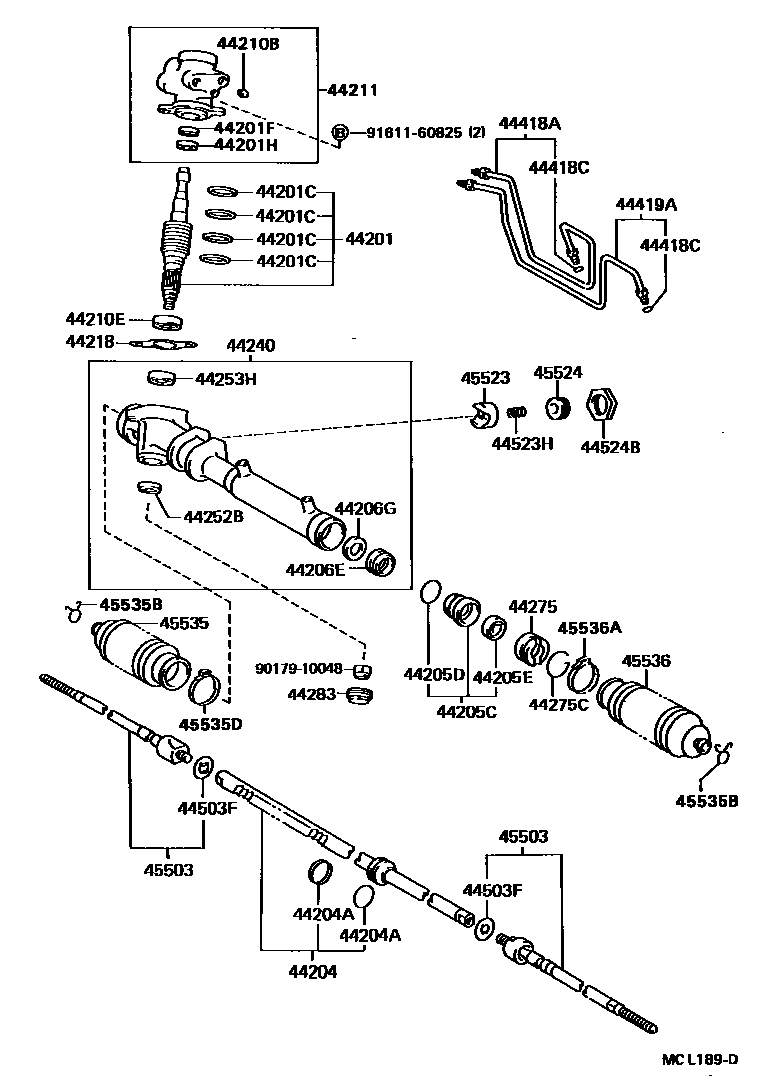

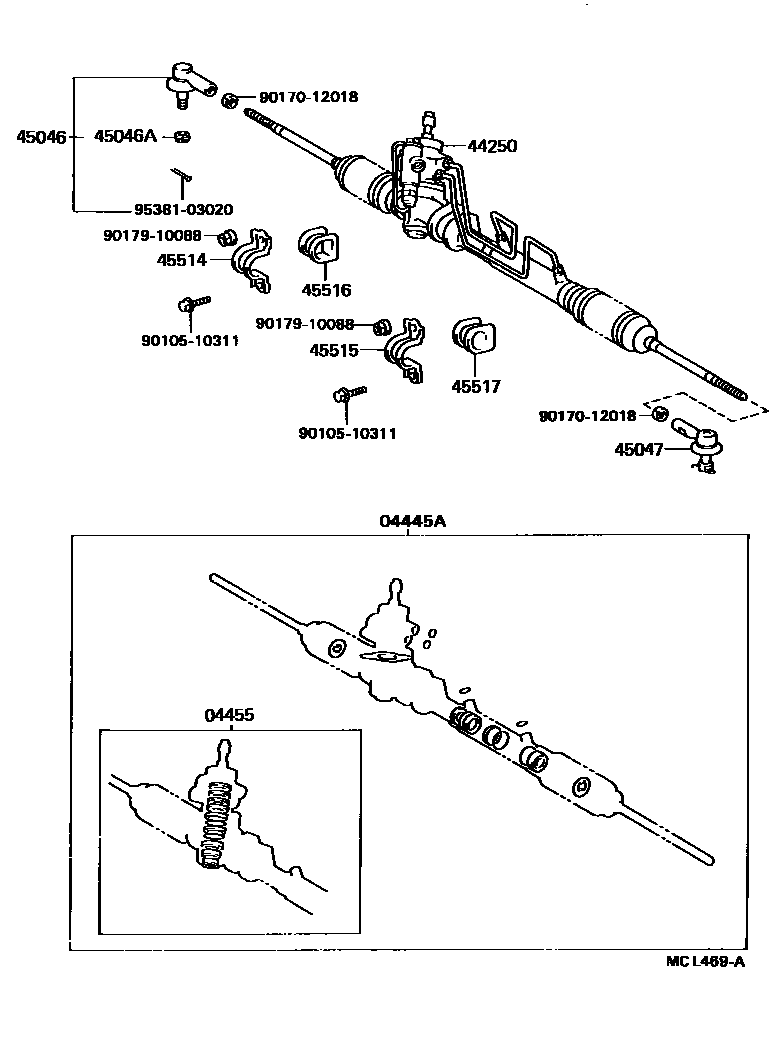

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 5 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-10030 · 04445-10040 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-10030 · 04455-10040 |
| 44201 | Power steering control valve sub-assembly | 44201-10060 · 44201-16080 · 44201-16090 · 44201-16100 |
| 44201C | Ring (for power steering control valve) | 90560-33005 |
| 44201F | Oil seal (for power steering control valve) | 90311-19010 |
| 44201H | Bearing (for upper power steering control valve) | 90365-19001 |
| 44201Q | O-ring (for power steering control valve) | 90301-32004 |
| 44201R | Ring (for power steering control valve) | 90560-35011 |
| 44204 | Power steering rack sub-assembly | 44204-10030 · 44204-16060 |
| 44204A | Ring (for steering rack piston) | 90301-29005 · 90562-34002 |
| 44205C | Power steering rack bushing sub-assembly | 44205-10020 |
| 44205D | O-ring (for power steering rack bushing) | 90301-33004 |
| 44205E | Oil seal (for power steering rack bushing) | 90311-22014 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90311-22013 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-23011 |
| 44210 | Power steering control valve assembly | 44210-16090 · 44210-16091 |
| 44210B | Connector seat (for power steering control valve) | 90410-05006 · 90410-05007 |
| 44210E | Oil seal (for power steering control valve) | 90311-26003 |
| 44211 | control valve housing | 44022-10010 · 44022-10020 |
| 44218 | valve housing gasket | 44218-12020 |
| 44240 | Power steering rack housing assembly | 44240-10040 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-10110 · 44250-16100 · 44250-16110 · 44250-16120 · 44250-16130 · 44250-16131 |
| 44252B | Bearings (for power steering pinion) | 90363-12009 |
| 44253H | No. 1 bearing (for power steering rack housing) | 90364-22006 |
| 44275 | Cylinder end stop | 44275-16020 |
| 44275C | Coil (for cylinder end stop) | 90580-18001 |
| 44283 | Rack housing cover | 44283-16010 |
| 44418A | Right steering pressure oil pipe | 44418-10020 · 44418-16070 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-03001 |
| 44419A | Left steering pressure oil pipe | 44419-10020 · 44419-16070 |
| 44503F | Claw washer (for power steering rack end) | 90214-12002 |
| 44523H | Spring (for power steering rack guide) | 90501-23075 · 90501-23097 |
| 44524B | Nut (for power steering rack guide cover) | 90179-30002 |
| 45046 | Right tie rod end sub-assembly | 45046-19205 · 45046-19206 · 45046-19215 · 45046-19216 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19205 · 45046-19206 · 45046-19215 · 45046-19216 |
| 45501 | Steering rack housing sub-assembly | 45501-10110 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15002 |
| 45503 | Steering rack end sub-assembly | 45503-19155 |
| 45510 | Steering gear assembly | 45510-16120 |
| 45514 | No. 1 steering rack housing bracket | 45514-16050 · 45514-16060 |
| 45515 | No. 2 steering rack housing bracket | 45514-16060 · 45515-10050 |
| 45516 | No. 1 steering rack housing seal | 45516-16050 · 45516-16060 |
| 45517 | No. 2 steering rack housing seal | 45517-10070 · 45517-10080 |
| 45521 | steering rack | 45521-16200 |
| 45522 | steering rack bushing | 45522-10050 |
| 45523 | Rack guide block (for steering gear) | 45523-10030 · 45523-10040 |
| 45523A | Spring (for steering gear rack guide block) | 90501-26042 |
| 45524 | Steering rack guide block spring cover | 45524-10030 · 45524-16040 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-30002 |
| 45535 | No. 1 steering rack dust cover | 45535-10021 · 45535-10050 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-49003 · 90461-10273 |
| 45536 | No. 2 steering rack dust cover | 45535-10050 · 45536-10060 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-49003 · 90461-10646 |
| 45537A | Claw washer (for steering rack end lock) | 90214-12002 |
| 45541 | steering pinion | 45541-16090 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15015 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13004 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10020 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
