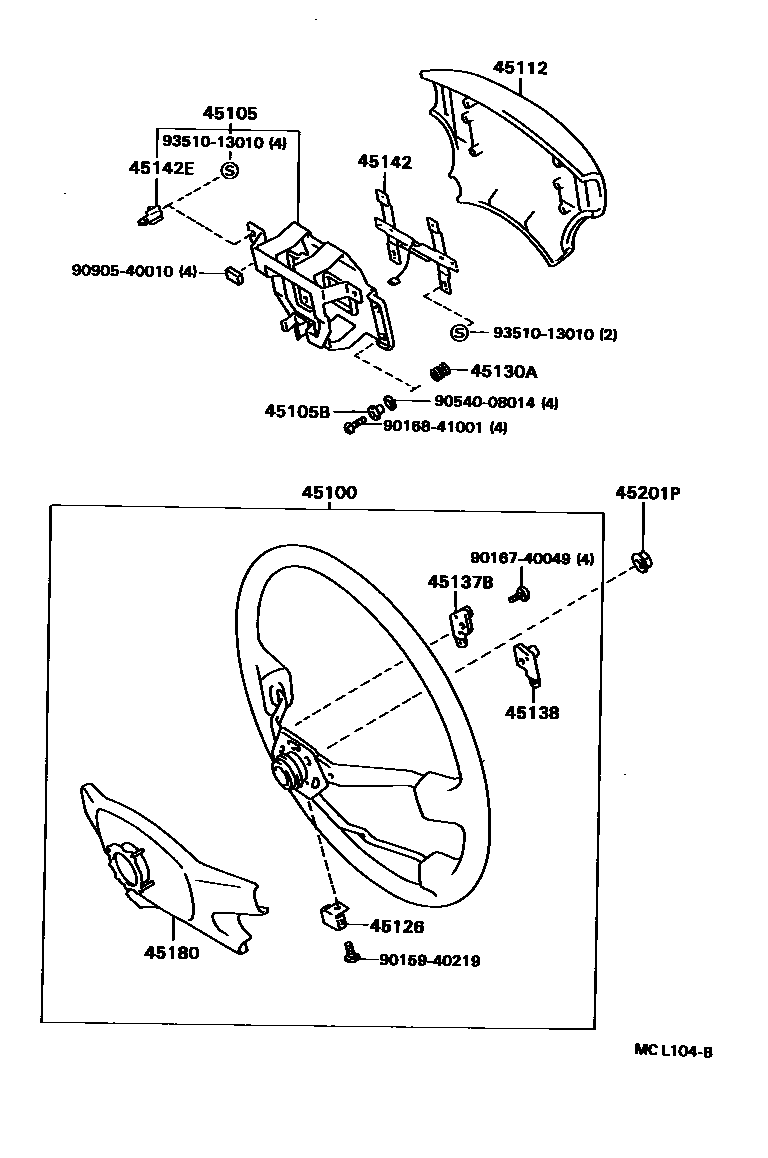

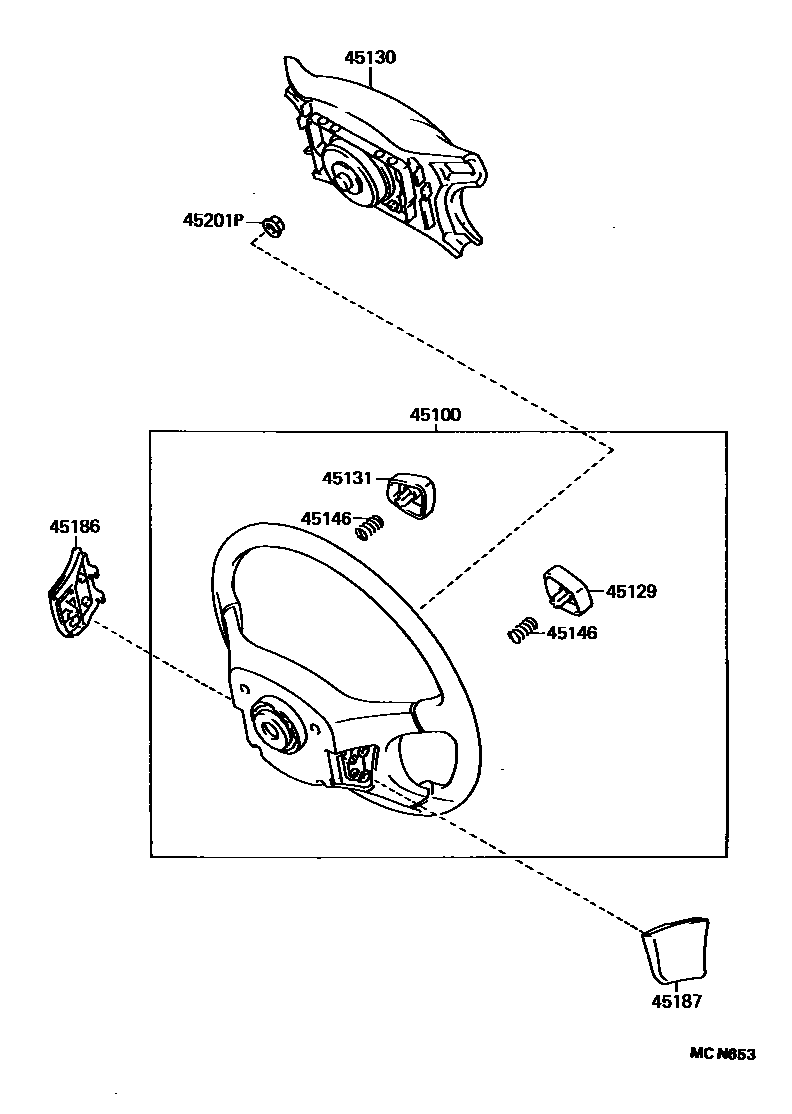

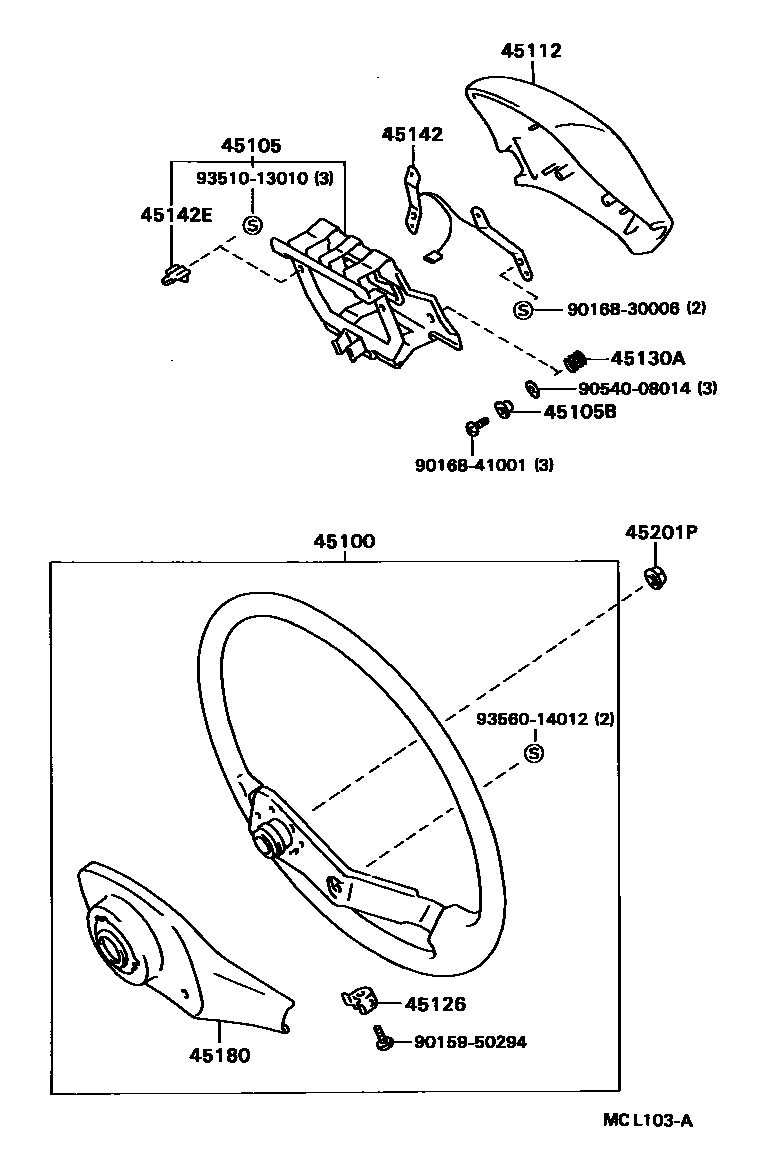

Toyota COROLLA Steering Wheel — Figure 4504
Toyota COROLLA EPC diagram 4504, Steering Wheel, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-16110 · 45105-16120 |
| 45105B | Spacer (for horn button contact piece) | 90561-04010 |
| 45126 | Steering wheel decorative cover fixing plate | 45126-16040 · 45126-16050 |
| 45130A | Compression spring (for horn button) | 90501-09106 · 90501-10104 |
| 45137B | No. 1 horn button stopper | 45137-16040 |
| 45138 | No. 2 horn button stopper | 45138-16020 |
| 45142 | No. 1 horn button contact seat | 45142-16060 · 45142-16070 |
| 45142E | Speaker contacts | 45142-12090 |
| 45146 | Horn button contact spring | 45146-20230 |
| 45201P | Steering wheel fixing nut | 90179-12071 · 90179-12086 |
