Toyota COROLLA 动力转向配管 — Figure 4503

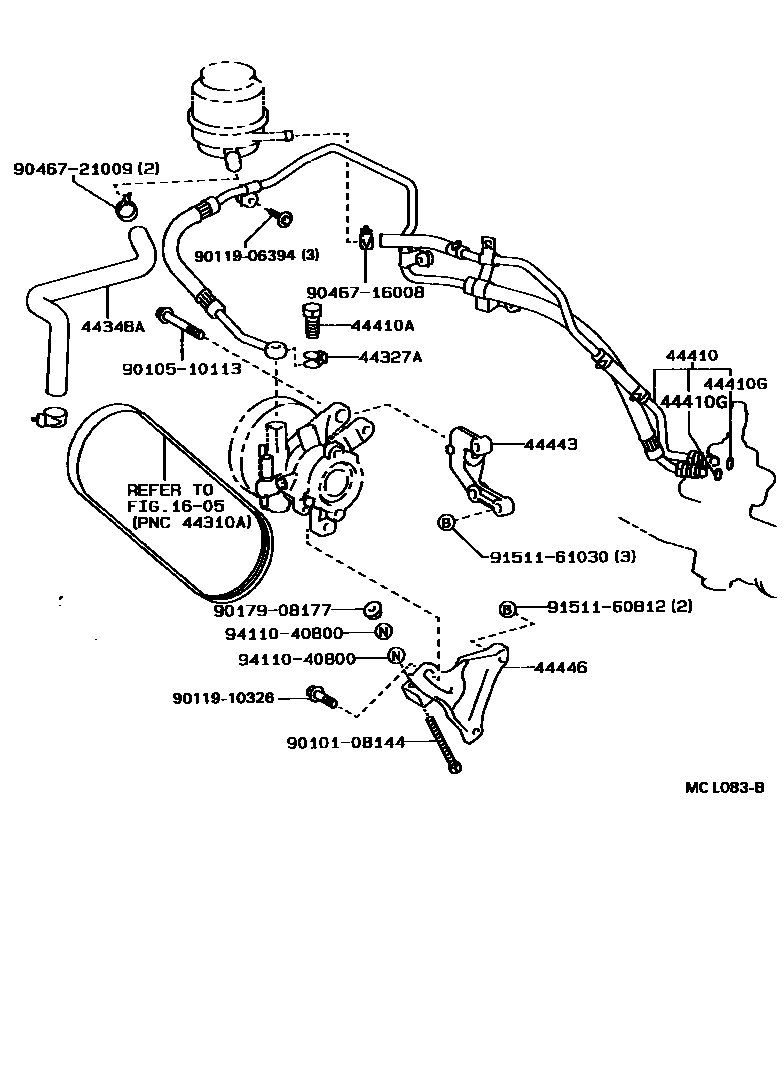

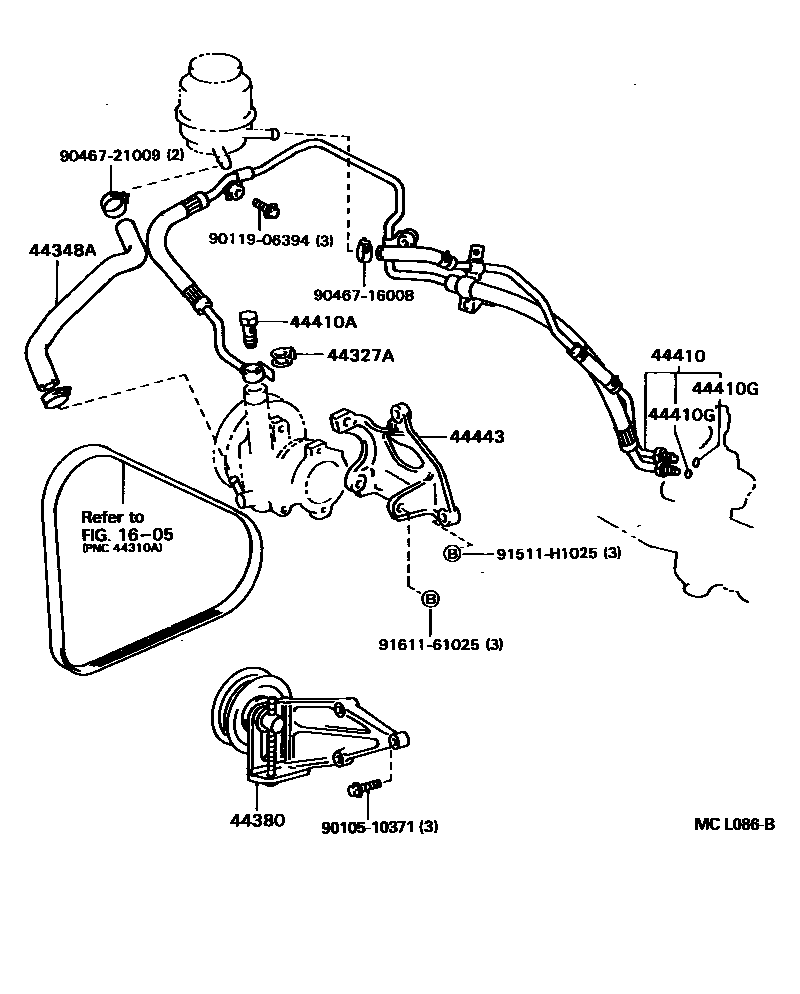

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-16050 · 44348-16060 · 44348-16090 · 44348-16110 |
| 44380 | Power steering idler assembly with bracket | 44380-16010 |
| 44410 | Pressure supply pipe assembly | 44410-16130 · 44410-16131 · 44410-16140 · 44410-16141 · 44410-16142 · 44410-16180 · 44410-16181 · 44410-16190 · 44410-16191 · 44410-16210 · 44410-16211 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 · 90401-16012 · 90401-16017 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44443 | pump bracket | 44443-10030 · 44443-16030 |
| 44446 | Adjust the stand | 44446-10040 · 44446-10050 · 44446-16050 · 44446-16051 |
