Toyota COROLLA Front Drive Shaft — Figure 4302

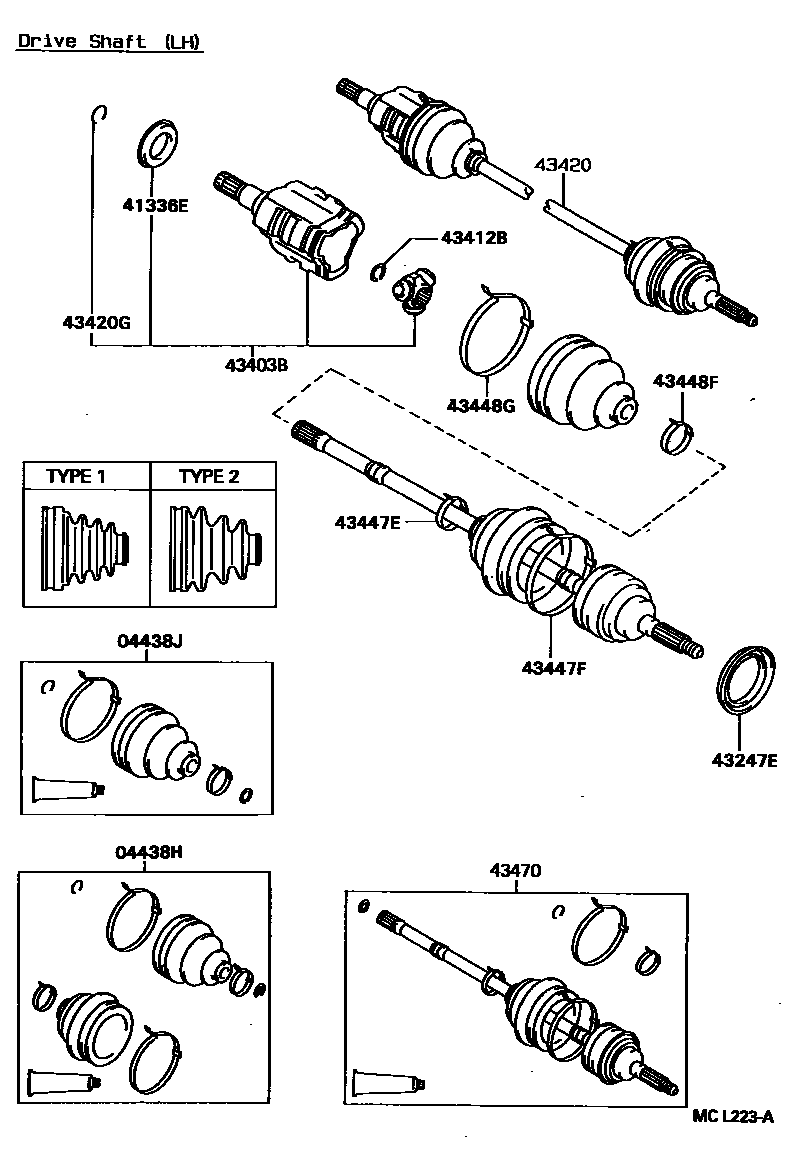

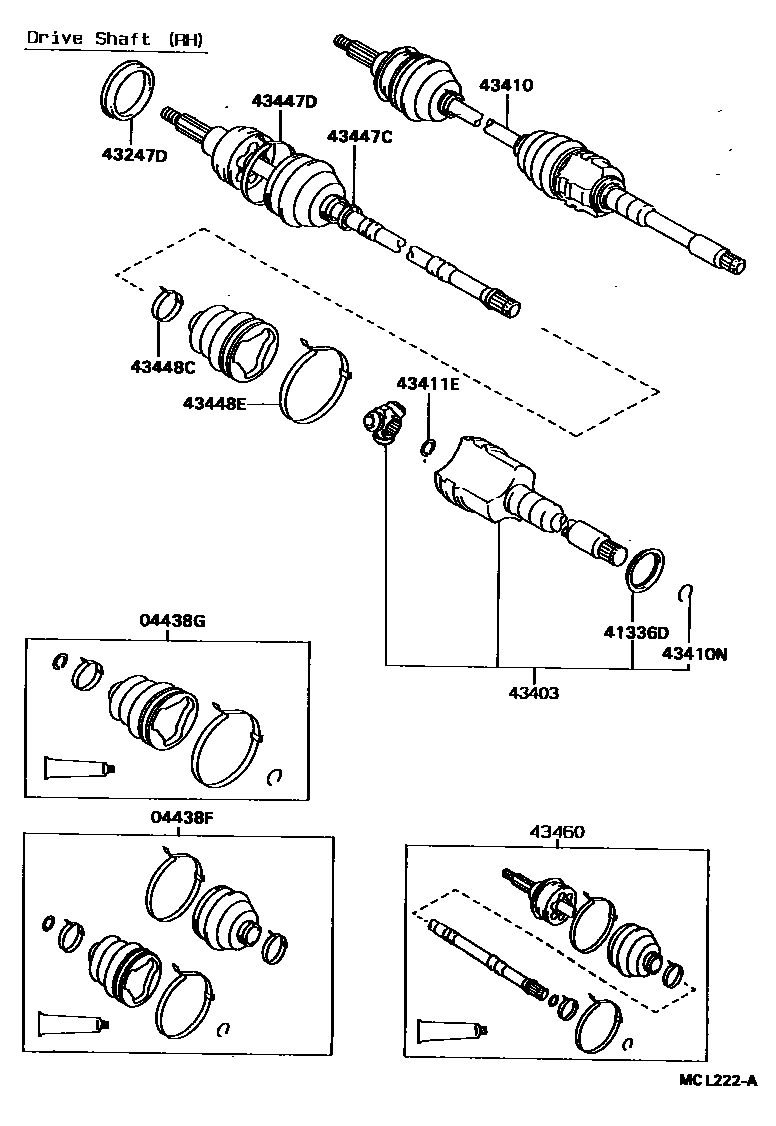

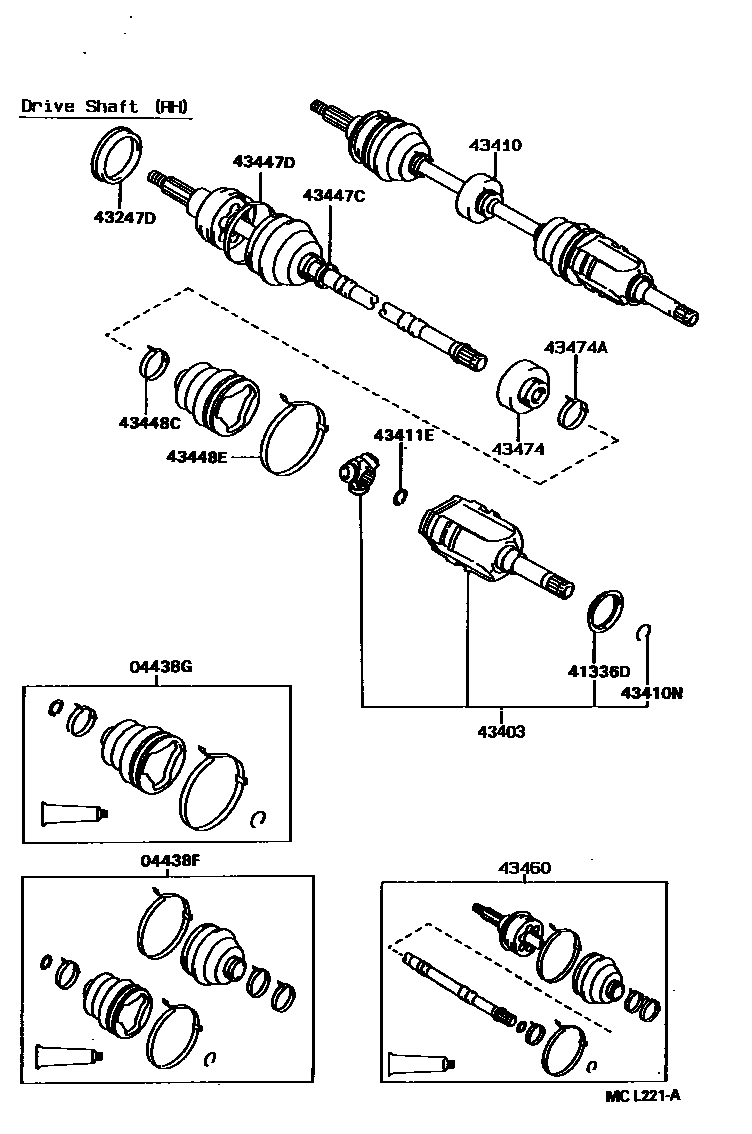

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-10060 · 04438-12171 · 04438-12172 · 04438-16040 · 04438-16080 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-10050 · 04438-12161 · 04438-12162 · 04438-16030 · 04438-16070 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-10060 · 04438-12171 · 04438-12172 · 04438-16040 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-10050 · 04438-12161 · 04438-12162 · 04438-16030 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-16020 |
| 41336E | Left front driveshaft dust cover | 41336-12010 |
| 43247D | No. 2 right front wheel bearing dust cover | 43247-10020 · 43247-16040 |
| 43247E | No. 2 left front wheel bearing dust cover | 43247-10020 · 43247-16040 |
| 43403 | Right front axle inner universal joint assembly | 43030-16010 · 43403-10010 · 43403-12040 |
| 43403B | Left front axle inner universal joint assembly | 43403-10010 · 43403-12040 |
| 43410 | Right front driveshaft assembly | 43410-16100 · 43410-16101 · 43410-16110 · 43410-16111 · 43410-16120 · 43410-16121 · 43410-16130 · 43410-16131 · 43410-16140 · 43410-16141 · 43410-16150 · 43410-16151 · 43410-16160 · 43410-16161 · 43410-16170 · 43410-16171 · 43410-16190 · 43410-16200 · 43410-16210 · 43410-16220 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-26004 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22001 · 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22001 · 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-16100 · 43420-16101 · 43420-16110 · 43420-16111 · 43420-16120 · 43420-16121 · 43420-16130 · 43420-16131 · 43420-16140 · 43420-16141 · 43420-16150 · 43420-16151 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 90949-01078 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16020 · 90949-01080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 90949-01078 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16020 · 90949-01080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 42345-16080 · 90949-01076 · 90949-01146 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 42345-16080 · 90949-01076 · 90949-01146 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19515 · 43460-19516 · 43460-19525 · 43460-19526 · 43460-19535 · 43460-19536 · 43460-19545 · 43460-19546 · 43460-19555 · 43460-19556 · 43460-19565 · 43460-19566 · 43460-19615 · 43460-19625 · 43470-19495 · 43470-19496 · 43470-19505 · 43470-19506 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19495 · 43470-19496 · 43470-19505 · 43470-19506 · 43470-19515 · 43470-19516 · 43470-19525 · 43470-19526 · 43470-19535 · 43470-19536 · 43470-19545 · 43470-19546 |
| 43474 | drive shaft damper | 43474-10010 · 43474-12020 · 43474-20050 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 · 42345-16010 · 42345-16030 · 90949-01078 |
