Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701

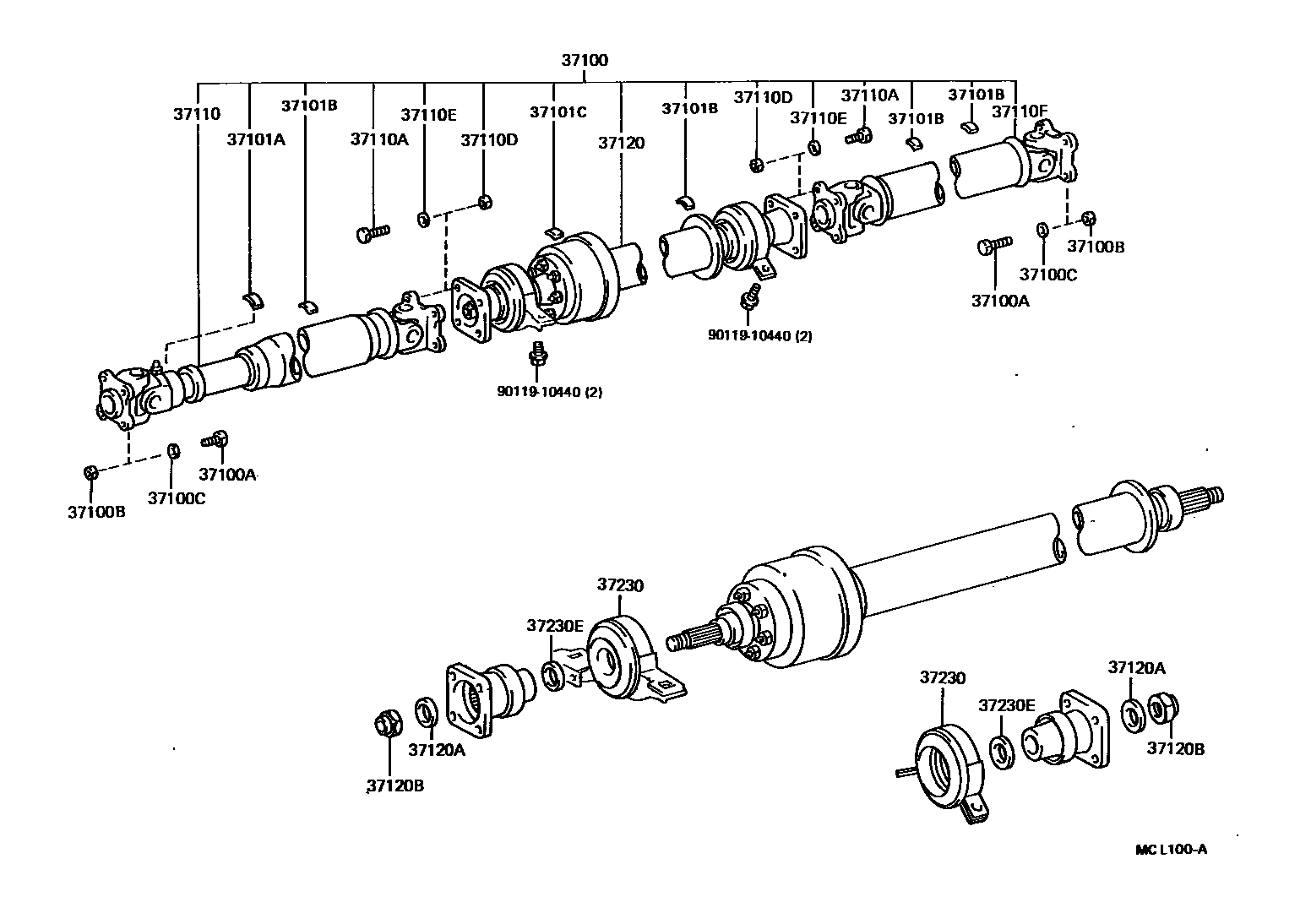

Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 37100 | Drive shaft assembly with central bearing | 37100-16030 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-08244 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90179-08197 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 94512-00800 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01184 · 90937-01191 · 90937-01192 · 90937-01193 · 90937-01194 · 90937-01198 · 90937-01199 · 90937-01200 · 90937-01268 · 90937-01269 · 90937-01270 · 90937-01271 · 90937-01272 · 90937-01273 · 90937-01274 |
| 37101B | No. 2 balance weight (for drive shaft) | 90937-01338 · 90937-01339 · 90937-01340 · 90937-01355 · 90937-01356 · 90937-01357 · 90937-01358 · 90937-01359 · 90937-01360 · 90937-01361 · 90937-01362 · 90937-01363 · 90937-01364 · 90937-01365 · 90937-01385 · 90937-01386 |
| 37101C | No. 3 balance weight (for drive shaft) | 90937-01423 · 90937-01424 · 90937-01425 · 90937-01426 · 90937-01427 · 90937-01428 · 90937-01429 · 90937-01430 · 90937-01431 · 90937-01432 · 90937-01433 · 90937-01434 · 90937-01435 |
| 37110 | Drive shaft assembly | 37110-10160 |
| 37110A | Bolt (for drive shaft) | 90105-08244 |
| 37110D | Nut (for drive shaft) | 90179-08197 |
| 37110E | Washer (for drive shaft) | 94512-00800 |
| 37110F | Rear drive shaft assembly | 37110-16020 |
| 37120 | Intermediate drive shaft assembly | 37120-10010 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-10010 · 37230-10011 · 37230-10030 · 37230-10031 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-25005 |
