Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503

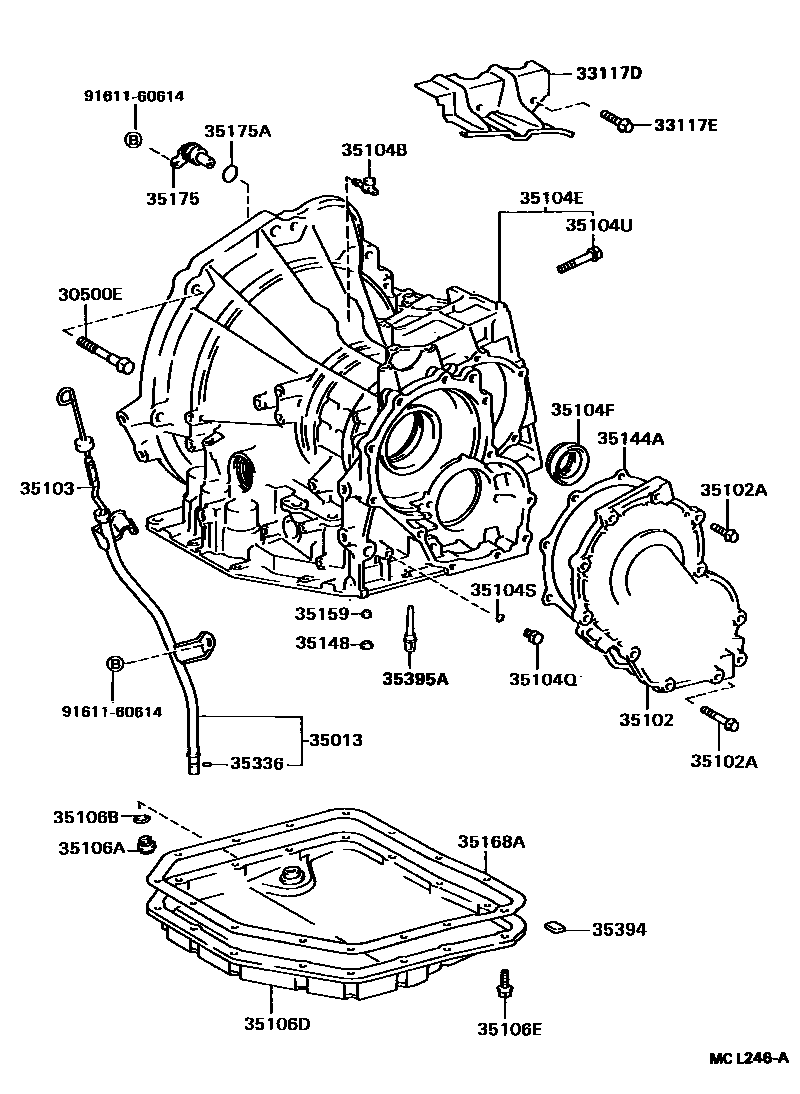

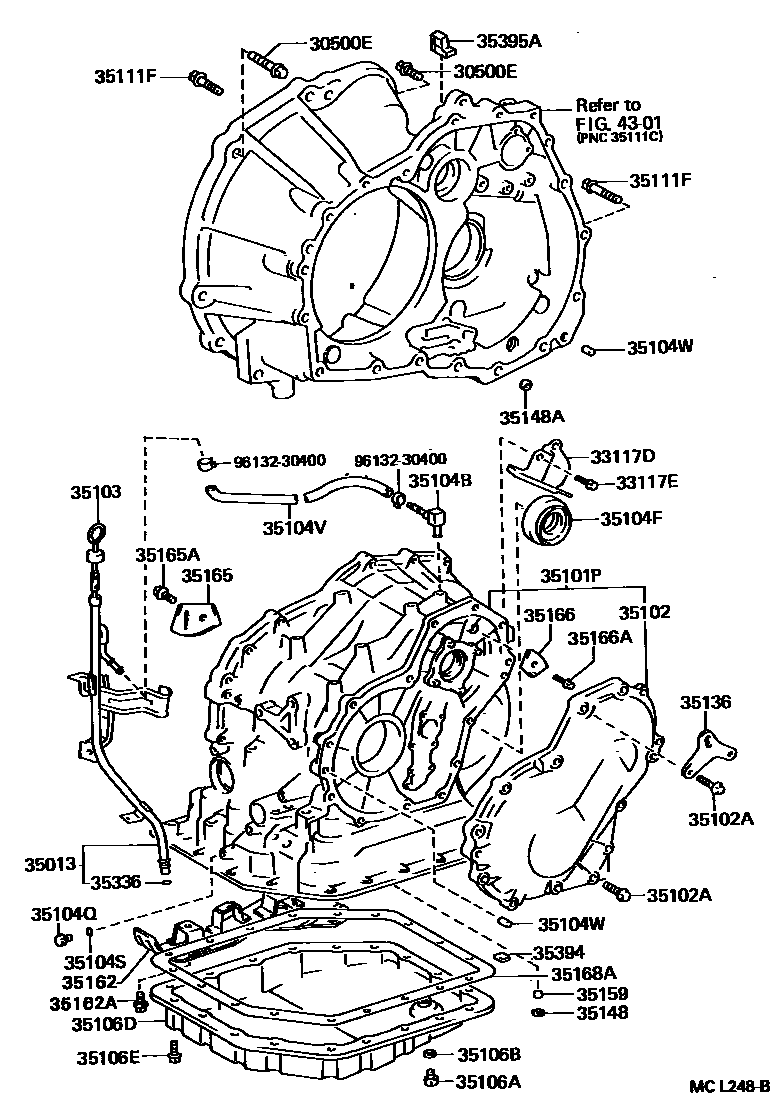

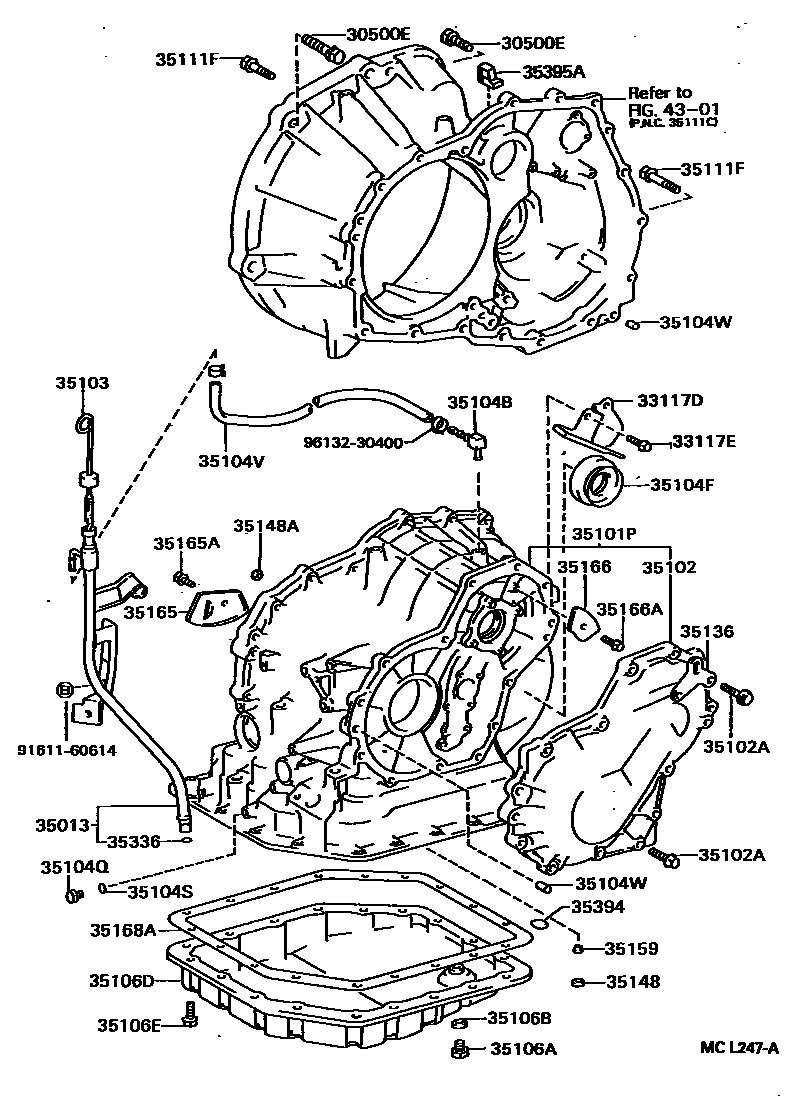

Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90105-10077 · 90105-10097 · 90119-12168 · 91611-61025 · 91619-61245 · 91621-60614 |
| 33117D | automatic transmission guard plate | 33117-10011 · 33117-12030 |
| 33117E | Bolts (for automatic transmission guard) | 90105-08040 |
| 35013 | Transmission oil pipe sub-assembly | 35013-10120 · 35013-10150 · 35013-16060 · 35013-16070 · 35013-16080 · 35013-16100 · 35013-16170 · 35013-16190 |
| 35101P | Transmission axle housing and cover sub-assembly | 35101-10010 · 35101-16020 · 35101-16021 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-10011 · 35102-10030 · 35102-16030 · 35102-16031 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08050 · 90105-08056 · 90105-08065 · 90105-08068 |
| 35103 | Transmission oil level scoring assembly | 35103-10090 · 35103-10120 · 35103-16080 · 35103-16081 · 35103-16090 · 35103-16100 · 35103-16180 · 35103-16220 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03089 · 90930-03101 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-10042 · 35104-10043 |
| 35104F | Oil seal (for transmission axle housing) | 90311-34012 · 90311-34013 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104U | Bolts (for transaxle housing) | 90105-10008 |
| 35104V | Hoses (for breather plug) | 90447-11030 · 90447-11031 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10007 · 90250-10021 · 90250-11001 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10006 · 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 · 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-10022 · 35106-12070 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-08065 · 90105-08066 · 90105-08068 · 90105-08071 |
| 35136 | No. 1 transmission hanger | 35136-10030 · 35136-16010 |
| 35144A | Transaxle rear cover gasket | 35144-12010 · 35144-12020 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35148-16010 |
| 35148A | Governor oil supply pipe gasket No. 2 | 35148-12010 |
| 35159 | brake drum gasket | 35159-20010 · 35159-32011 |
| 35162 | Automatic transmission axle housing guard plate | 35162-16010 |
| 35162A | Bolts (for automatic transmission axle housing guard) | 91611-61020 |
| 35165 | No. 1 gearbox block | 35165-12010 |
| 35165A | Bolt (for gearbox block No. 1) | 90105-06049 |
| 35166 | No. 3 gearbox block | 35166-12010 |
| 35166A | Bolt (for gearbox block No. 3) | 90105-06049 |
| 35168A | Automatic transaxle oil pan gasket | 35168-12020 · 35168-32010 |
| 35175 | No. 2 transmission axle housing cover | 35175-32010 |
| 35175A | O-ring (for transmission axle housing cover) | 90301-21002 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35395A | governor oil filter | 35395-12020 · 35395-32020 · 35395-32030 |
