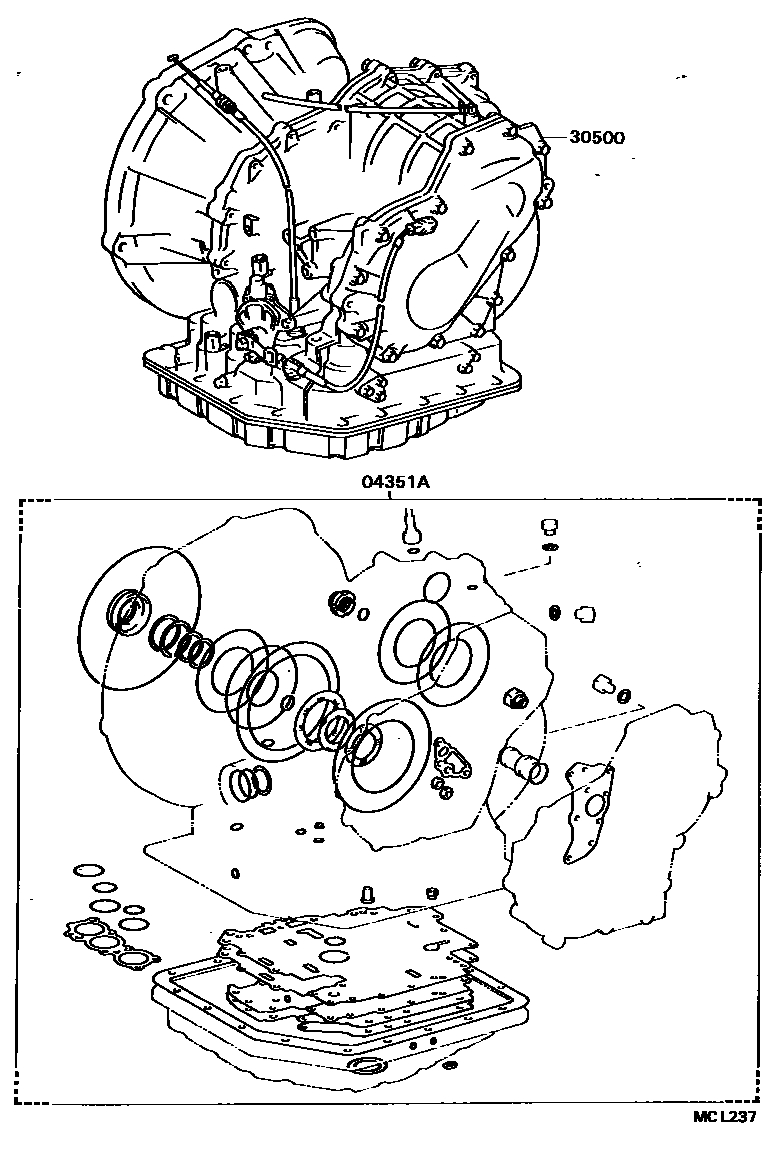

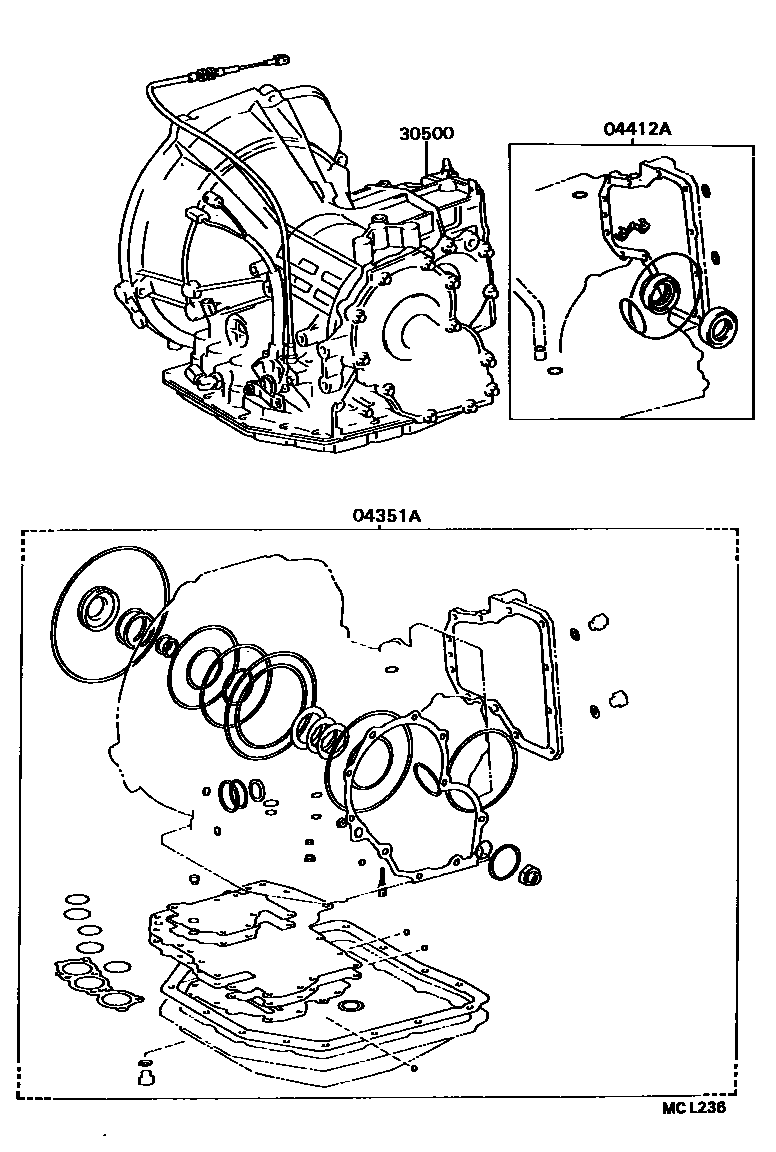

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-10030 · 04351-10040 · 04351-10050 · 04351-16060 |
| 04412A | Differential case gasket assembly (ATM) | 04412-10031 |
| 30500 | Automatic transmission axle assembly | 30500-16260 · 30500-16261 · 30500-16300 · 30500-16301 · 30500-16310 · 30500-16311 · 30500-16320 · 30500-16330 · 30500-16340 · 30500-16360 · 30500-16430 |
