Toyota COROLLA Shift Lever & Retainer — Figure 3312

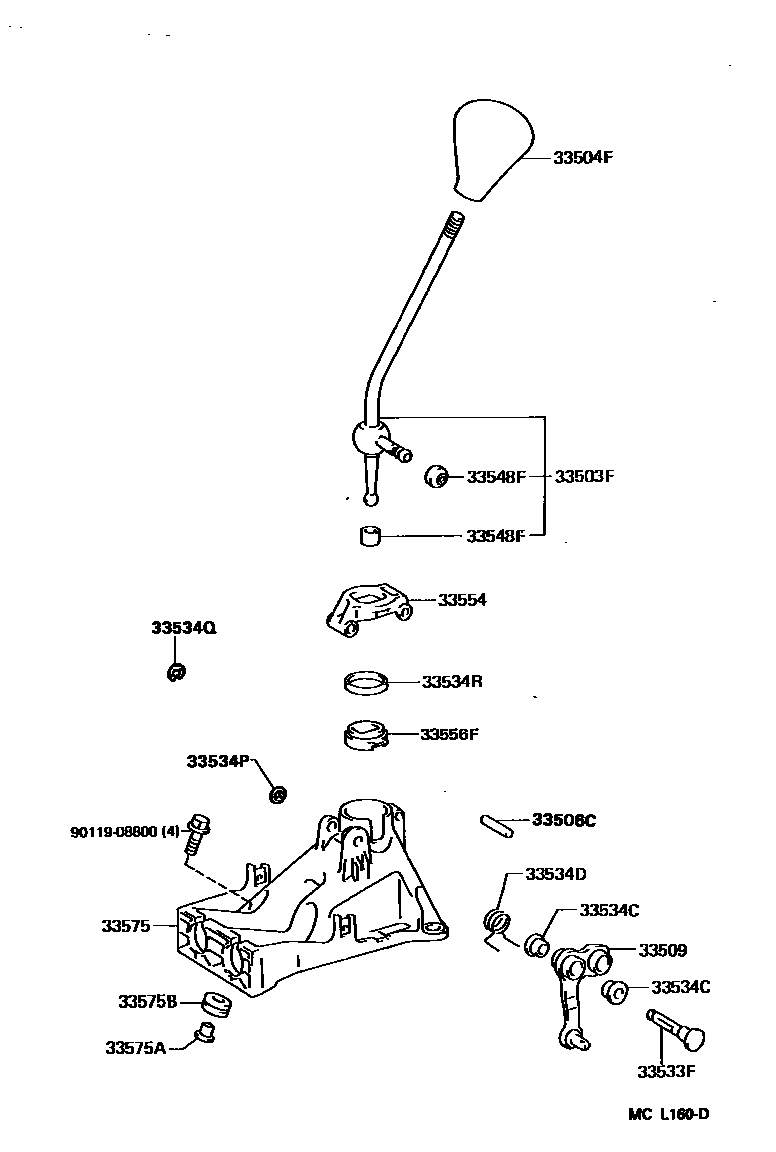

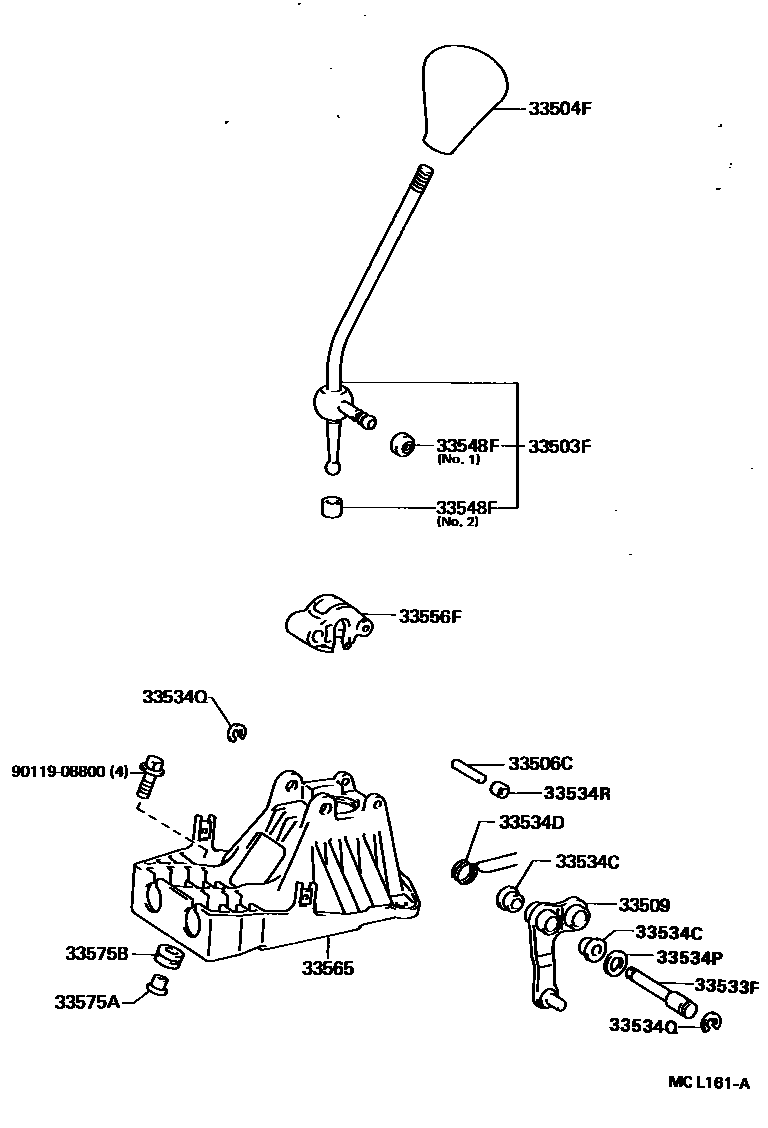

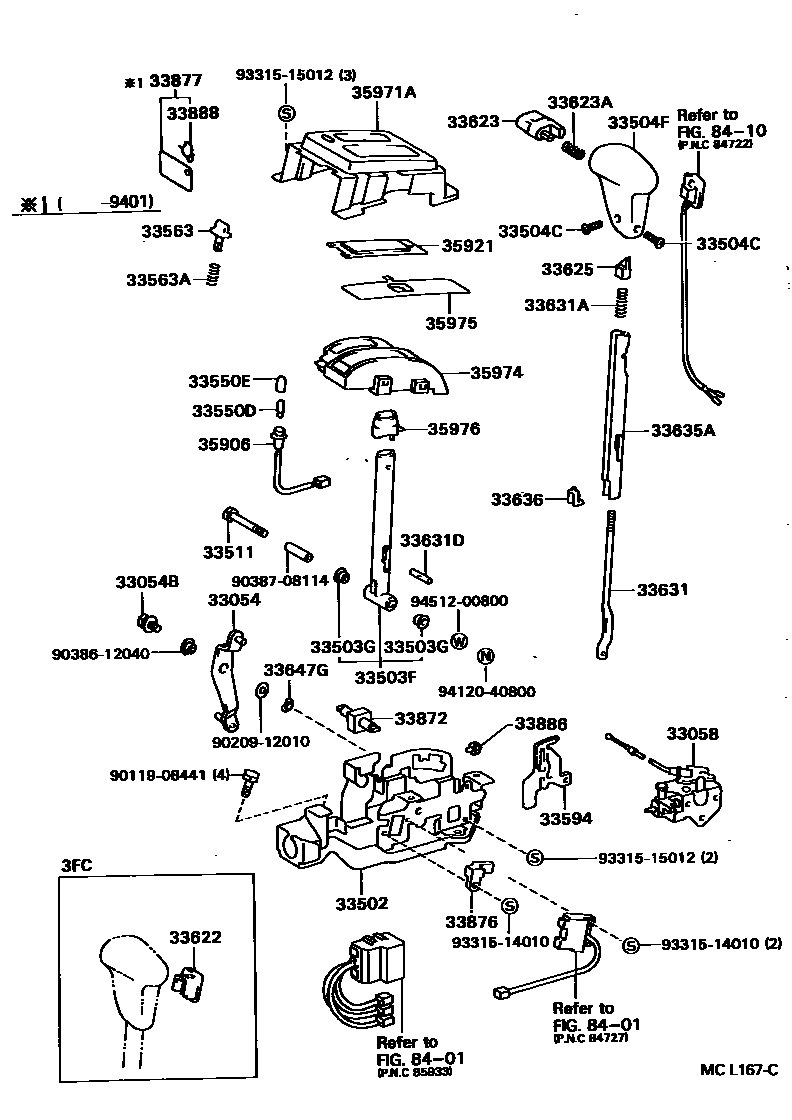

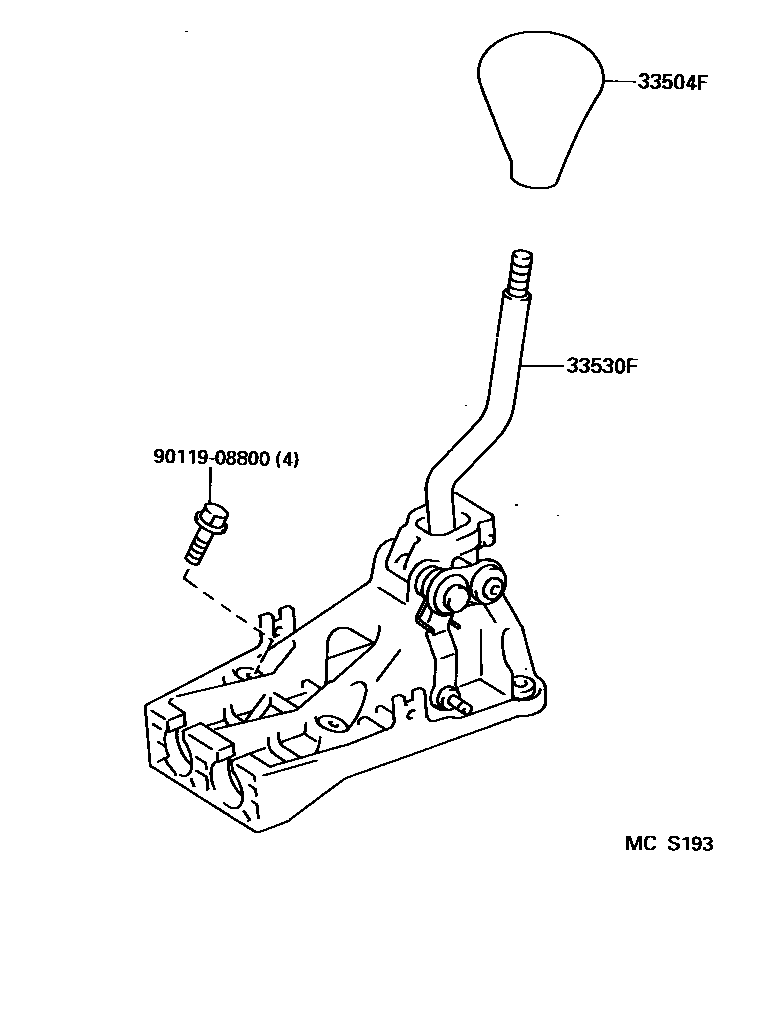

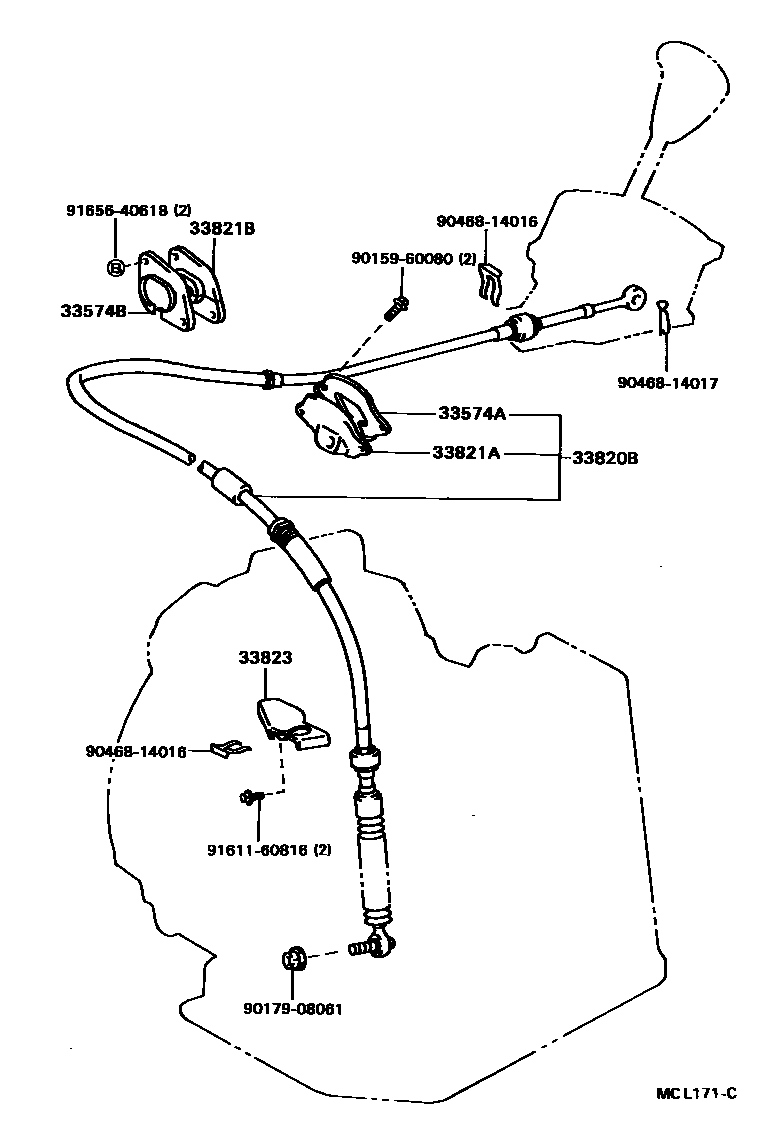

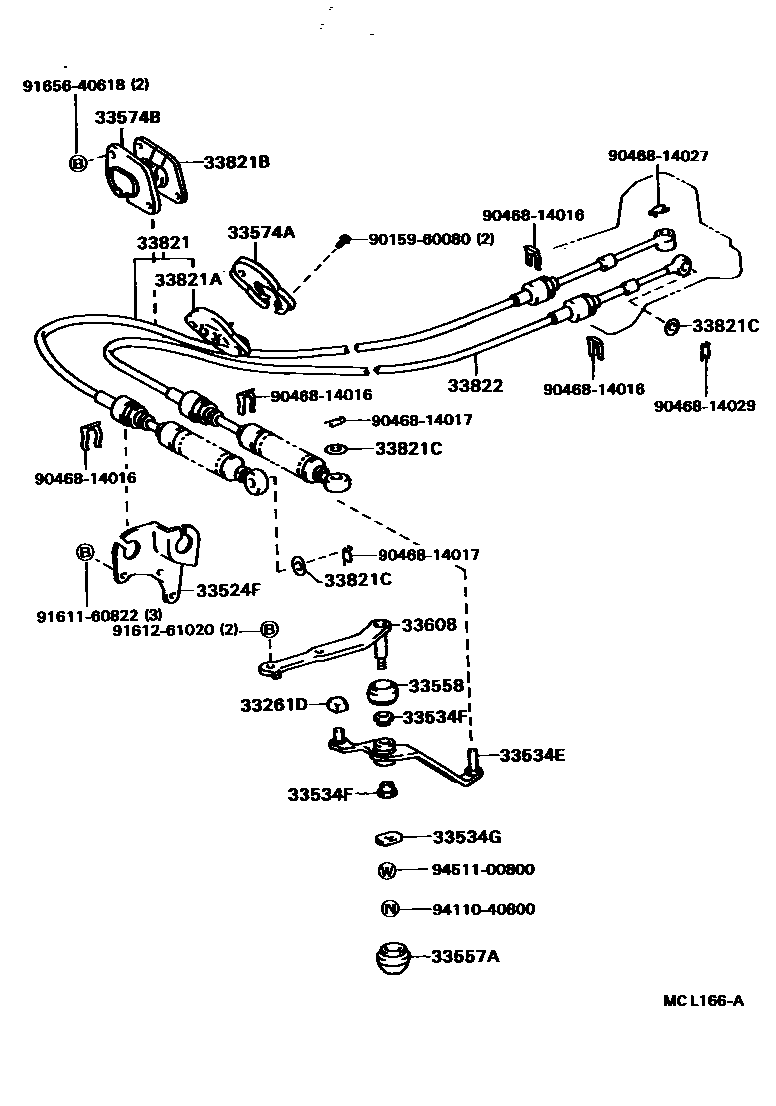

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 6 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-16030 |
| 33054B | Bolt (for shift lever No. 2) | 90119-08606 |
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-16030 |
| 33261D | Bushing (for shift lever) | 33557-33010 · 90389-10009 |
| 33502 | Shift lever base plate sub-assembly | 33502-16140 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-10140 · 33503-10150 · 33503-10160 |
| 33503G | Bushing (for shift lever) | 90386-11012 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33506C | Shift lever stopper ring pin | 90253-06001 · 90254-06004 |
| 33509 | No. 1 gear selection right-angle lever sub-assembly | 33509-10030 · 33509-10040 |
| 33511 | Control shaft (for floor shifting) | 90101-08108 |
| 33524F | Lever housing bracket (for floor shift) | 33524-16030 · 33524-16040 |
| 33530F | Shift lever assembly (for floor shift) | 33530-10180 |
| 33533F | Right-angle lever shaft (for floor-mounted shifting) | 33533-10010 · 33533-10020 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12034 · 90386-12038 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20102 · 90508-23112 |
| 33534E | No. 2 gear selection right-angle lever | 33534-16050 · 33534-16051 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12052 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00700 · 96160-00900 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-06029 · 90540-35001 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-10030 · 33548-10040 · 33548-12021 |
| 33550D | position indicator light bulb | 90981-11040 |
| 33550E | position indicator cover | 90339-04014 |
| 33554 | shift lever cover | 33554-10040 |
| 33556F | Transmission shift lever ball seat | 33556-10010 · 33556-10020 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33563 | Shift lock release button | 33563-10010 |
| 33563A | Compression spring (for shift lock release button) | 90501-06063 |
| 33565 | Shift control lever cover | 33565-10030 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-10010 |
| 33574B | No. 2 shift cable seal | 33574-10030 |
| 33575 | Shift lever stop (for floor shift) | 33575-10080 |
| 33575A | Bushing No. 1 (for shift lever stop) | 90389-08059 · 90389-08085 |
| 33575B | Bushing No. 2 (for shift lever stop) | 90389-09022 · 90389-10029 |
| 33594 | Shift lock plate (for floor shift) | 33594-16030 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-10031 · 33608-10032 · 33608-16020 · 33608-16021 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-24010 |
| 33631 | Locking lever | 33631-32030 |
| 33631A | Compression spring (for locking lever) | 90501-08117 |
| 33631D | Grooved pin (for locking lever) | 90256-04003 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-10030 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33647G | Wave washer (for controlling connecting rod shaft) | 90206-12002 |
| 33820B | Transmission control cable assembly | 33820-16080 · 33820-16090 · 33820-16110 · 33820-16170 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-16150 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01281 · 90480-01347 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01288 · 90480-01291 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08023 · 90201-08267 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-16050 |
| 33823 | No. 1 transmission control cable bracket | 33823-10010 · 33823-10020 · 33823-16040 |
| 33872 | No. 2 shift lock release link | 33872-16010 |
| 33876 | Shift lock plate guide | 33876-16020 |
| 33877 | Shift lock information label No. 1 | 33877-16020 |
| 33886 | shift lever block | 33886-16010 |
| 33888 | Shift lock information label holder | 33888-16010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-10040 · 35906-35051 |
| 35921 | control position indicator board | 35921-16110 |
| 35974 | Position indicator light lower shell | 35974-10080 |
| 35975 | Slide cover (for position indicator light) | 35975-10030 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-10010 |
