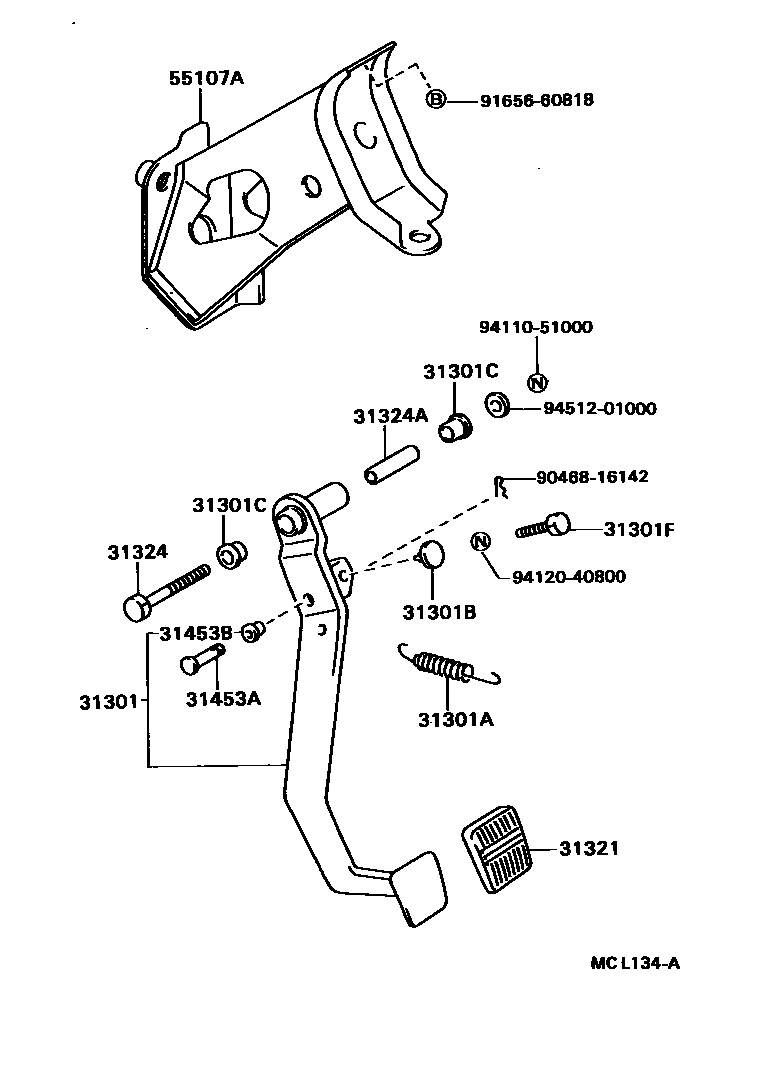

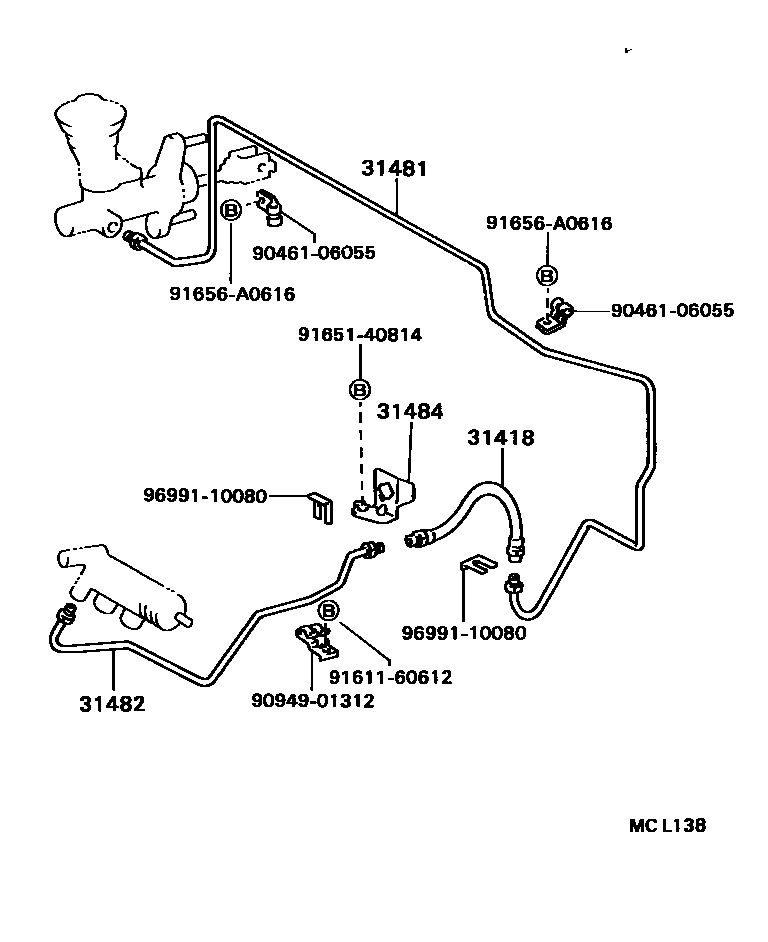

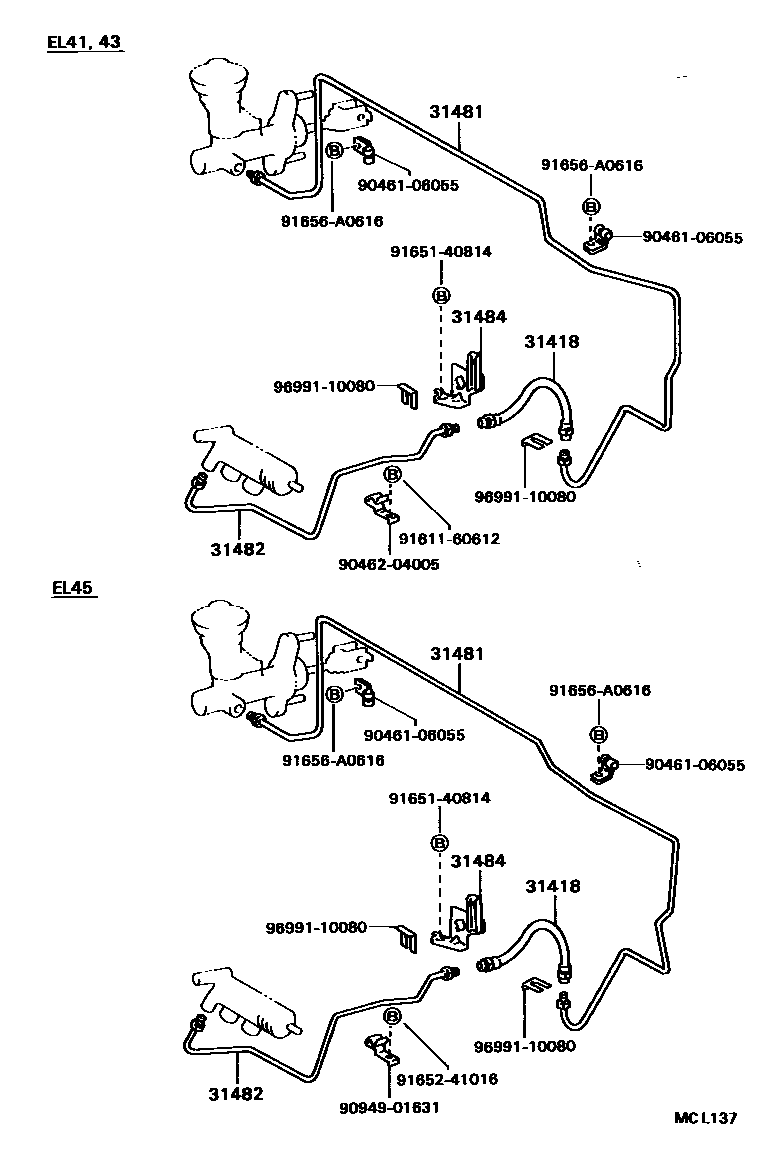

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-16090 |
| 31301A | Spring (for clutch pedal) | 90507-14035 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06032 · 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-08052 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10015 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31418 | clutch hose | 90931-01073 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08243 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-18010 · 31481-18020 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-10020 · 31482-10030 · 31482-16030 · 31482-18010 |
| 31484 | Flexible hose bracket (for clutch) | 31484-10030 · 31484-16020 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-16070 |
