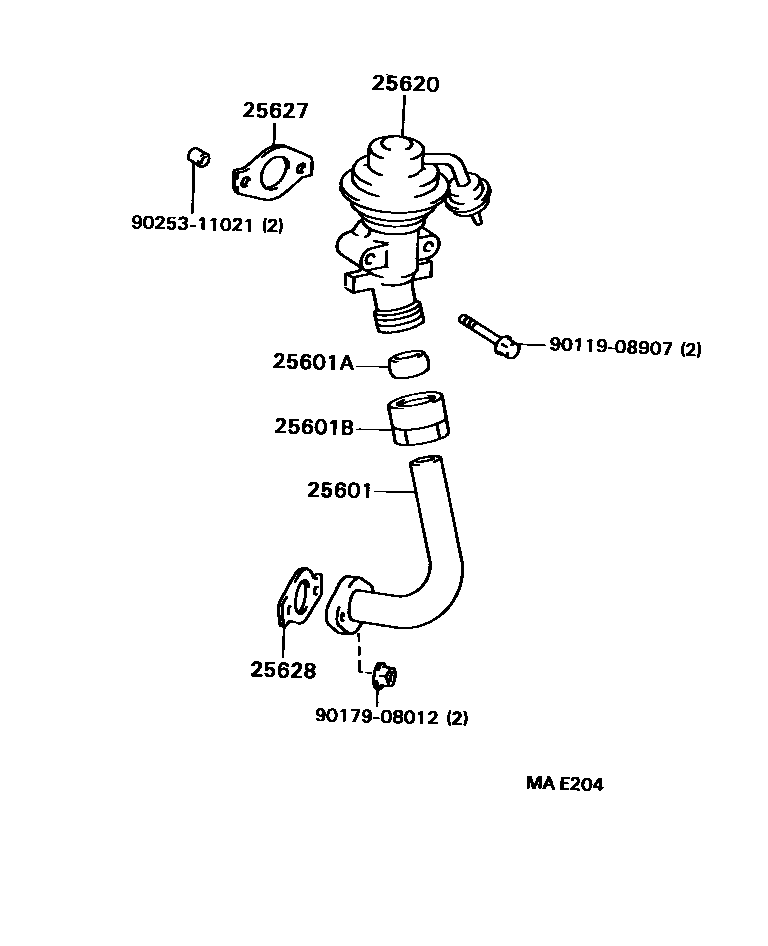

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-55010 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-22001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-30002 |
| 25620 | EGR valve assembly | 25620-55010 |
| 25627 | EGR valve gasket | 25627-55010 |
| 25628 | EGR air intake gasket | 25628-64030 |
