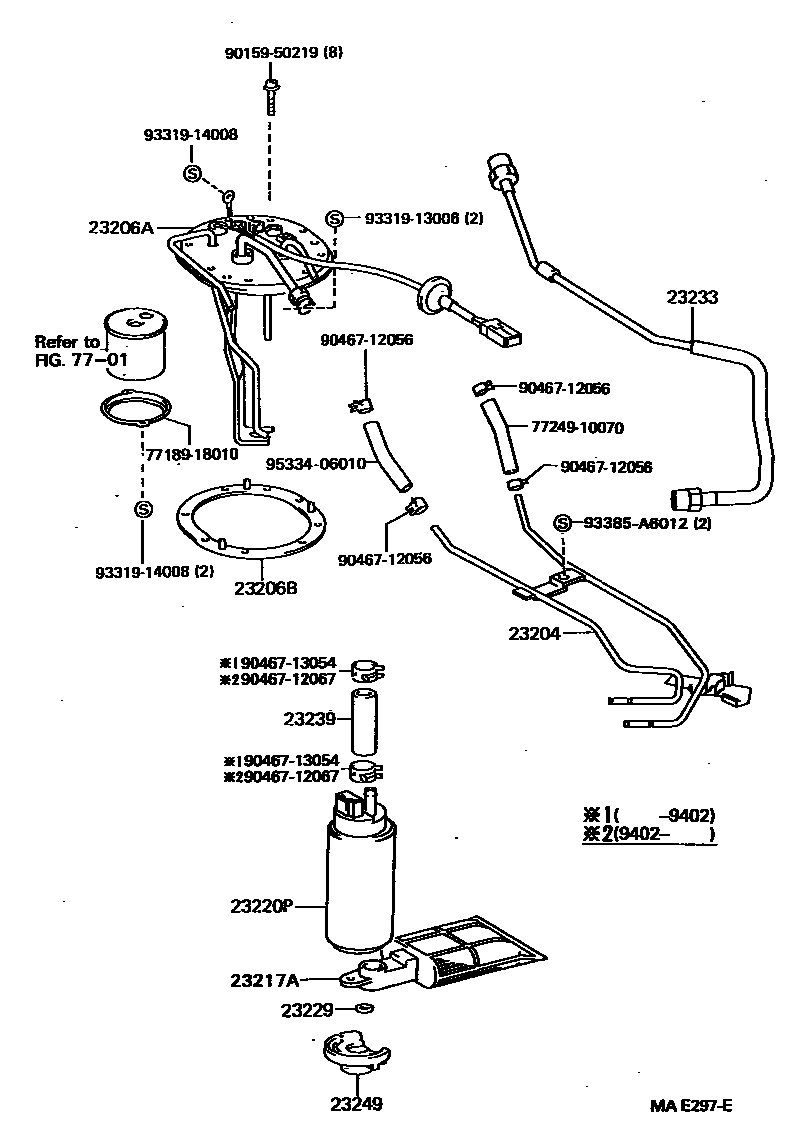

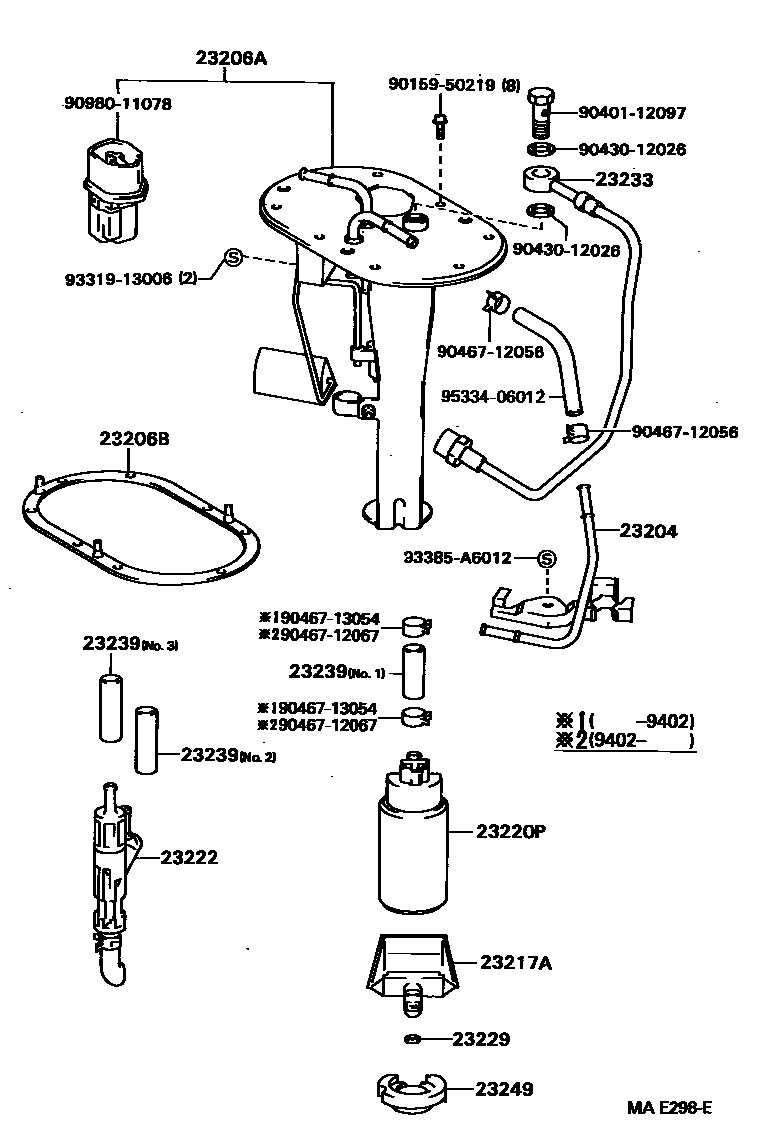

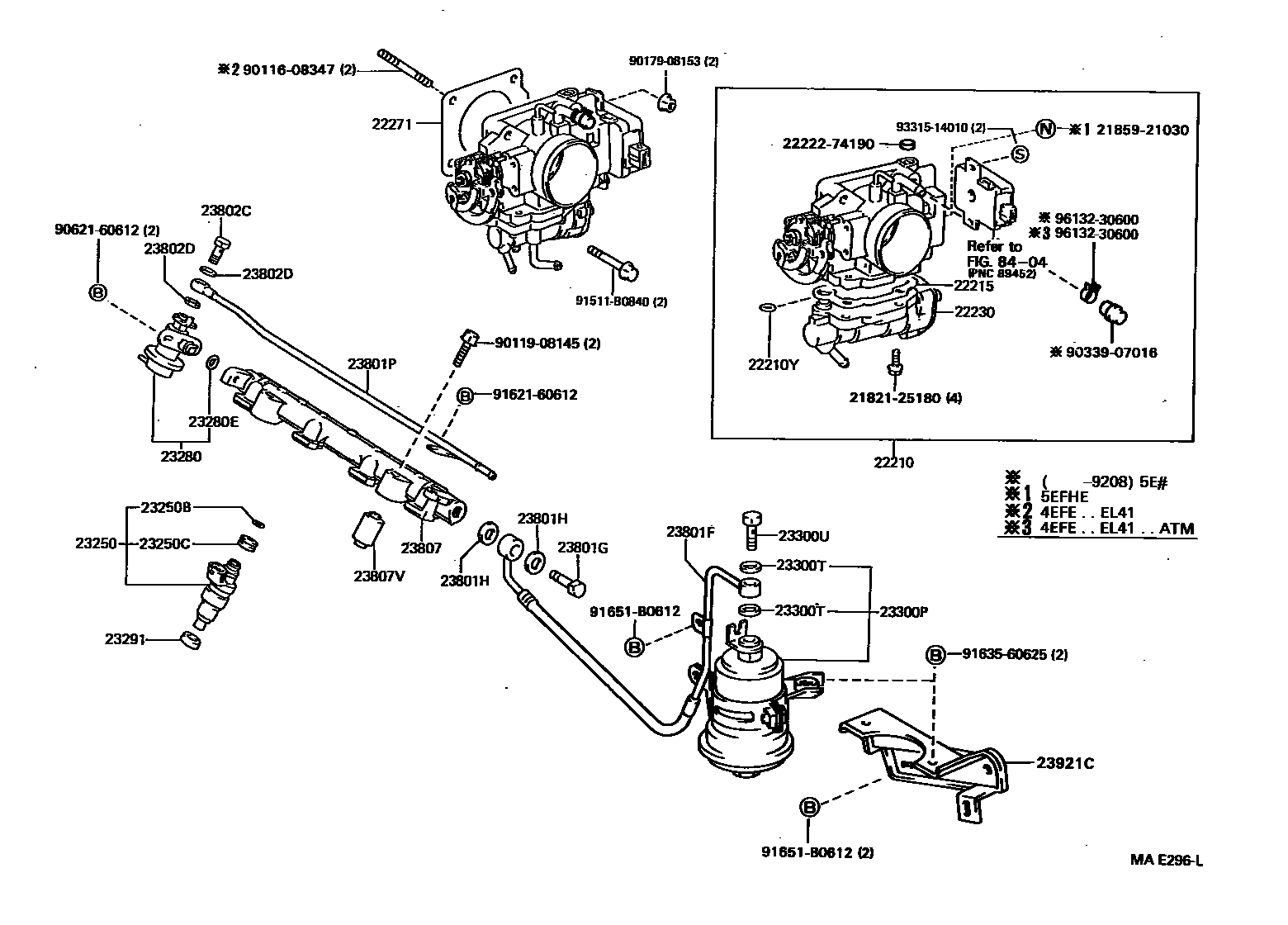

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-11110 · 22210-11130 · 22210-11210 · 22210-11220 · 22210-11270 · 22210-11280 · 22210-11360 · 22210-11370 · 22210-11380 · 22210-11390 |
| 22210Y | O-ring (for air pipe) | 96711-19009 |
| 22215 | Throttle body cover gasket | 22215-11110 |
| 22230 | Auxiliary air valve assembly | 22230-11080 · 22230-11100 · 22230-11130 · 22230-11140 |
| 22271 | Throttle body gasket | 22271-11020 · 22271-11030 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-11140 · 23204-11180 |
| 23206A | fuel pump bracket | 23206-11140 · 23206-11160 · 23206-11170 · 23206-11180 |
| 23206B | fuel pump bracket gasket | 77169-16030 · 77169-60010 |
| 23217A | fuel pump filter | 23217-11020 · 23217-74030 |
| 23220P | fuel pump assembly | 23221-46010 |
| 23222 | fuel return nozzle | 23222-11010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23091-11040 · 23091-11050 · 23091-11080 |
| 23239 | hose | 23239-11010 · 23239-63010 · 23239-74630 · 23239-74640 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-11050 · 23209-11070 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23280 | Fuel pressure regulator assembly | 23280-11040 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23300P | Fuel filter (for EFI) | 23300-19275 · 23300-19276 |
| 23300T | Gasket (for fuel filter) | 90430-12005 · 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 23271-11070 |
| 23801G | Connector bolt (for fuel pipe) | 90401-12029 |
| 23801H | Gasket (for fuel lines) | 90430-12005 · 90430-12026 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-11050 · 23801-11070 · 23801-11080 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-08010 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08005 · 90430-08012 · 90430-08014 |
| 23807 | Oil pipe sub-assembly | 23814-11030 |
| 23807V | No. 1 spacer (for oil pipe) | 23890-11010 |
| 23921C | fuel filter bracket | 23264-11060 |
