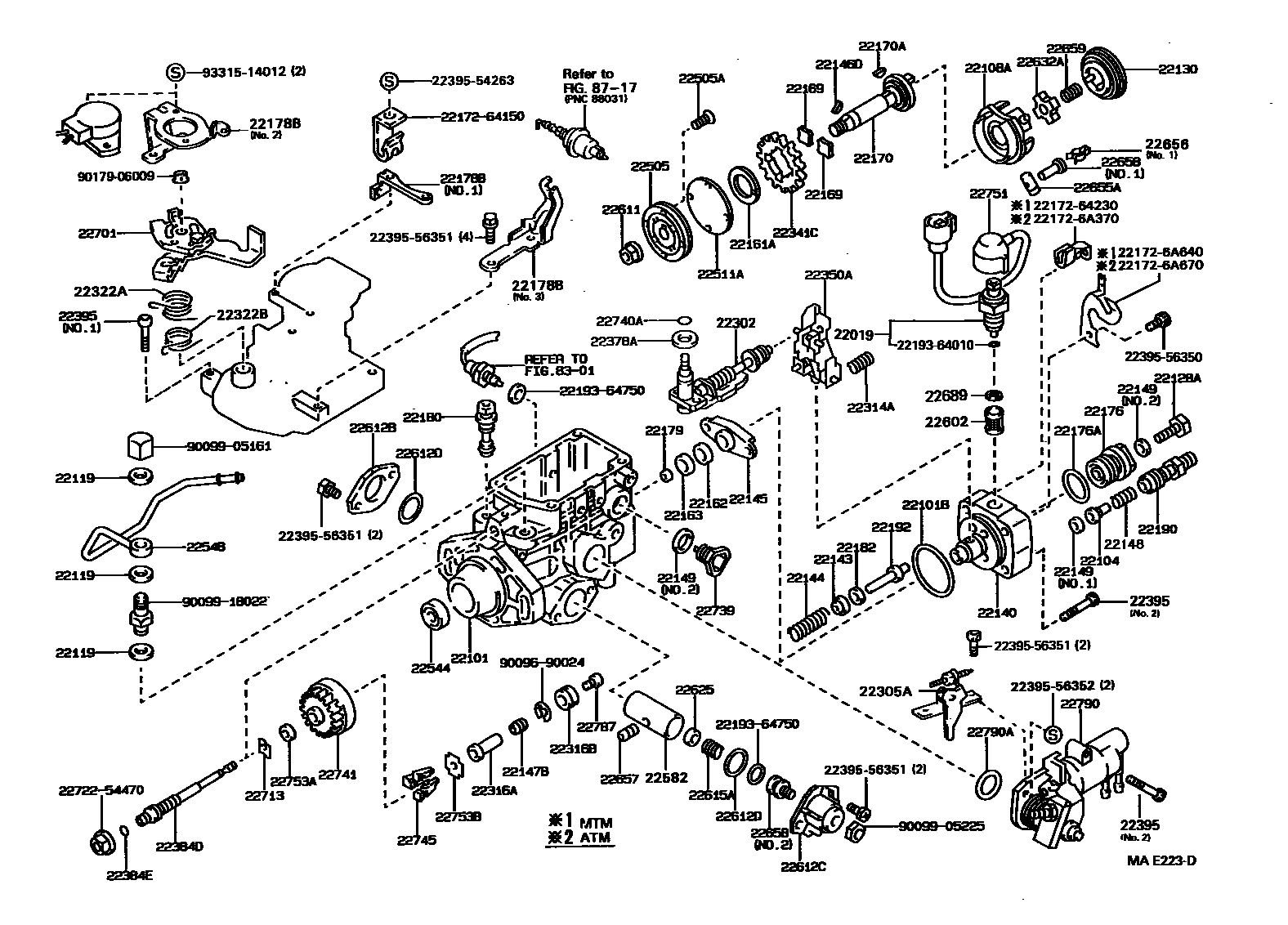

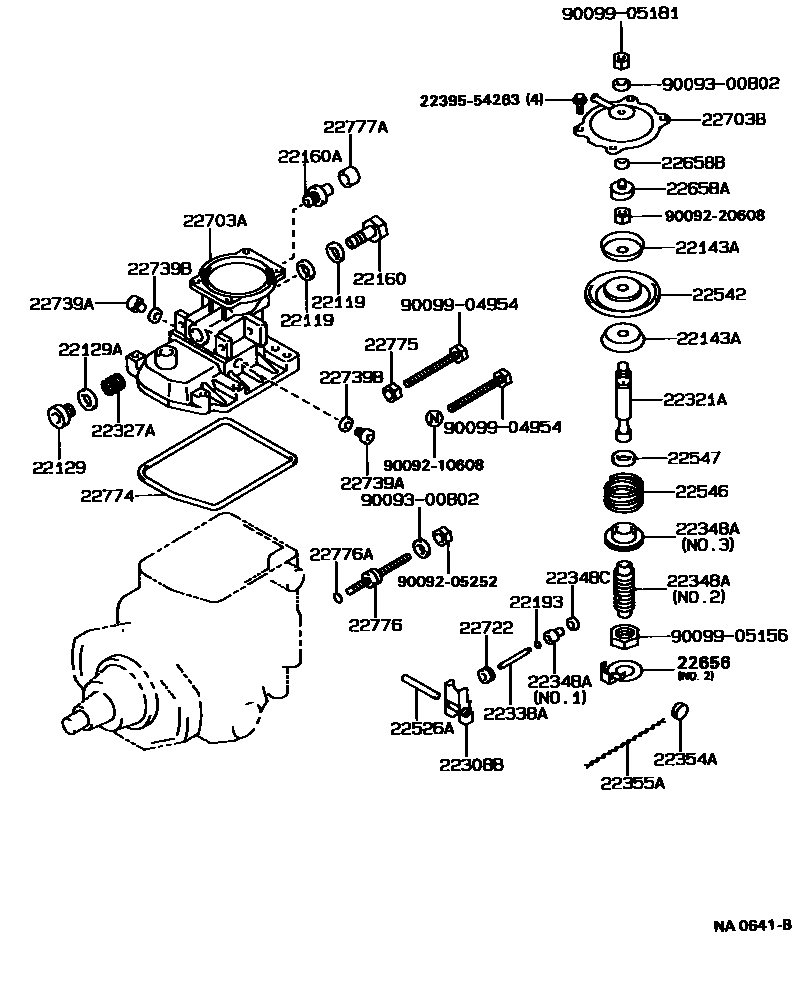

Toyota COROLLA 喷油泵体 — Figure 2203
Toyota COROLLA EPC diagram 2203, 喷油泵体, with 2 images and 105 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22019 | Fuel cut-off solenoid valve assembly | 22019-6A510 |
| 22101 | Fuel injection pump housing sub-assembly | 22101-54260 |
| 22101B | O-ring (for fuel injection pump housing) | 90099-14053 |
| 22104 | Fuel injection pump delivery valve sub-assembly | 22104-55160 |
| 22108A | Roller ring sub-assembly | 22108-54180 |
| 22119 | Bleed device oil nozzle gasket | 90201-12109 |
| 22128A | Distributor cover bolts | 22128-54010 |
| 22129 | Threaded plug | 22129-55110 |
| 22129A | Bleeder nipple washer (for threaded plug) | 90201-12109 |
| 22130 | Flat cam disc sub-assembly | 22130-55200 |
| 22140 | Distributor pump cover sub-assembly | 22140-5B270 |
| 22143 | Spring seat | 22143-54010 |
| 22143A | No. 2 spring seat | 22143-54260 |
| 22144 | pump plunger spring | 22144-54190 |
| 22145 | Spring lower seat | 22145-54010 |
| 22146D | Key (for driving gear) | 90099-13018 |
| 22147B | Governor cylinder liner sealing ring | 22147-54290 |
| 22148 | Oil delivery valve spring | 22148-54010 |
| 22149 | Delivery valve gasket | 22149-56200 · 22149-56351 |
| 22160 | Overflow screw sub-assembly | 22160-64010 |
| 22160A | No. 2 overflow screw sub-assembly | 22160-54262 |
| 22161A | drive shaft washer | 22161-54010 |
| 22162 | Plunger upper plate | 22162-54010 |
| 22163 | plunger lower plate | 22163-54010 |
| 22169 | Rubber universal joint | 22169-54180 |
| 22170 | Drive shaft sub-assembly | 22170-6A510 |
| 22170A | Key (for drive shaft) | 90099-13017 |
| 22176 | Distributor cap screw plug | 22176-54020 |
| 22176A | O-ring (for distributor cap screw plug) | 90099-14052 |
| 22178B | Bracket (for fuel injection pump assembly) | 22178-55041 · 22178-55200 · 22178-55210 |
| 22179 | plunger adjustment gasket | 22179-54010 · 22179-54011 · 22179-54012 · 22179-54013 · 22179-54014 · 22179-54015 · 22179-54016 · 22179-54017 · 22179-54018 · 22179-54019 · 22179-54020 |
| 22180 | Regulator valve sub-assembly | 22180-54010 |
| 22182 | Tappet adjustment shim | 22182-54010 · 22183-54010 · 22184-54010 · 22185-54010 · 22186-54010 · 22187-54010 · 22188-54010 |
| 22190 | Damping valve sub-assembly | 22190-6A290 |
| 22192 | Plunger spring guide sub-assembly | 22192-54010 |
| 22193 | O-ring (for connecting rod pin) | 22193-55031 |
| 22302 | Speed control shaft sub-assembly | 22302-55200 |
| 22305A | Idle speed boost sub-assembly | 22305-55200 |
| 22308B | Control lever sub-assembly | 22308-54120 |
| 22314A | Rod return spring | 22314-54010 |
| 22316A | governor sleeve | 22316-55120 |
| 22316B | Ball bearing (for governor sleeve) | 90099-10148 |
| 22321A | putter | 22321-55200 |
| 22322A | return spring | 22322-55040 · 22322-55201 |
| 22322B | Return spring (inner) | 22322-64740 |
| 22327A | Spring (for bellows) | 22327-55030 |
| 22338A | connecting rod pin | 22338-54120 |
| 22341C | governor driving gear | 22341-54010 |
| 22348A | Conduit bushing | 22348-54121 · 22348-54490 · 22348-64360 |
| 22348C | Gasket (for conduit bushing) | 90099-01473 |
| 22350A | Torque control governor assembly | 22350-55030 |
| 22354A | rod seal | 22354-77050 |
| 22355A | Governor housing sealing harness | 22355-78030 |
| 22378A | Governor Thrust Washer | 22378-64010 |
| 22384D | governor shaft | 22380-54020 · 22380-55180 |
| 22384E | O-ring (for governor spindle) | 90099-14049 |
| 22395 | Sleeve bolt (for fuel injection pump governor cover) | 22395-54010 · 22395-58200 |
| 22505 | Fuel supply pump sub-assembly | 22505-54010 |
| 22505A | Screw (for oil supply pump) | 90099-00723 |
| 22511A | Oil supply pump cover | 22511-58650 |
| 22526A | rod support pin | 22526-54120 |
| 22542 | Diaphragm (for enhanced compensator) | 22542-54260 |
| 22544 | Oil seal (for fuel injection pump drive shaft) | 22544-64740 |
| 22546 | Enhanced compensator spring | 22546-55030 |
| 22547 | Enhanced compensator gasket | 22547-54260 · 22547-54261 · 22547-54262 · 22547-54263 · 22547-54264 · 22547-54268 · 22547-64360 |
| 22548 | Rotary oil nozzle | 22548-55030 |
| 22582 | Timer piston assembly | 22582-55200 |
| 22602 | Fuel injection pump filter sub-assembly | 22602-56350 |
| 22611 | Timer round nut | 90099-05166 |
| 22612B | Timer cover | 22612-54010 · 22612-56350 |
| 22612C | Timer cover | 22612-17010 |
| 22612D | O-ring (for timing cover) | 90099-14051 · 90099-14105 |
| 22615A | Timer outer spring | 22615-55200 |
| 22625 | Timer sensor adjustment washer | 22625-54272 |
| 22632A | Fuel injection pump coupling | 22632-54010 |
| 22655A | Timer sliding pin | 22655-54010 |
| 22656 | Timer clip | 22656-54010 · 22656-54490 |
| 22657 | Timer clip | 22657-54010 |
| 22658 | Timer block | 22658-17010 · 22658-54010 |
| 22658A | Timer sliding block | 22658-64510 |
| 22658B | O-ring (for timer sliding stop) | 22193-54561 |
| 22659 | coupling spring | 22659-64150 |
| 22689 | Washer (for rotary grease nipple) | 22689-56350 |
| 22701 | Adjustment rod sub-assembly | 22701-55200 · 22701-55201 · 22701-55210 · 22701-55211 |
| 22703A | Speed governor cover sub-assembly | 22703-64361 |
| 22703B | governor cover | 22703-55031 |
| 22713 | Governor gear adjustment washer | 22713-54010 · 22714-54010 · 22715-54010 · 22716-54010 · 22717-54010 |
| 22722 | Governor shaft rocker nut | 22722-54120 |
| 22739 | Speed governor connecting rod bracket bolt | 22739-54020 |
| 22739A | No. 2 speed governor connecting rod bracket bolt | 22739-54120 |
| 22739B | Washer (for No. 2 governor connecting rod bracket bolt) | 22113-77090 · 22149-6D450 |
| 22740A | O-ring (for speed governor adjustment shaft) | 22193-54770 · 90099-14048 |
| 22741 | Advancer flyweight fixing part sub-assembly | 22741-54020 |
| 22745 | Distribution pump advancer fly hammer | 22745-54010 |
| 22751 | Fuel cut-off solenoid valve wiring harness sub-assembly | 22751-55200 · 22751-6A220 |
| 22753A | No. 1 advancer fly weight washer | 22753-54010 |
| 22753B | No. 2 advancer fly weight washer | 22753-54020 · 22753-54290 |
| 22774 | governor cover gasket | 22774-54010 · 22774-54270 |
| 22775 | Lock nut (for fuel injection pump) | 22775-77121 |
| 22776 | Smoke assembly adjustment screw | 22776-55030 |
| 22776A | O-ring (for smoke assembly screw) | 90099-14047 |
| 22777A | Rubber cap (for altitude compensation timing advance device) | 22777-6A640 |
| 22787 | governor bushing plug | 22787-54026 · 22787-54027 · 22787-54028 · 22787-54029 · 22787-54030 · 22787-54031 · 22787-54032 · 22787-54033 · 22787-64640 · 22787-64641 · 22787-64642 · 22787-64643 · 22787-64680 |
| 22790 | Timer cover sub-assembly | 22790-55200 |
| 22790A | O-ring (for timing cover) | 90099-14051 · 90099-14105 |
