Toyota COROLLA 喷油泵总成 — Figure 2202

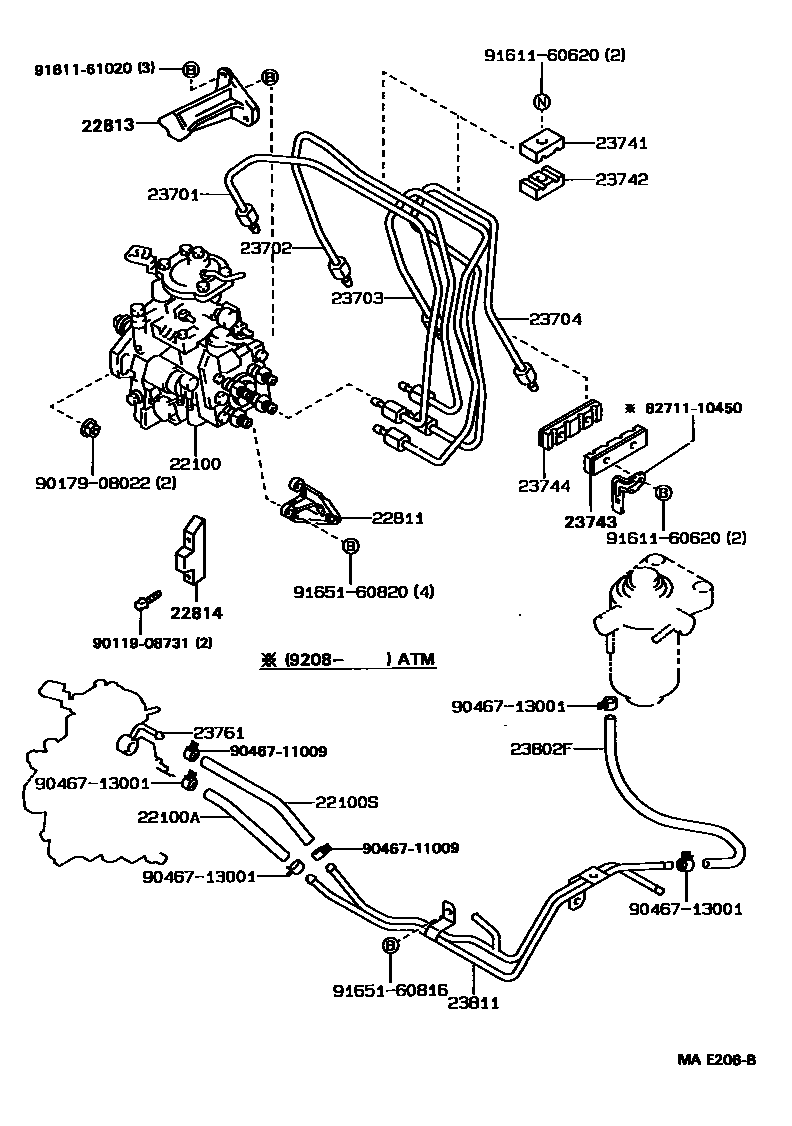

Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-55200 · 22100-55210 · 22100-55220 · 22100-55260 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 95333-08010 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23273-55010 |
| 22811 | No. 1 fuel injection pump bracket | 22811-55010 |
| 22813 | No. 1 fuel injection pump protection device | 22813-55011 |
| 22814 | No. 2 fuel injection pump protection device | 22814-55021 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-55010 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-55010 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-55010 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-55010 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-54010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-54010 |
| 23743 | No. 3 fuel injection pipe clamp | 23741-64020 |
| 23744 | No. 4 fuel injection pipe clamp | 23742-55010 |
| 23761 | No. 1 fuel injector overflow pipe | 23764-55010 |
| 23802F | fuel hose | 90447-14077 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-55030 |
