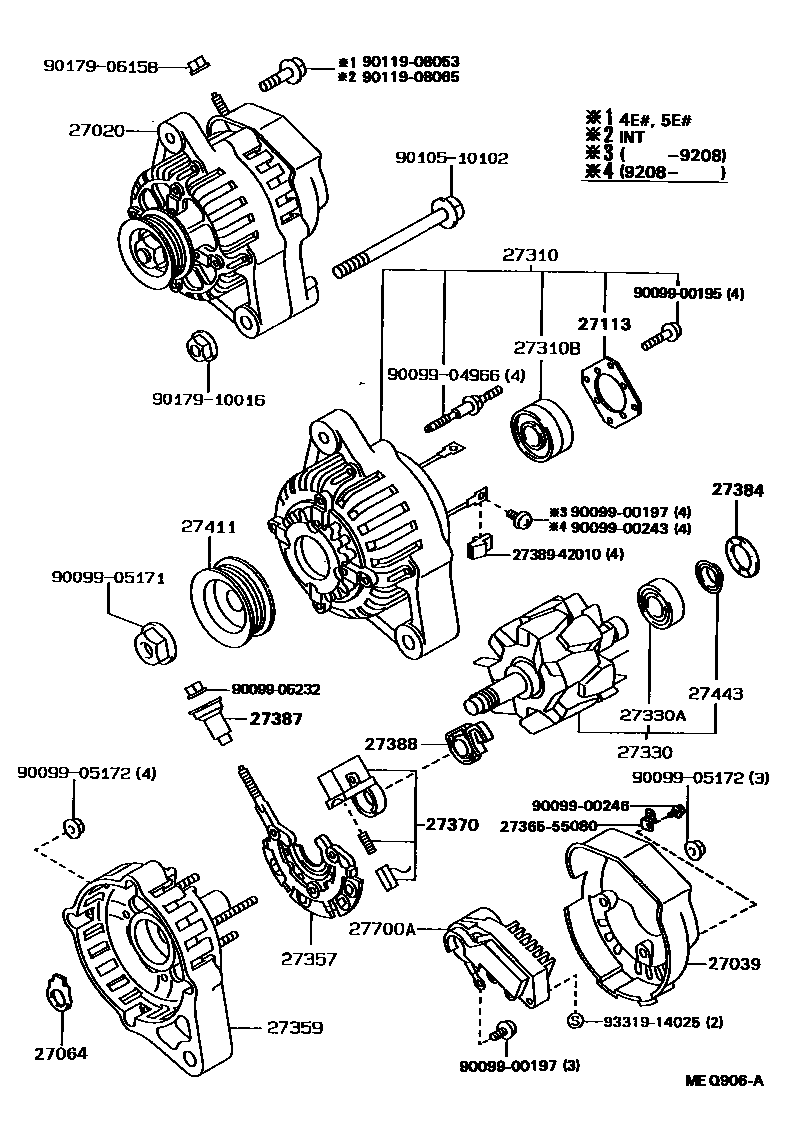

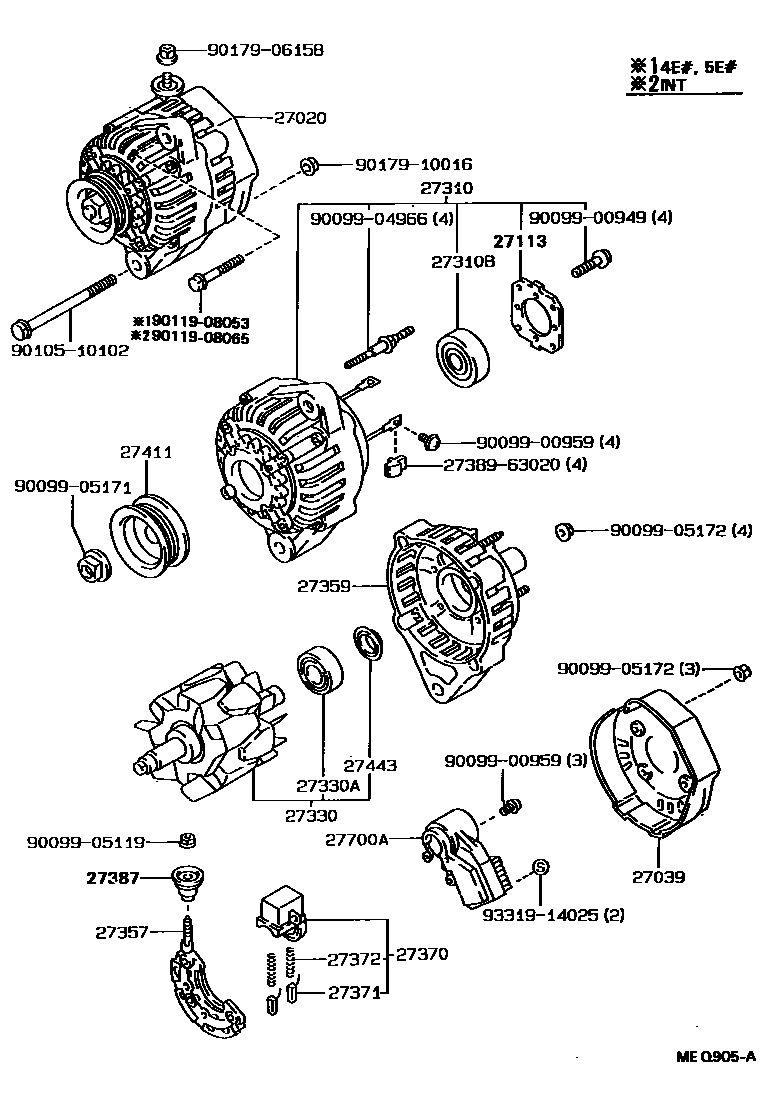

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-11120 · 27060-11200 · 27060-11270 · 27060-11280 · 27060-11281 · 27060-55040 · 27060-55050 · 27060-55070 · 27060-55080 |
| 27039 | Alternator Rear End Cover | 27039-42010 · 27039-55080 · 27039-72010 · 27039-73020 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27113 | Generator bearing block | 27312-42010 · 27312-70200 · 27312-72100 |
| 27310 | Alternator Drive End Frame Assembly | 27310-16011 · 27310-16102 · 27310-16103 · 27310-16270 · 27310-55040 · 27310-55050 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10159 · 90099-10160 · 90099-10178 · 90099-10192 · 90099-10199 |
| 27330 | Alternator Rotor Assembly | 27330-72101 · 27330-76030 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-55080 · 27357-62040 · 27357-63020 · 27357-74050 |
| 27359 | Generator rectifier end frame | 27359-16011 · 27359-16180 · 27359-16270 |
| 27370 | Alternator Brush Holder Assembly | 27370-16011 · 27370-35060 · 27370-42010 · 27370-54450 · 27370-63021 · 27370-70300 · 27370-75060 |
| 27371 | Generator brushes | 27371-63020 · 27371-70300 |
| 27372 | Generator brush spring | 27372-63020 |
| 27384 | Washer | 27384-42010 · 27384-50030 |
| 27387 | Terminal Insulator | 27387-42020 · 27387-70170 |
| 27388 | Generator brush cover | 27388-42010 |
| 27411 | Alternator Pulley | 27411-11060 · 27411-55010 · 27411-55040 · 27411-65010 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-11030 · 27700-11070 · 27700-65010 · 27700-70030 · 27700-74030 |
