Toyota COROLLA 分电器 — Figure 1902

Toyota COROLLA EPC diagram 1902, 分电器, with 2 images and 14 PNC and OE references.

Toyota COROLLA 分电器 EPC diagram — MAE320B
分电器 — MAE320B (199009 – 999999)

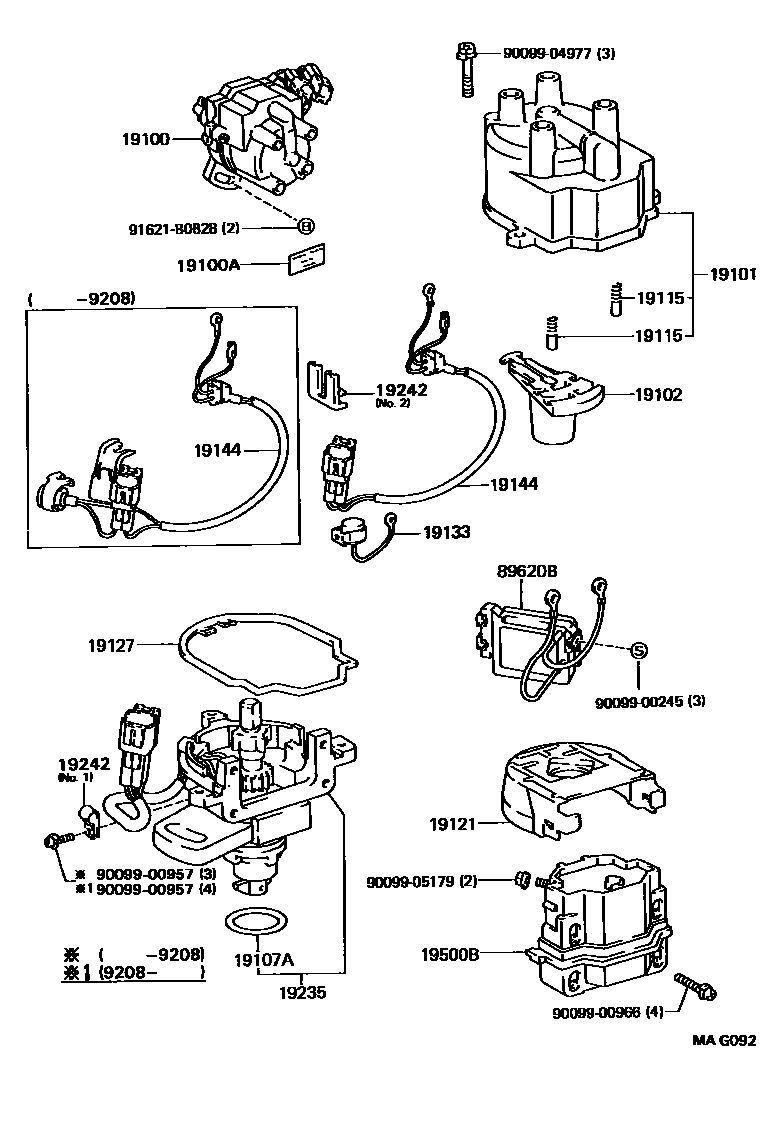

Toyota COROLLA 分电器 EPC diagram — MAG092
分电器 — MAG092 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19020-11270 · 19020-11340 · 19100-11080
19100Asealing tape90919-24004
19101Distributor cover sub-assembly19101-11060 · 19101-11080 · 19101-11240
19102Distributor flame head sub-assembly19102-11031 · 19102-74040
19107ADistributor housing O-ring90099-14088
19115Distributor cover center piece19115-63010 · 19115-88280
19121dust cover19121-11080
19127Dust seal19127-15120 · 19127-74040
19133Distributor capacitor19133-16240
19144Distributor breaker lead19144-11240 · 19144-11350
19235Distributor housing19235-11070 · 19235-11240 · 19235-11340
19242Cable clip19242-11190 · 19242-11350
19500BIgnition coil assembly90919-02164
89620BIgnition assembly89620-12410 · 89620-12420 · 89620-12440
