Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

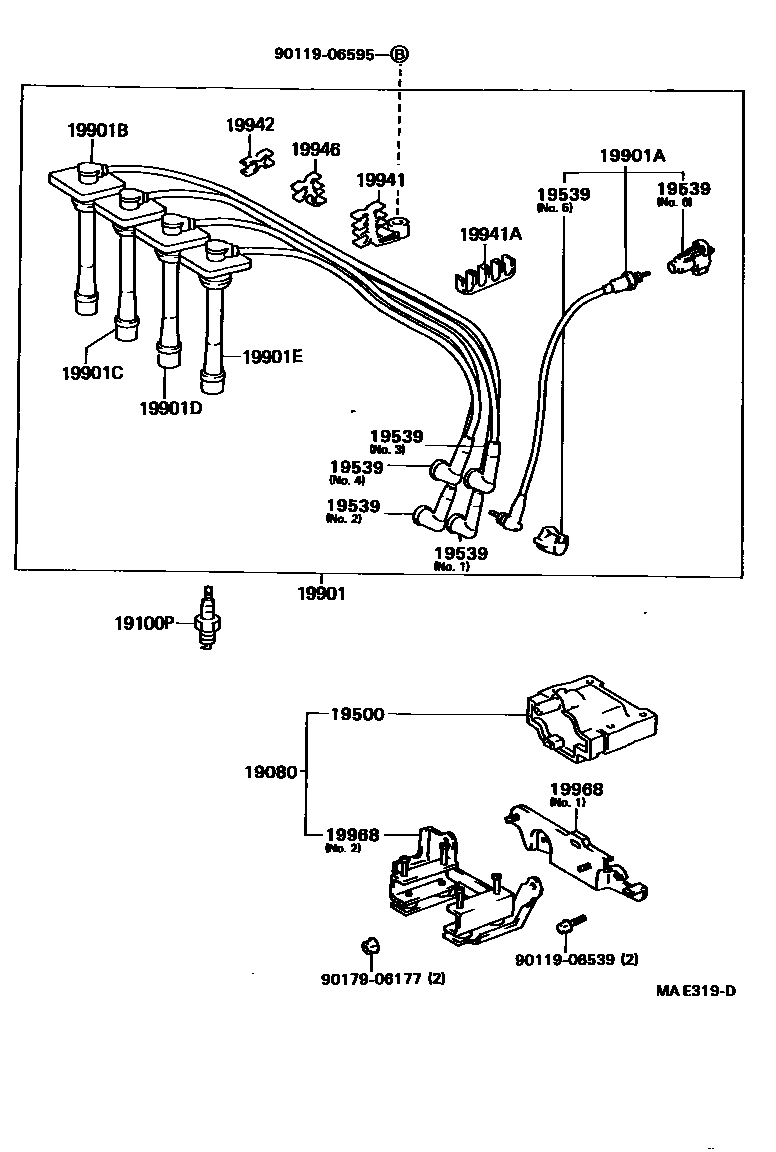

| 19080 | Coil assembly with bracket and wires | 19080-11010 |
| 19100P | spark plug | 90919-01164 · 90919-01184 |
| 19500 | Ignition coil assembly | 90919-02197 |
| 19539 | No. 4 damping wire fixing piece | 19531-74010 · 19539-11020 · 19539-11030 · 19539-46010 · 19539-50010 · 19539-70010 · 19539-74010 |

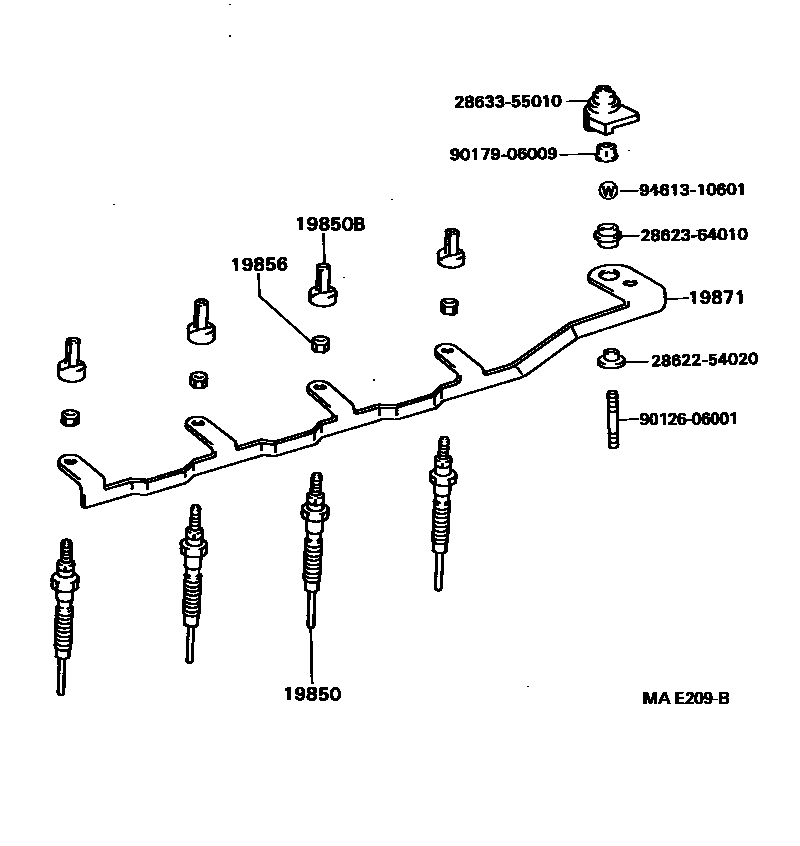

| 19850 | Glow plug assembly | 19850-54090 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19856 | Connecting nut (for glow plug) | 90170-04002 |
| 19871 | Glow plug connector No. 1 | 19871-55020 |

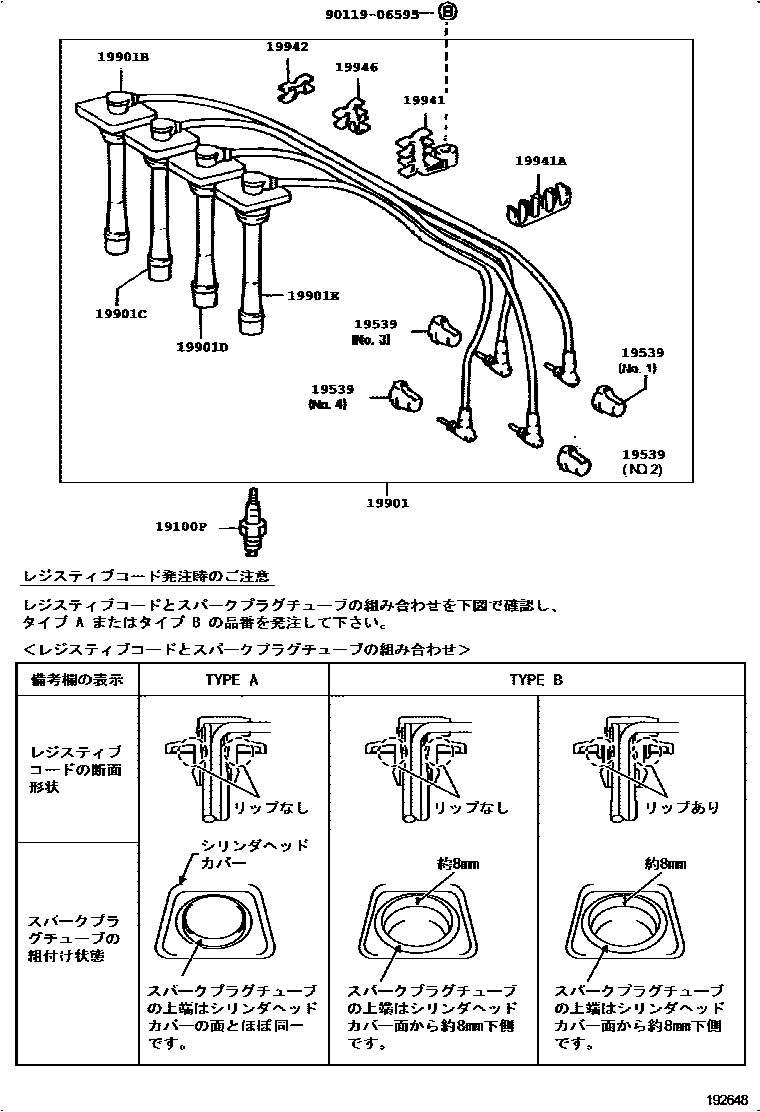

| 19901 | Coil and spark plug assembly with damper wire | 90919-21510 · 90919-21558 · 90919-22296 · 90919-22325 · 90919-22399 |
| 19901A | coil damping line | 19590-11010 |
| 19901B | No. 1 spark plug damper wire | 90919-15096 · 90919-15150 · 90919-15199 · 90919-15340 · 90919-15543 |
| 19901C | No. 2 spark plug damper wire | 90919-15097 · 90919-15151 · 90919-15200 · 90919-15341 · 90919-15544 |
| 19901D | No. 3 spark plug damper wire | 90919-15098 · 90919-15148 · 90919-15201 · 90919-15342 · 90919-15545 |
| 19901E | No. 4 spark plug damper wire | 90919-15099 · 90919-15149 · 90919-15202 · 90919-15343 · 90919-15550 |
| 19941 | No. 1 damping wire clip | 90929-01258 |
| 19941A | Clamp (for damping wire) | 90464-00559 |
| 19942 | No. 2 damping wire clip | 90464-00560 |
| 19946 | No. 3 impedance wire clip | 90464-00561 |
| 19968 | Ignition coil bracket | 19968-11010 · 19968-11020 |
