Toyota COROLLA vacuum tube — Figure 1708

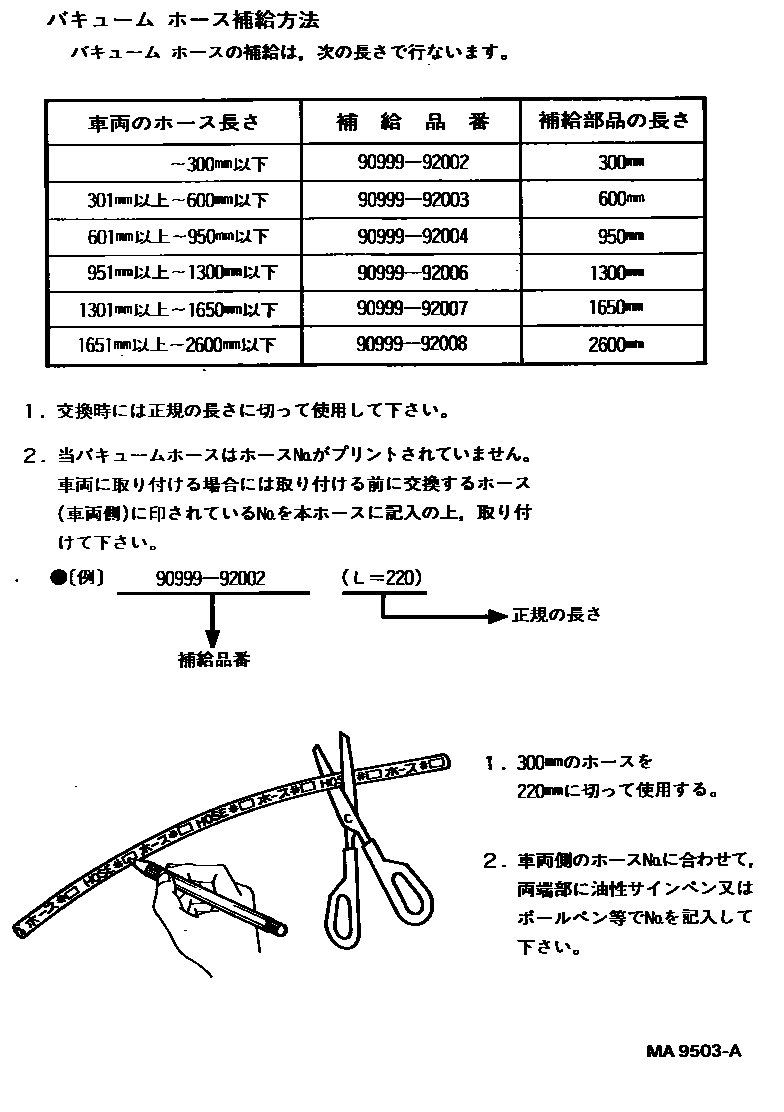

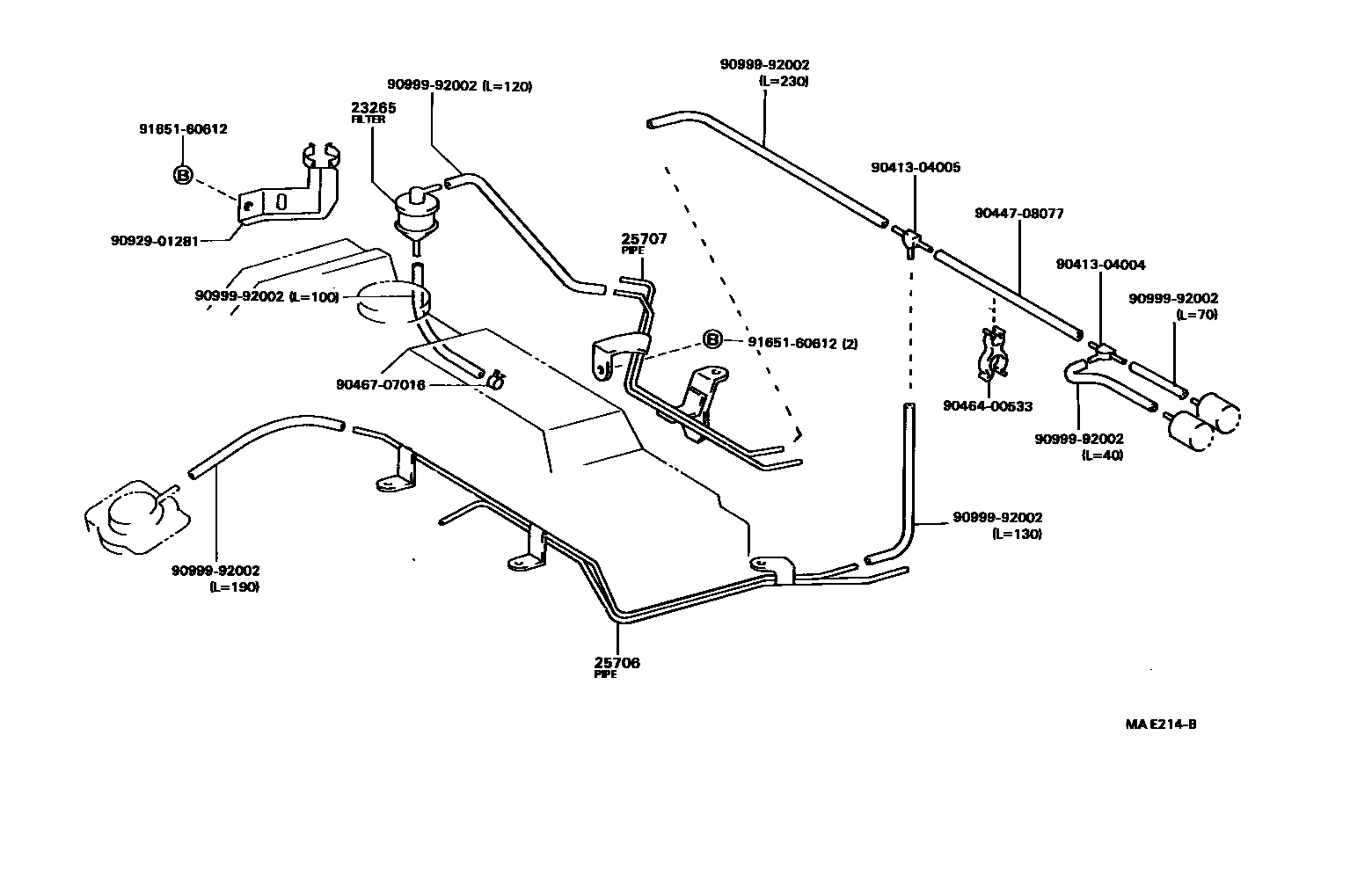

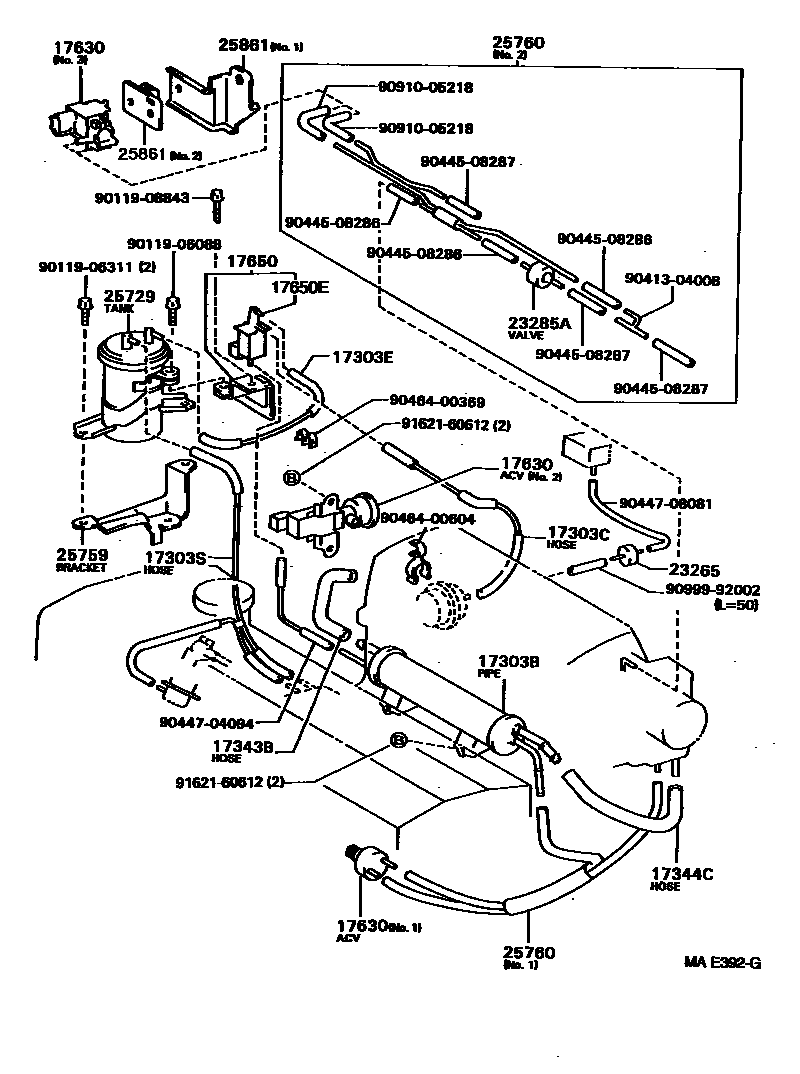

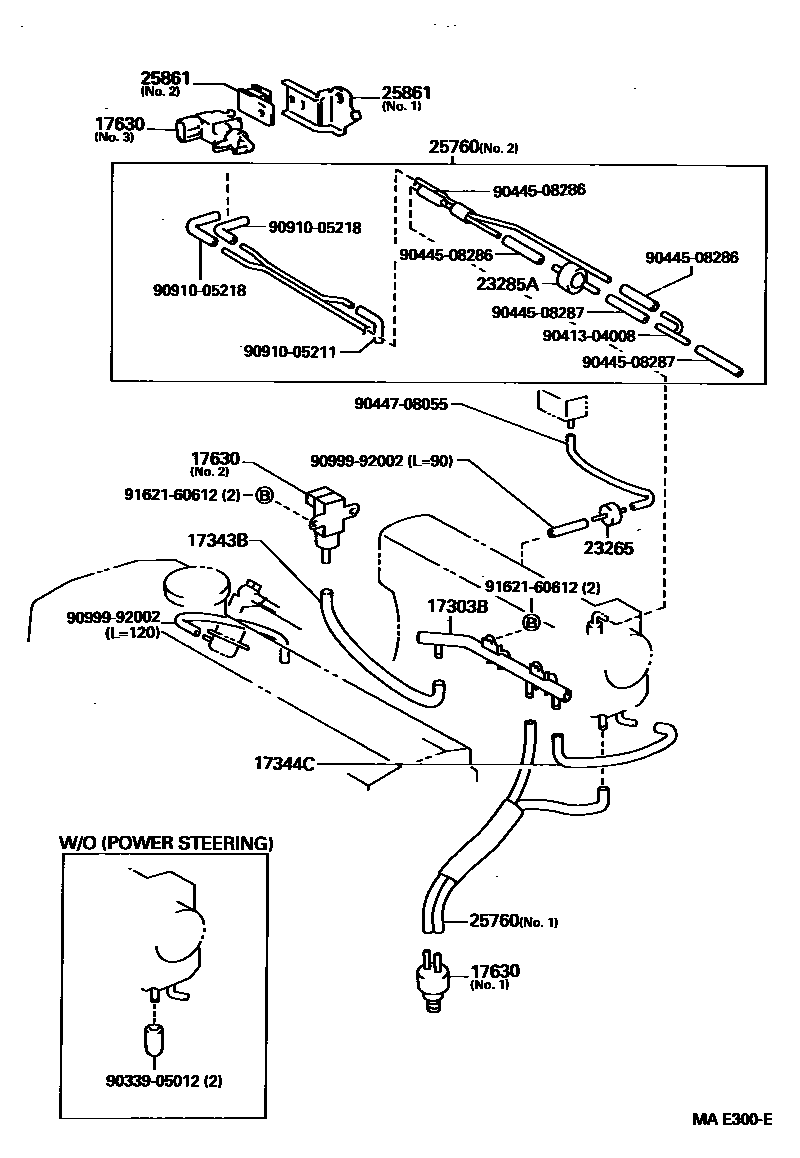

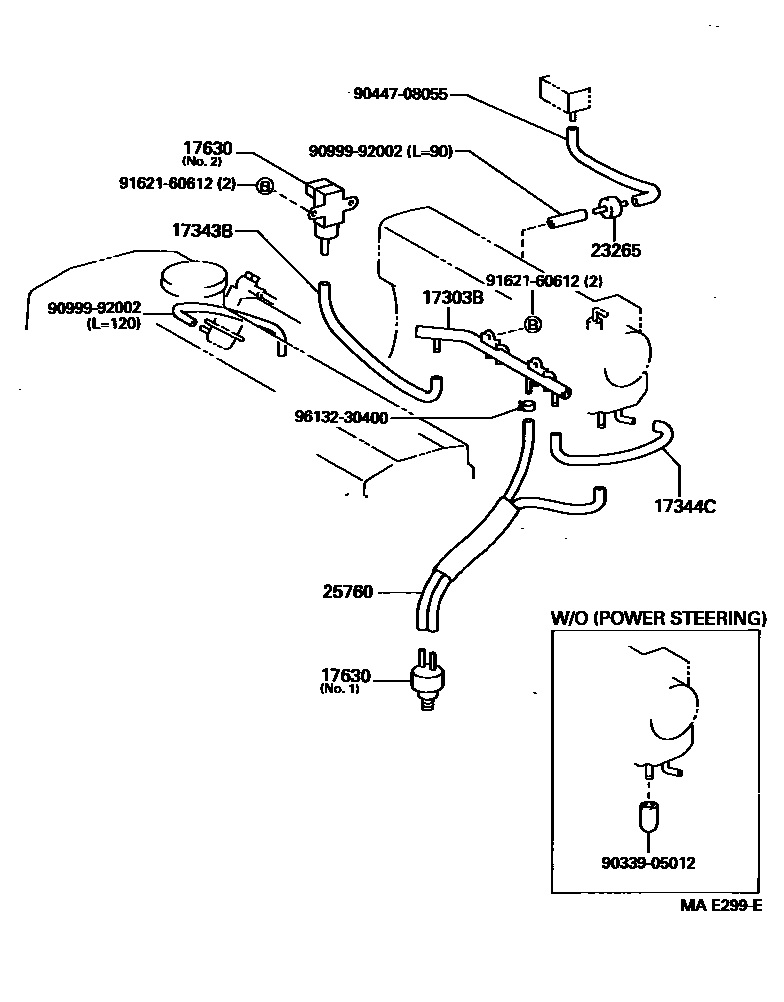

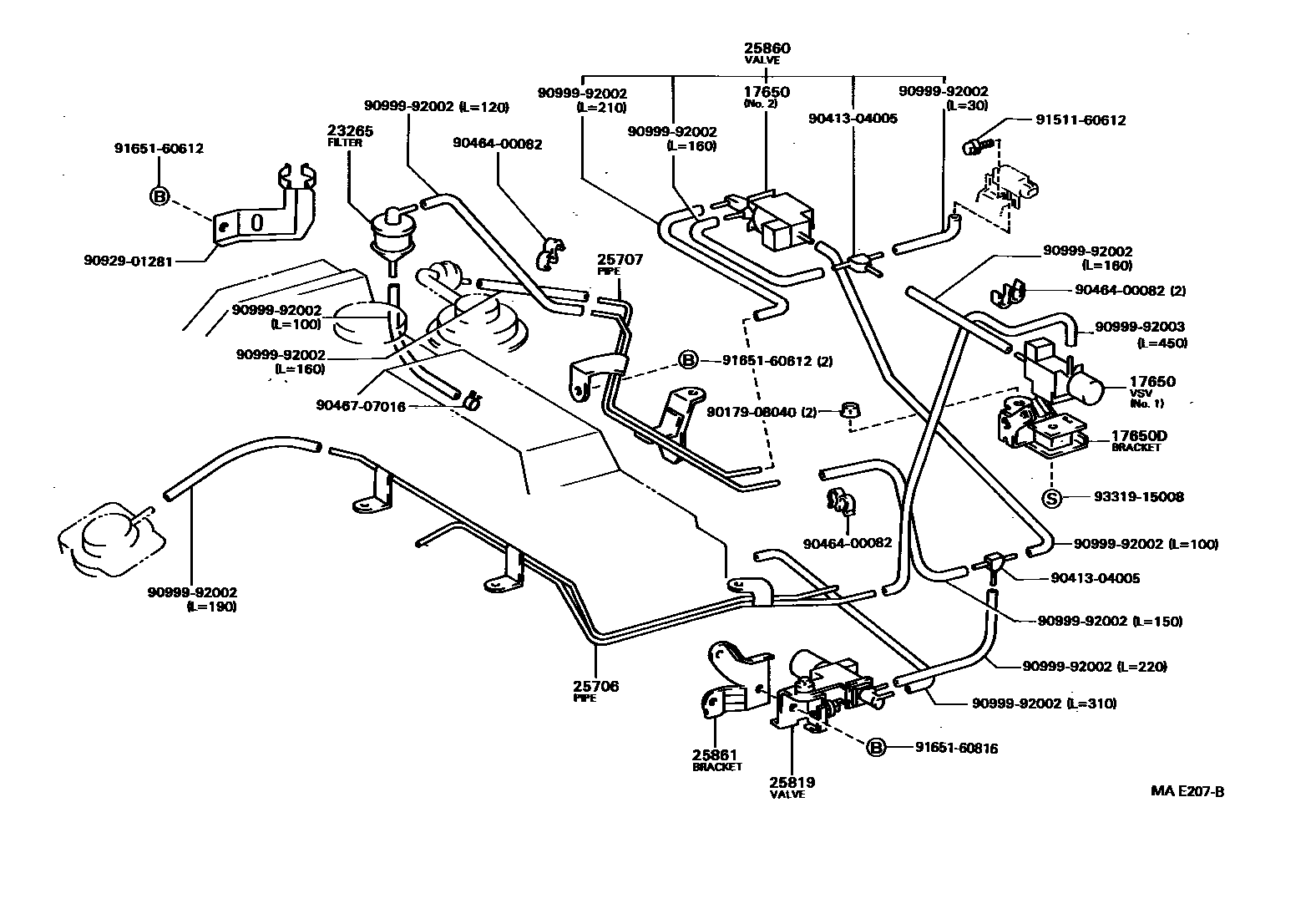

Toyota COROLLA EPC diagram 1708, vacuum tube, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-11400 · 17303-11401 · 17303-11610 |
| 17303C | No. 2 air pipe sub-assembly | 17303-11650 |
| 17303E | No. 1 hose (for air pipe) | 17303-11660 |
| 17303S | No. 3 air pipe sub-assembly | 17303-11670 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-11070 · 17343-11080 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-11030 · 17344-11050 |
| 17630 | Air control valve assembly | 17630-11040 · 17630-11041 · 17630-11050 · 17630-11060 · 90910-12106 · 90910-12121 |
| 17650 | Vacuum switch valve assembly | 25860-11180 · 90910-12043 · 90910-12059 |
| 17650D | Vacuum switch valve bracket | 25861-55010 |
| 17650E | Vacuum switch valve | 90910-12109 |
| 23265 | No. 1 gas filter | 90917-11009 · 90917-11030 |
| 23285A | No. 1 one-way valve | 90917-10080 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-55020 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-55010 |
| 25729 | Vacuum pressure tank with bracket | 25729-11010 |
| 25759 | Vacuum pressure tank bracket | 25759-11010 |
| 25760 | Vacuum transfer hose assembly | 25760-11090 · 25760-11110 · 25760-11161 · 25760-11171 |
| 25819 | Vacuum regulating valve assembly | 25819-55010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-55030 · 25860-55031 |
| 25861 | Vacuum switch valve bracket | 25861-11010 · 25861-55020 · 25862-11010 |
