Toyota COROLLA Air Cleaner — Figure 1703

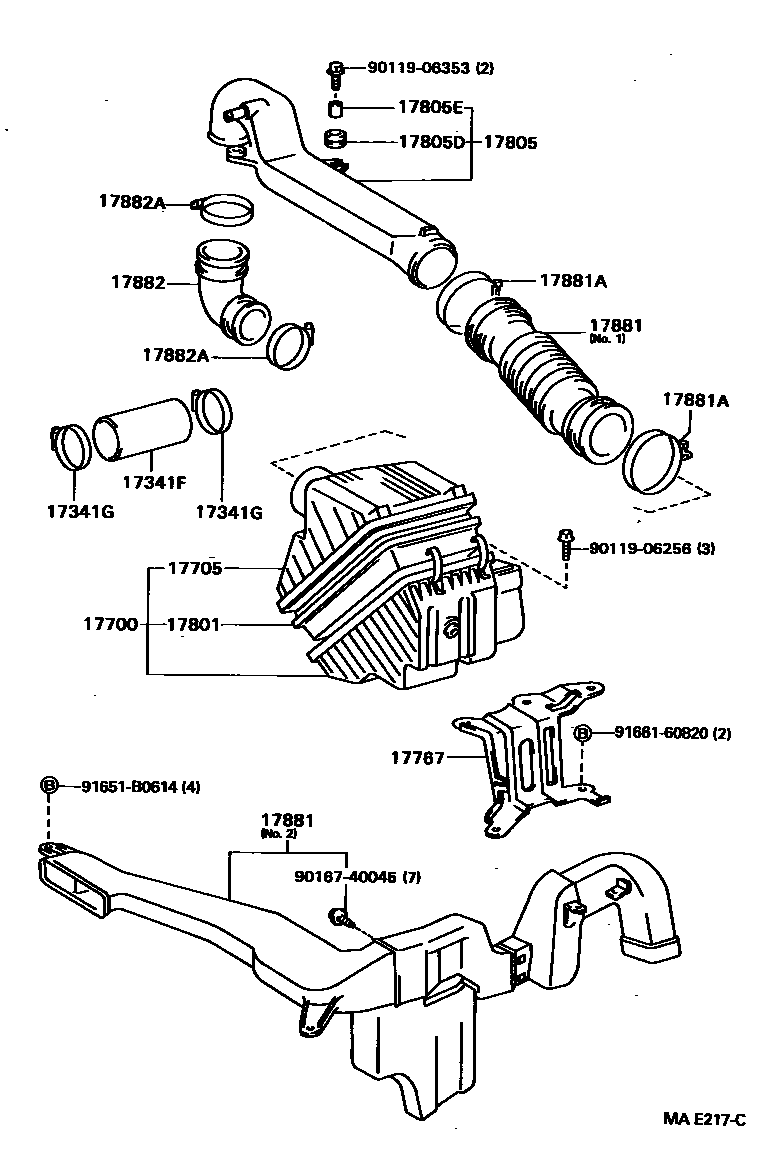

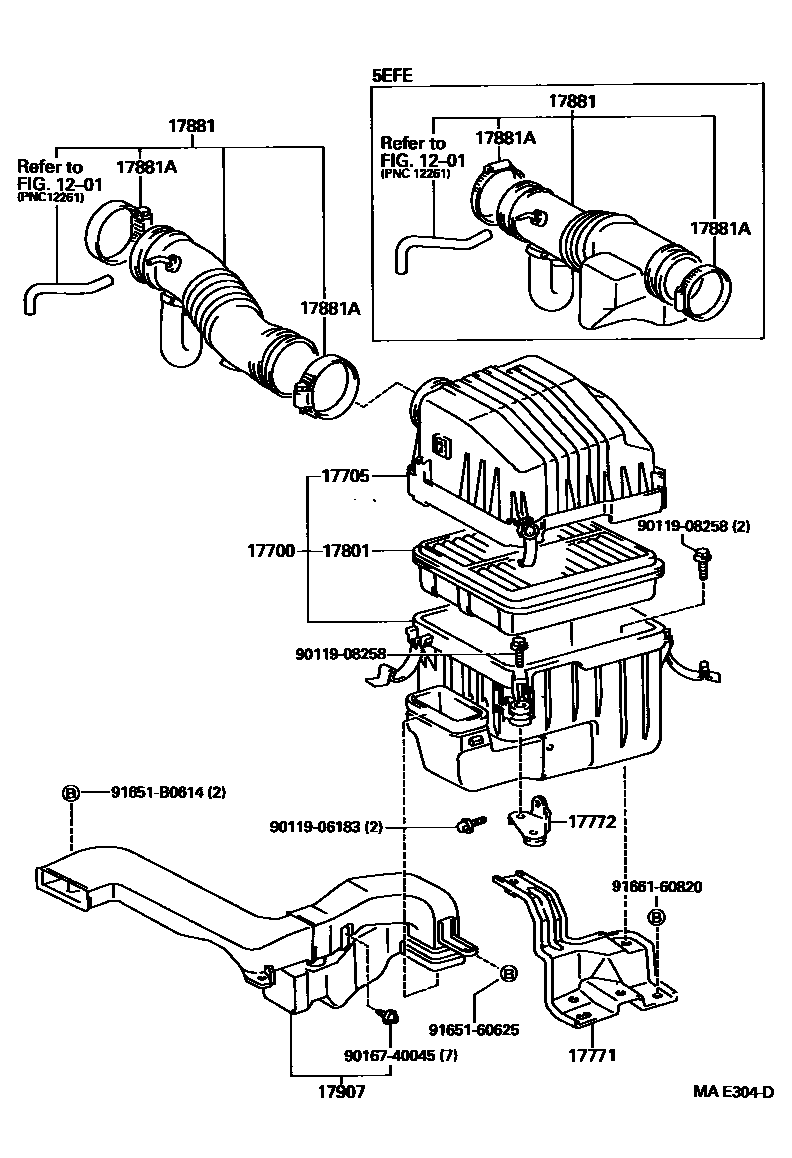

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341F | Air hose No. 1 | 17341-55010 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-50001 |
| 17700 | air filter assembly | 17700-11710 · 17700-11850 · 17700-55020 |
| 17705 | Air filter cover sub-assembly | 17705-11390 · 17705-11500 · 17705-55040 |
| 17767 | air filter bracket | 17771-55010 · 17771-55011 |
| 17771 | Air filter inlet pipe bracket | 17771-11100 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-11020 |
| 17801 | Air filter element sub-assembly | 17801-11050 · 17801-55020 |
| 17805 | Intake connecting pipe sub-assembly | 17860-55010 · 17860-55011 |
| 17805D | Gasket (for air intake connection pipe) | 90480-14015 |
| 17805E | Collar (for intake connecting pipe) | 90387-07016 |
| 17881 | No. 1 air cleaner hose | 17880-11070 · 17880-11080 · 17880-11110 · 17880-55040 · 17881-55050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-70003 · 96111-10690 |
| 17882 | No. 2 air cleaner hose | 17882-55040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-52003 · 90460-65004 |
| 17907 | Cold air inlet sub-assembly | 17880-11090 · 17880-11180 |
