Toyota COROLLA Exhaust Pipe — Figure 1702

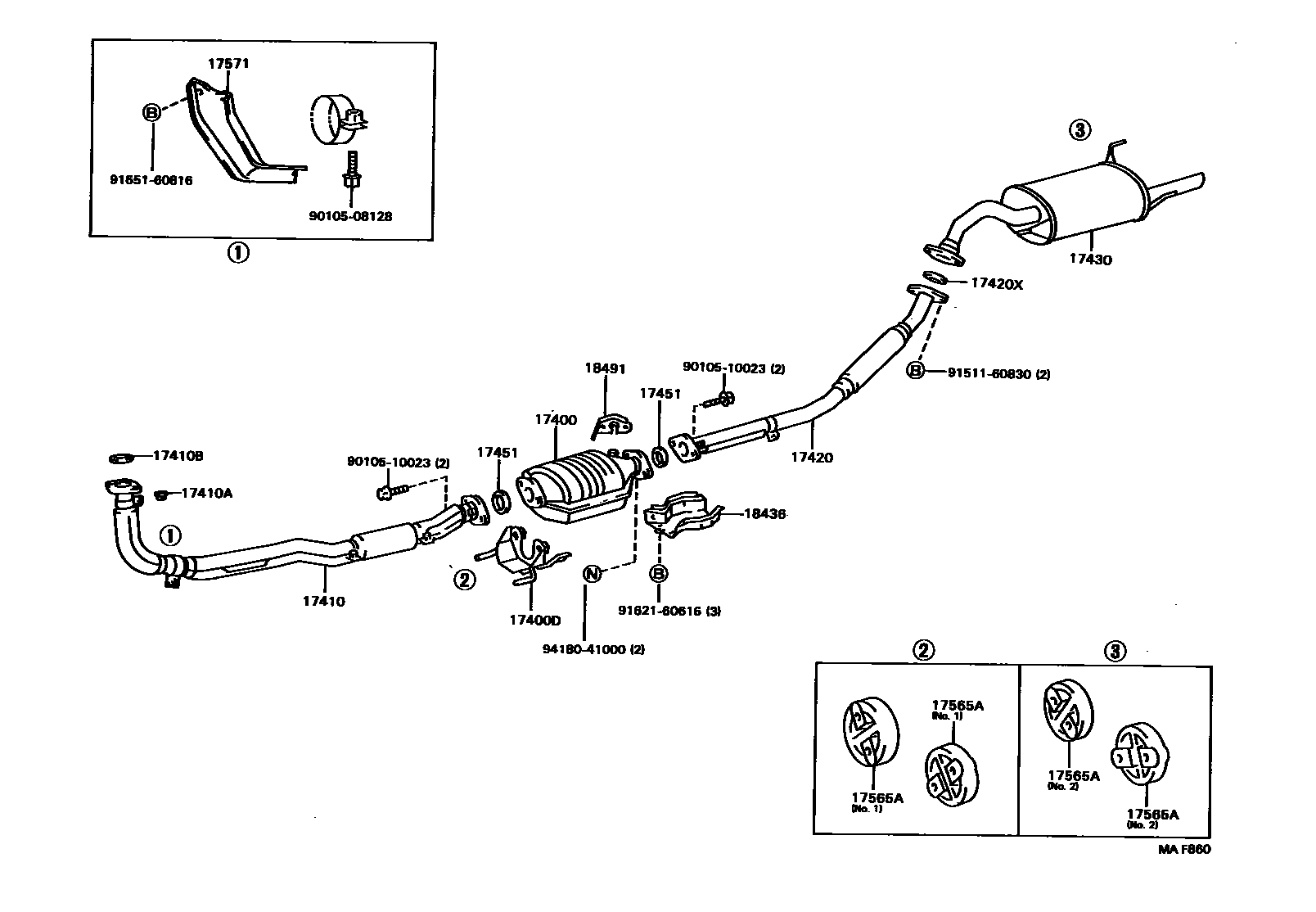

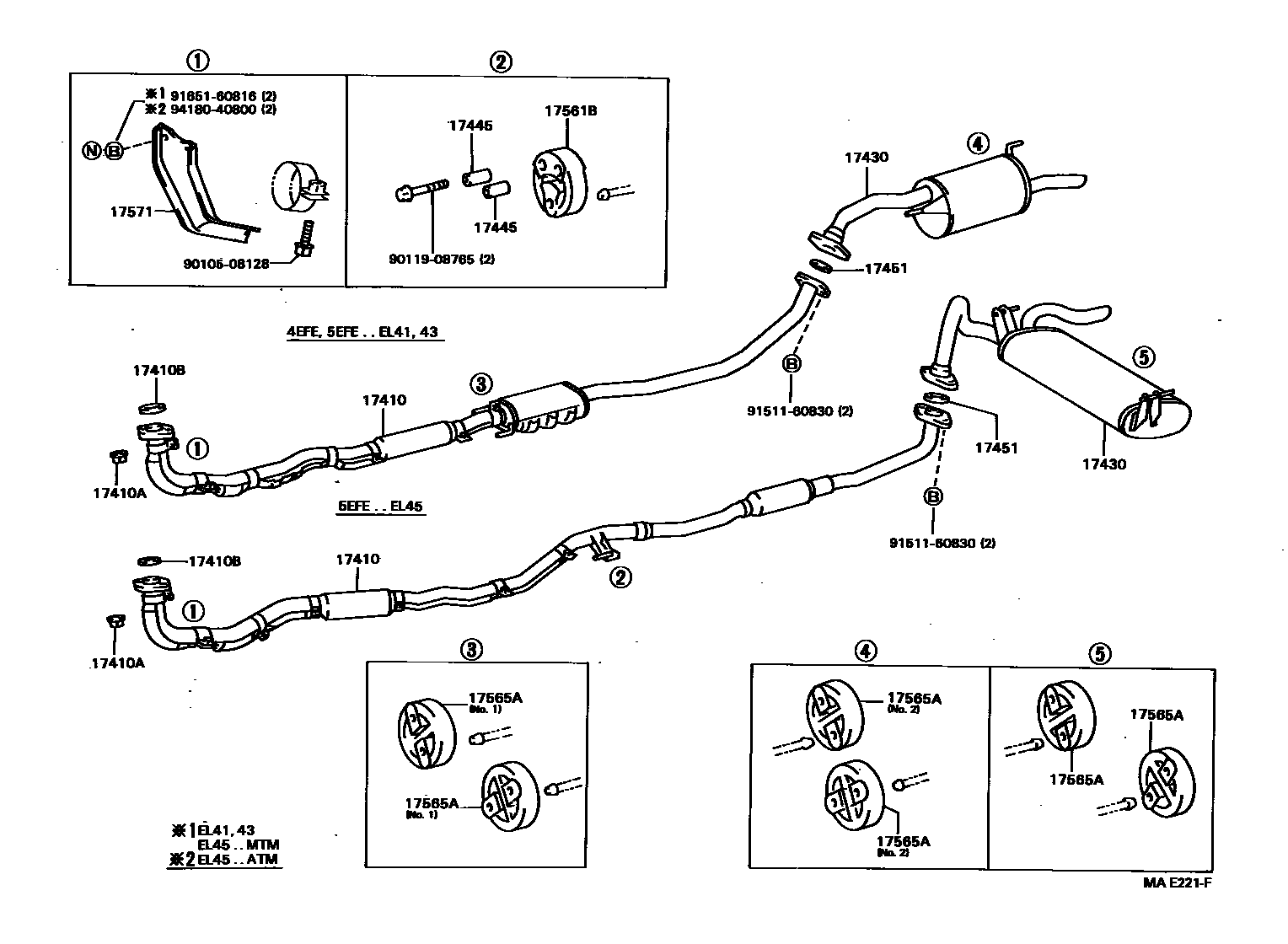

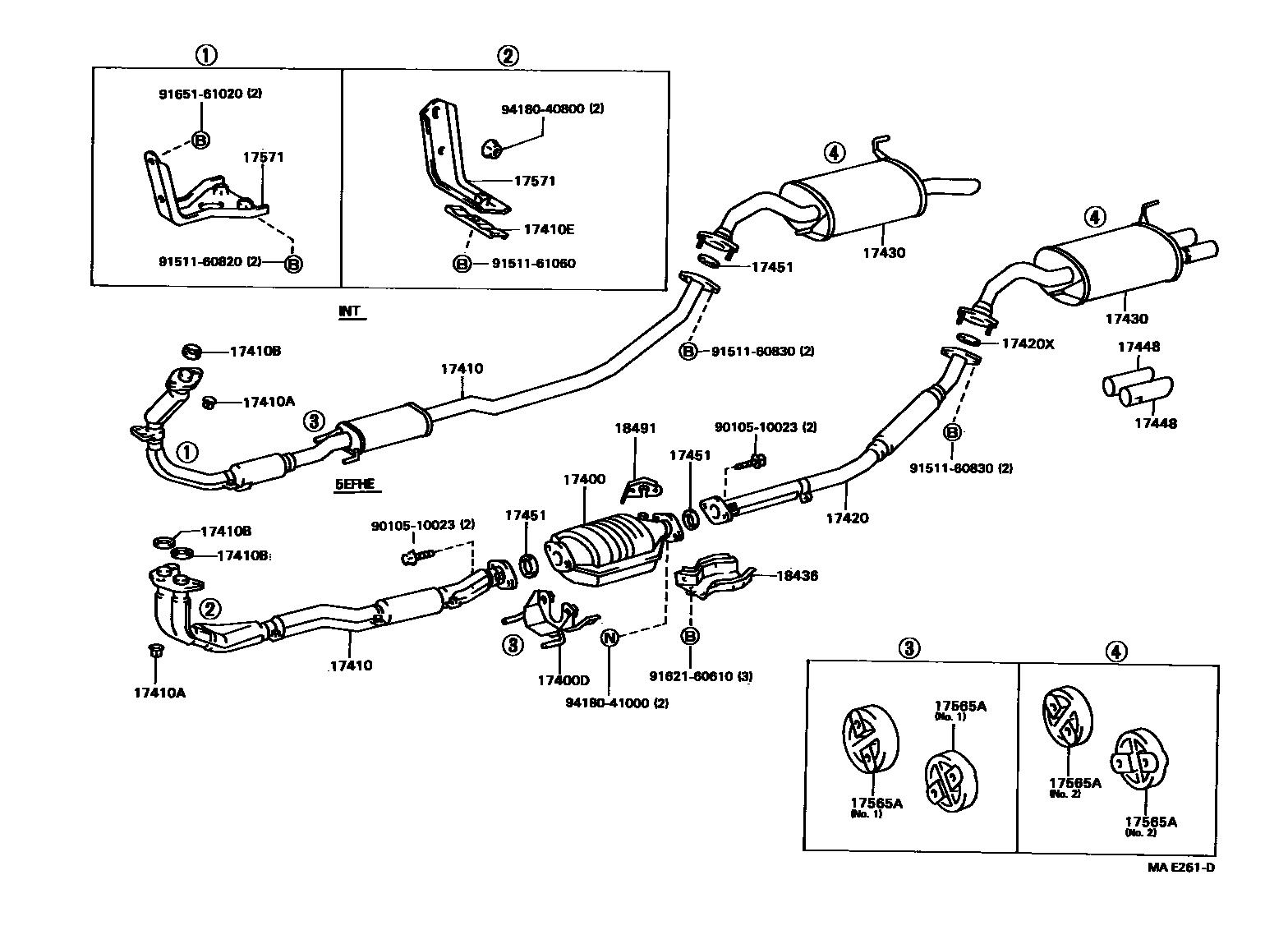

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-11130 · 18450-16240 · 18450-16410 |
| 17400D | Three-way catalytic converter bracket | 17503-11020 |
| 17410 | Front exhaust pipe assembly | 17410-11460 · 17410-11490 · 17410-11500 · 17410-11501 · 17410-11520 · 17410-11530 · 17410-11620 · 17410-11630 · 17410-55060 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06061 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04046 |
| 17420 | Central exhaust pipe assembly | 17420-11190 · 17420-11270 · 17420-11280 |
| 17420X | Center exhaust pipe liner | 90917-06039 · 90917-06060 |
| 17430 | Exhaust tailpipe assembly | 17430-11490 · 17430-11510 · 17430-11530 · 17430-11550 · 17430-11650 · 17430-11670 · 17430-55040 |
| 17445 | Exhaust pipe collar | 17445-11050 |
| 17448 | Exhaust pipe tail throat | 17448-43010 |
| 17451 | Exhaust pipe gasket | 90917-06039 · 90917-06044 · 90917-06060 |
| 17561B | No. 1 exhaust pipe lifting lug | 17561-74110 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11160 · 17565-16080 · 17565-74290 |
| 17571 | No. 1 exhaust pipe bracket | 17571-11020 · 17571-11130 · 17571-11150 · 17571-11160 · 17571-11170 · 17571-55010 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-63010 |
| 18491 | Thermal sensor air inlet flange | 18491-16010 · 18491-63010 |
