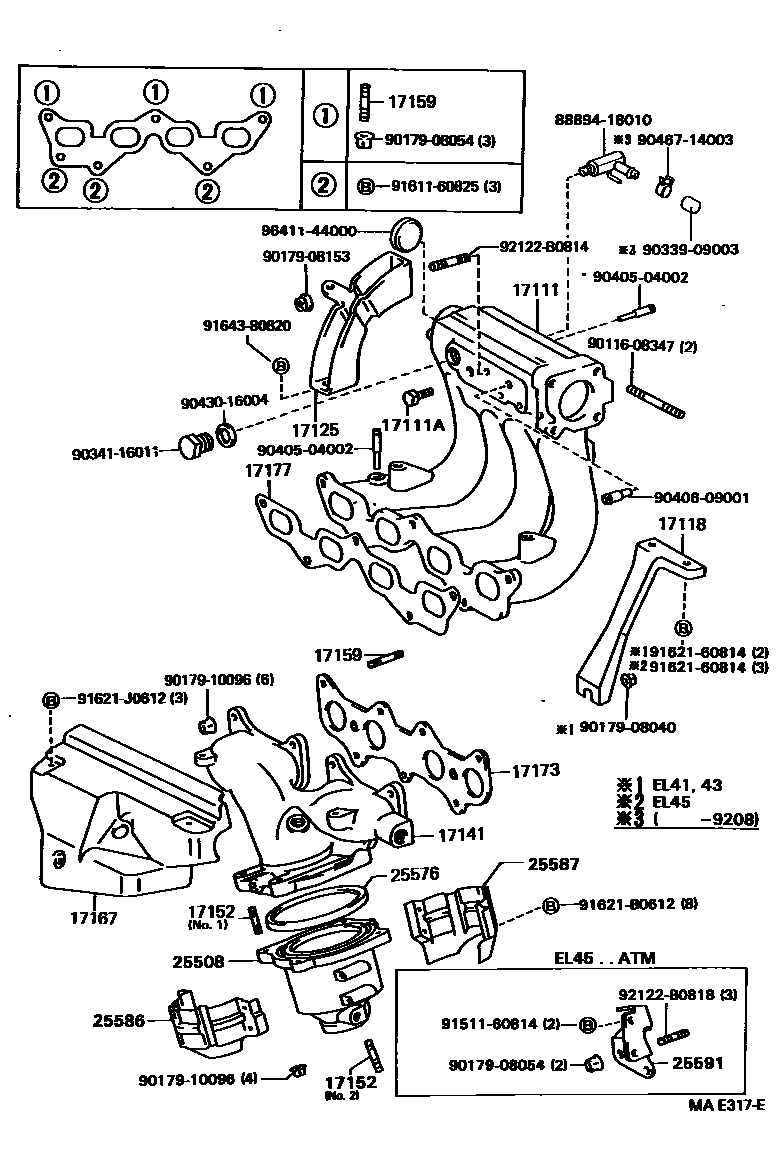

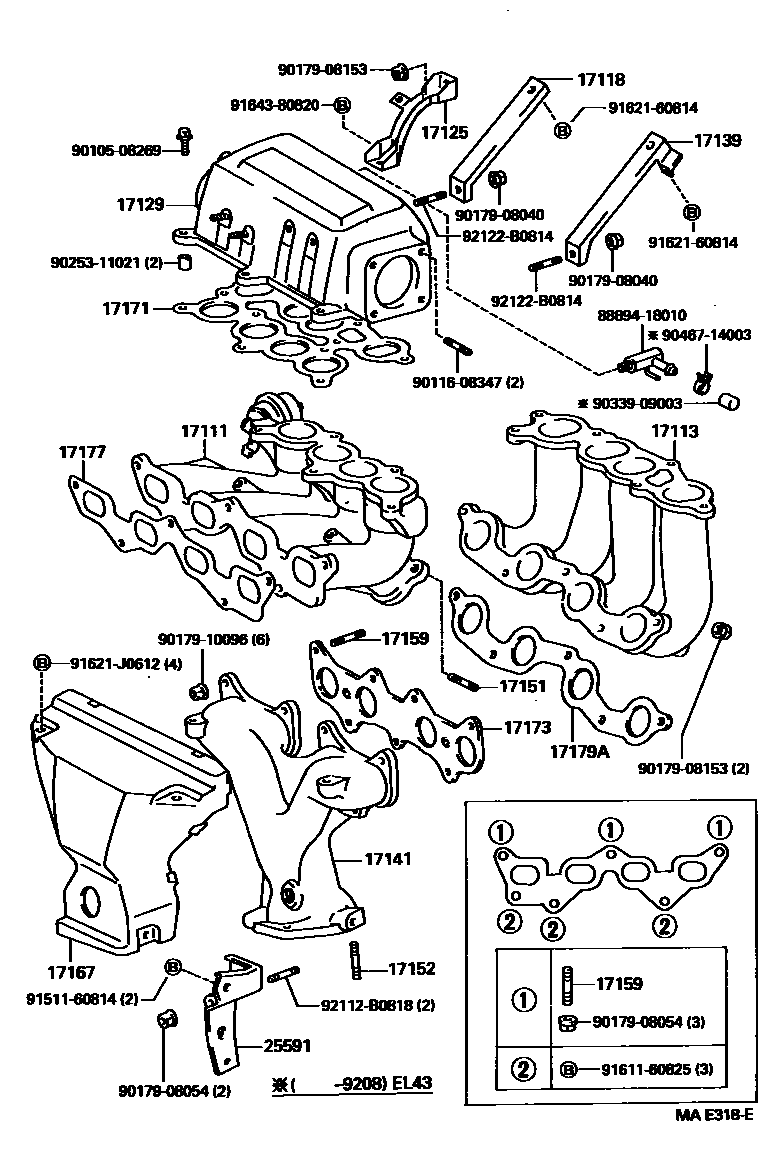

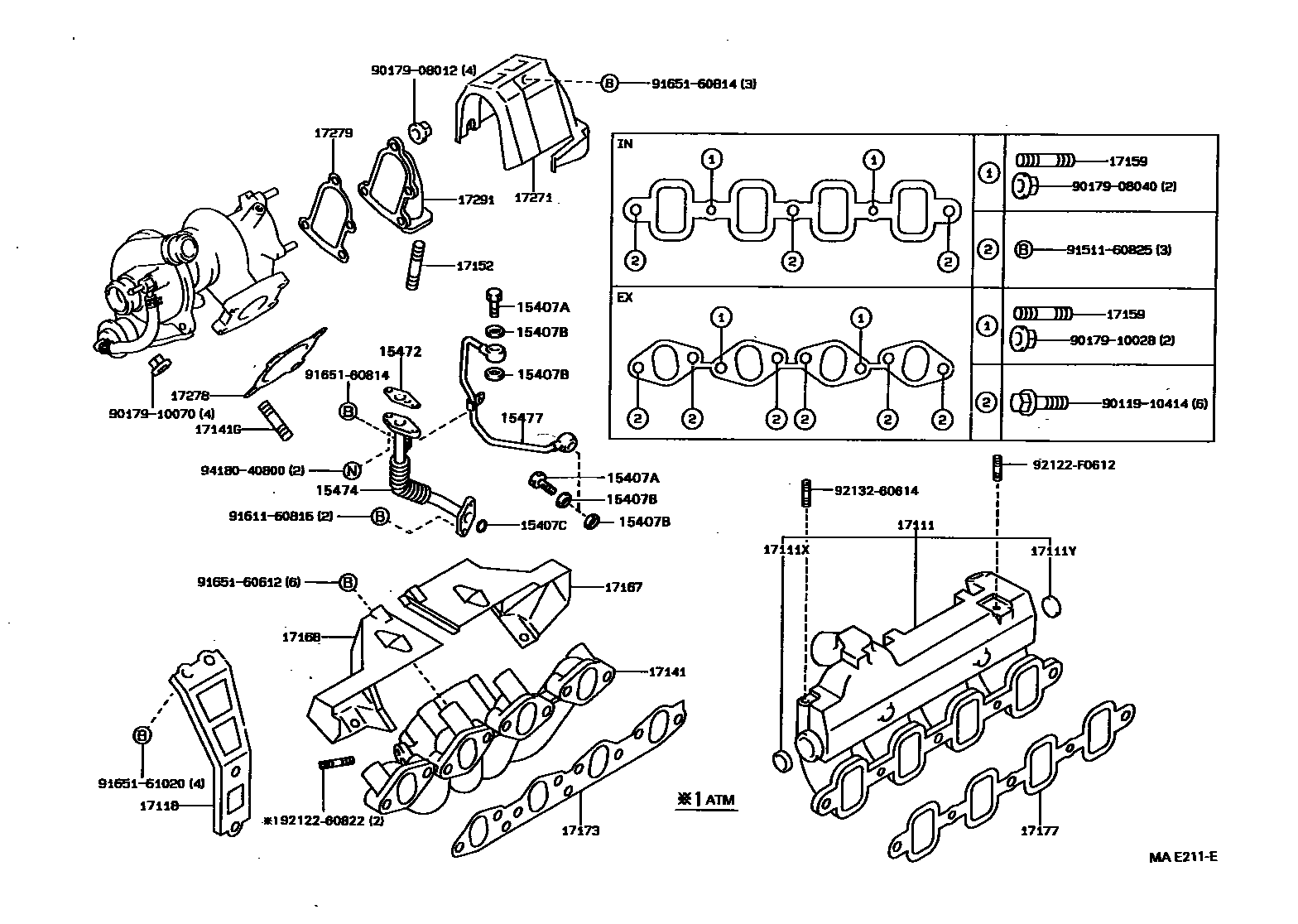

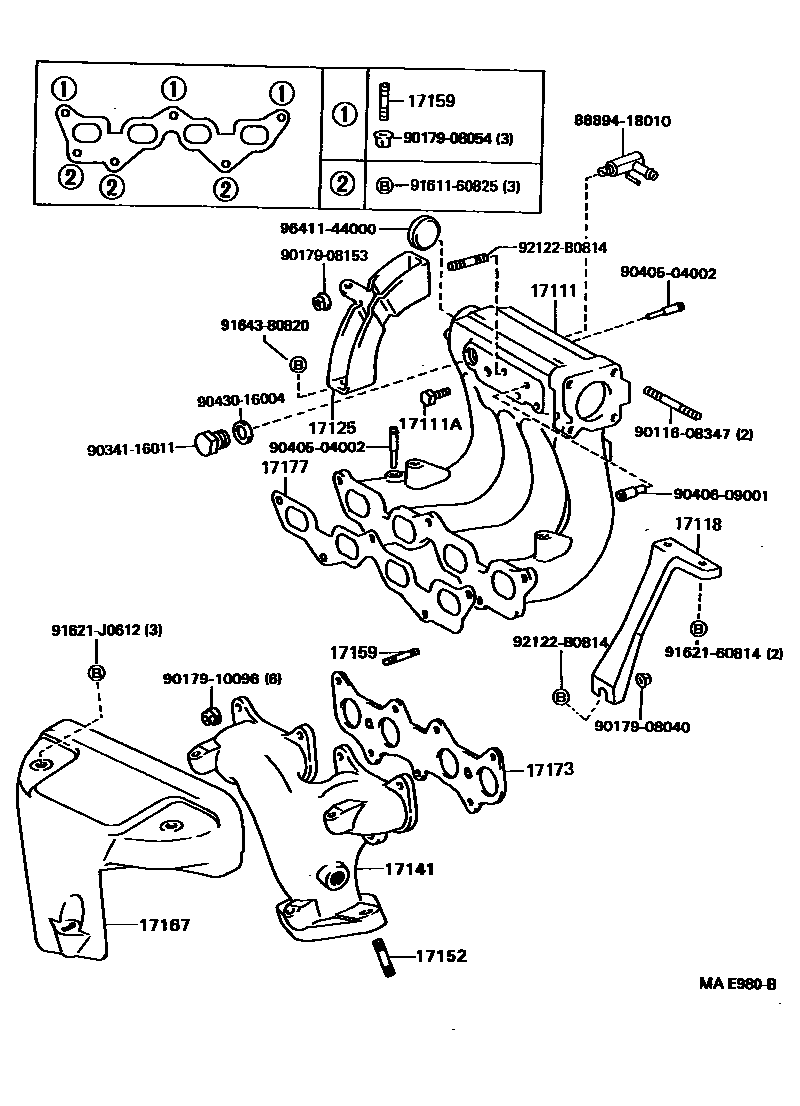

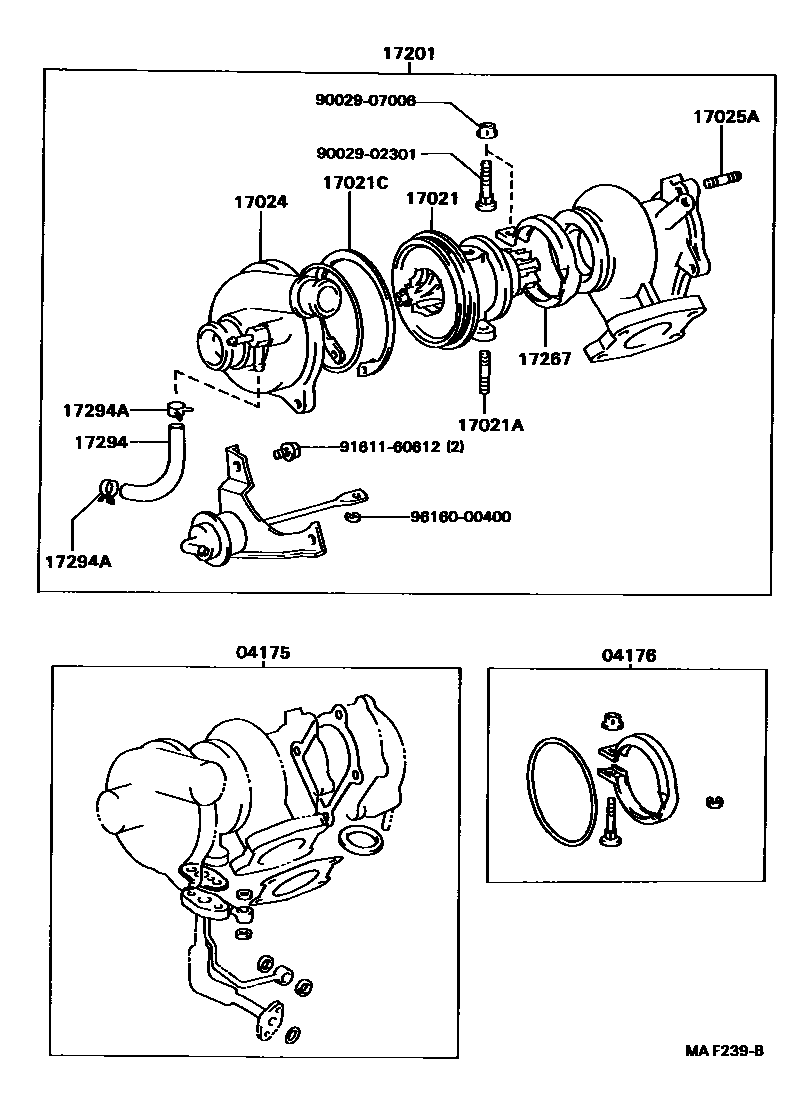

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 5 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-55020 |
| 04176 | Turbocharger seal assembly | 04176-55010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10035 |
| 15407C | O-ring (for turbine oil pipe) | 90301-23007 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-55010 |
| 15474 | Turbine oil outlet pipe | 15474-55010 |
| 15477 | Turbine oil inlet pipe | 15477-55010 |
| 17021 | Bearing shell sub-assembly | 17021-55030 |
| 17021A | Stud bolts (for bearing housing) | 92112-60822 |
| 17021C | Hole snap ring (for bearing housing) | 90029-52004 |
| 17024 | Compressor housing sub-assembly | 17024-55030 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 |
| 17111 | Intake Manifold | 17101-11230 · 17101-11231 · 17101-11260 · 17101-11261 · 17101-11290 · 17101-55030 · 17101-55040 |
| 17111A | No. 1 screw plug | 90345-51006 · 90345-51008 |
| 17111X | No. 1 sealing plug (for intake manifold) | 96411-42500 |
| 17111Y | No. 2 sealing plug (for intake manifold) | 96411-42800 |
| 17113 | intake pipe | 17113-11080 |
| 17118 | Manifold stays | 17118-11110 · 17118-11180 · 17118-11190 · 17118-11200 · 17118-55010 |
| 17125 | No. 1 pressure tank stay | 17125-11030 · 17125-11040 |
| 17129 | Intake pressure tank | 17109-11010 |
| 17139 | No. 2 manifold stay | 17139-11010 |
| 17141 | exhaust manifold | 17141-11170 · 17141-11201 · 17141-11270 · 17141-55030 · 17141-55040 |
| 17141G | Stud bolts (for turbocharger) | 90116-10087 · 90126-10003 |
| 17151 | Studs (for manifold to carburetor) | 92112-60820 · 92122-60820 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10087 · 90116-10179 · 90126-10003 |
| 17159 | Studs (for manifold to cylinder head) | 92112-61040 · 92122-60822 · 92122-61025 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-11210 · 17167-11220 · 17167-11240 · 17167-55010 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-55030 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-11010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-11040 · 17173-11050 · 17173-55010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-11020 · 17177-55012 |
| 17179A | No. 2 intake manifold gasket | 17179-11010 |
| 17201 | Turbocharger sub-assembly | 17201-55030 |
| 17267 | turbine coupling | 17267-55030 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-55011 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-55010 |
| 17279 | Turbine outlet elbow gasket | 17279-55011 |
| 17291 | Turbine oil outlet elbow | 17291-55010 |
| 17294 | Actuator hose | 90029-45001 |
| 17294A | Clamp (for actuator hose) | 96132-30600 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-11041 · 25508-11110 · 25508-11120 · 25508-11140 · 25508-11160 · 25508-11170 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-11020 · 25576-15020 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-11010 · 25586-11080 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-11010 · 25587-11060 |
| 25591 | Manifold bracket | 25591-11050 · 25591-11060 |
