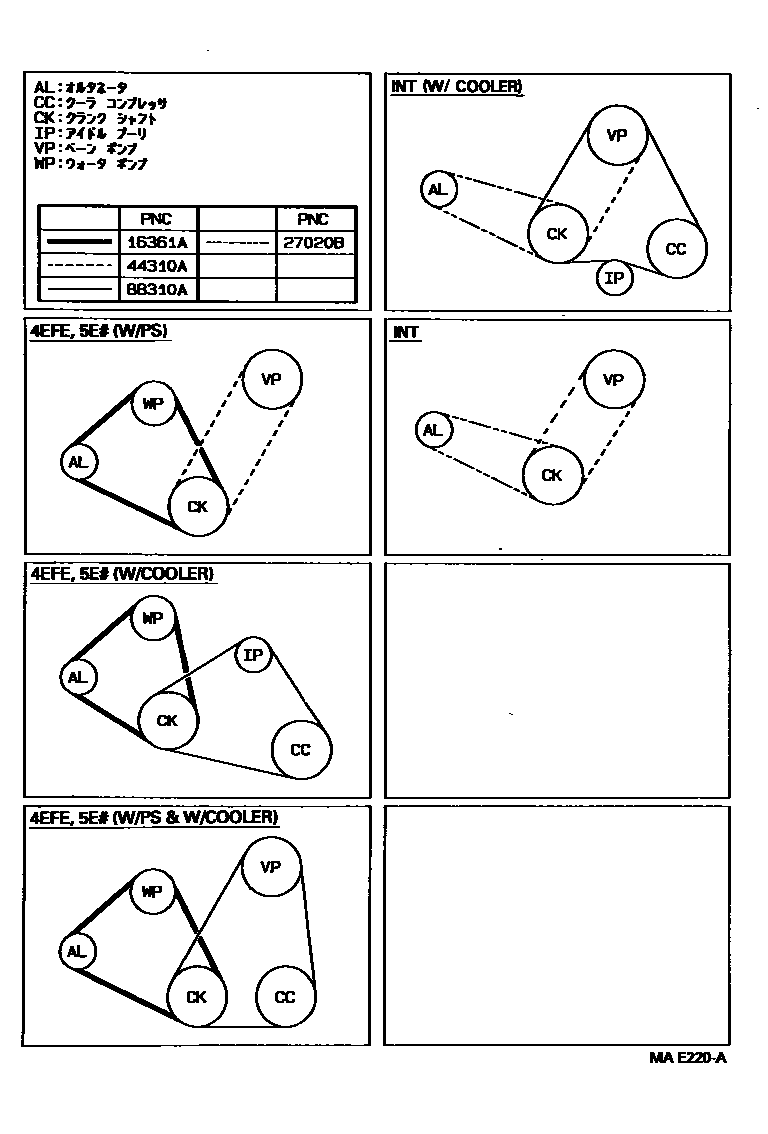

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02341 |
| 27020B | V-belt (for generator) | 90916-02273 |
| 44310A | V-belt (for vane pump) | 99364-00930 · 99364-00940 · 99365-50870 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02200 · 90916-02364 · 99364-00850 · 99364-01090 · 99364-01100 · 99364-20850 · 99364-21070 · 99364-21080 · 99364-21090 · 99364-71070 · 99364-71090 · 99364-71100 · 99364-80840 · 99364-81070 · 99364-81080 · 99364-81090 · 99365-20970 · 99365-20980 |
